Android (Classic Bluetooth support)
Alternative: Android or iOS (Bluetooth low energy support) version

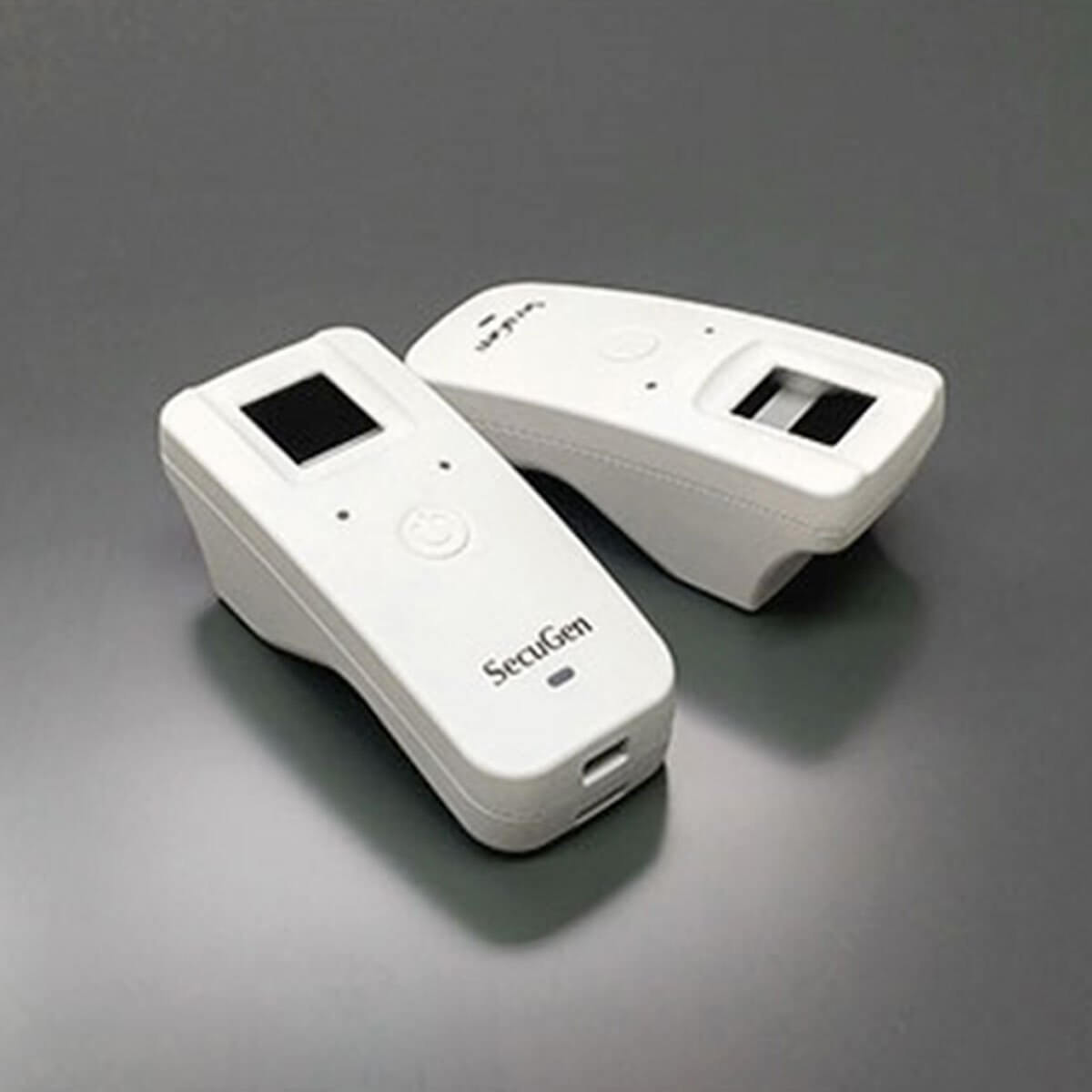

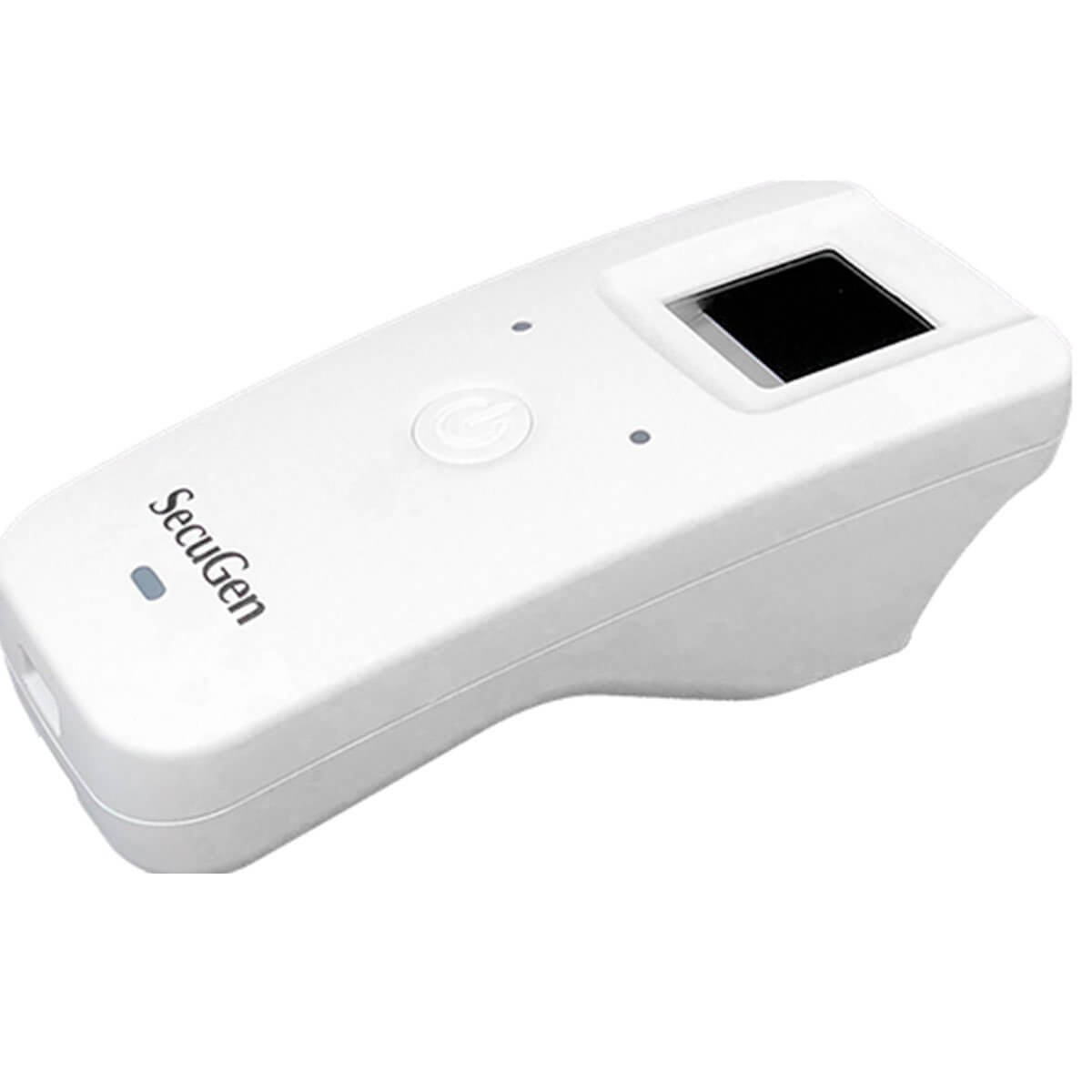

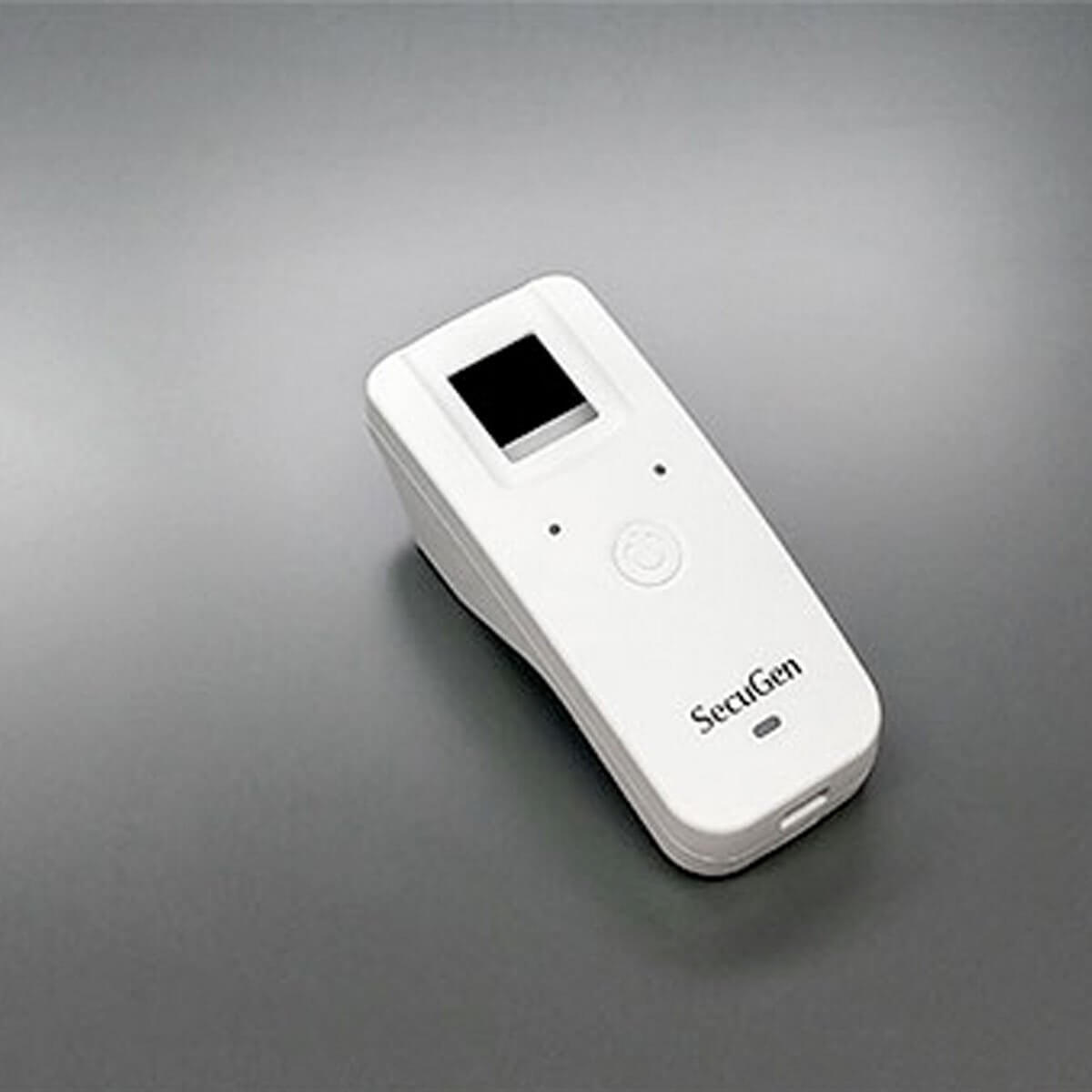

Unity 20 Bluetooth from SecuGen is the world’s first elegantly designed, low cost, fully programmable Bluetooth fingerprint reader. Featuring a sleek wireless design with a premium FBI certified fingerprint sensor, the Unity 20 Bluetooth can securely transfer fingerprint data wirelessly to mobile devices for convenient biometric authentication, identification and enrollment.
Thoughtful Design
Unity 20 Bluetooth can be used together with a mobile device (such as smartphone or tablet) to scan, enroll, and authenticate users without the need for cables or OTG adapters. The reader is built with the industry’s most rugged and patented optical fingerprint technology and yet is small enough to be carried in a pocket and held comfortably in one hand. It can also be used on the desktop with Bluetooth-enabled PCs. Thoughtfully designed, the device works in either direction so you scan your finger or another person’s finger without having to turn the device around.
For Developers
Developers can use Unity 20 Bluetooth also right out of the box by calling the built-in Fingerprint Management System (FMS) software’s simple API. Alternatively, the device can be custom programmed using its Linux development environment, its included MINEX-compliant fingerprint algorithms, OpenSSL cryptography libraries and 1 GHz CPU. The device can also store encrypted fingerprint templates and process them in a closed environment without their ever leaving the device for enhanced security.
Features
- FBI Certified (PIV, FIPS 201, Mobile ID FAP 20 Compliant)
- Bluetooth wireless connectivity for no-hassle, cord-free convenience
- Android (Classic Bluetooth support)
- High-performance, maintenance-free optical fingerprint sensor
- Rugged fingerprint sensor resistant to scratches, impact, vibration and electrostatic shock
- Auto-On™ – automatic finger detection technology
- Smart Capture™ – high quality fingerprint scanning of difficult fingers (dry, wet, scarred) in challenging environments and conditions such as under direct sunlight
- Ultra-compact, lightweight and portable
- Rechargeable lithium ion battery and micro USB cable for charging
- Dual direction finger guide: for self-use or to scan other users by an administrator
- Readily accessible for any finger
- Fast and accurate verification
- Latent print image removal (does not accept prints left behind)
- Encryption of fingerprint templates (with SecuGen Proprietary templates)
bioCOLLECT App Users
- All bioCOLLECT App Users: Fulcrum highly recommends using the scanner as the preferred scanner for the bioCOLLECT app. It is more versatile and functional across all IOS, Android, and Windows platforms. The fingerprint scanner has also been certified by the FBI to meet the PIV specification.
Tech Specs
Name (Model)
| HU20-ASF-BT |
Fingerprint Sensor
| U20-A / U20-ASF-BT |
User Capacity
| Up to 700 users (1,400 templates) |
Image Resolution
| 500 DPI |
| Image Size | 300 x 400 pixels |
| Platen Size | 18.2 mm x 22.9 mm |
| Sensing Area | 15.2 mm x 20.3 mm |
| Image Gray Scale | 256 levels (8-bit) |
| Light Source | LED |
| Smart Capture Speed | 0.2 ~ 0.5 seconds |
| Biometric Standards/Specs | INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, FIPS 201, FBI (PIV, Mobile ID FAP 10), NIST MINEX, WSQ |
| Dimensions | 45.2 mm x 103.3 mm x 36.7 mm |
| Weight | 90 g |
| Bluetooth | Class 2 Module Dual-mode Bluetooth / Low Energy (BLE) radio Fully qualified Bluetooth 4.0 Supports 802.11 coexistence |
| Battery | Rated Capacity: 1000 mAh
Internal Resistance: ≤70 mΩ
Voltage: 4.2 V (charged), 2.75 V (discharge cut-off) |
| USB Interface | For charging |
| Temperature | Operating: -10°C ~ 60°C Charging: 10°C ~ 45°C |
| Operating Humidity | 90% or less RH, noncondensing |
| Supply Voltage | Built-in battery or 5V DC (via USB) |
| Current Consumption | 200 mA (max, operating) 500 mA (max, charging & operating) |
| Compliance | FCC, CE, KC, RoHS, WHQL |
| Other Features (when used with SecuGen SDKs) | Auto-On™, Smart Capture™, 360 Degree Fingerprint Rotation |
| Warranty | One year limited |
| Supported Operating Systems | Windows 11 / 10 / 8.1 / 8 / 7, Windows Server 2016 / 2012 / 2008 R2, Android 3.1 and above, Linux |
