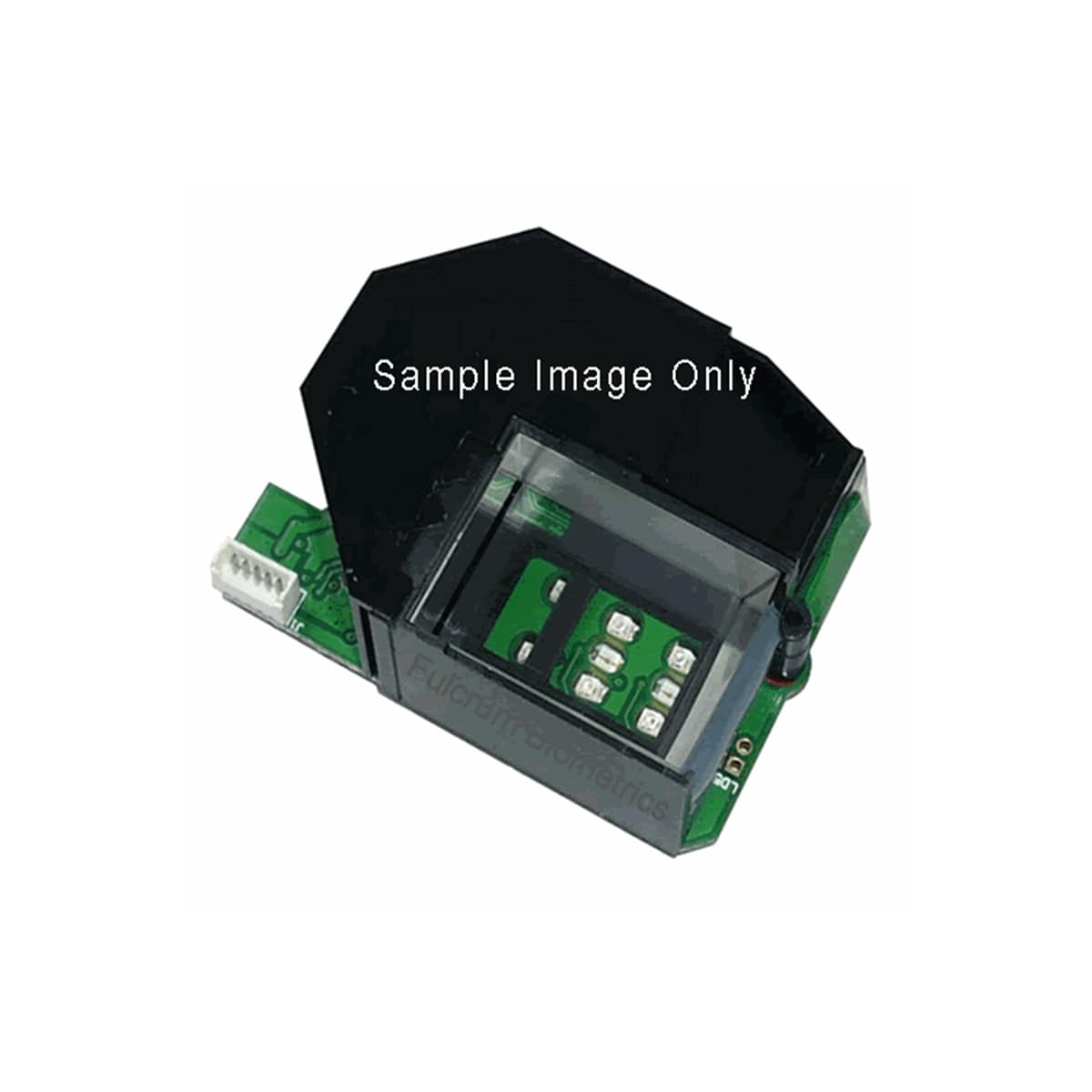

FS11 is the OEM module of FS10 for customers who want to integrate FS10 into their own products, such as a handheld POS machine and portable voter registration station. It is the same as FS10 but without the plastic shell and USB cable so that it can be embedded into any target system.
FS11 is the Futronic fingerprint scanner for the single-finger scanner market. It was certified by FBI to be compliant with PIV-071006 Image Quality Specification for Single Finger Reader. It meets the US Federal Information Processing Standard 201(FIPS 201) for Personal Identification Verification (PIV) of Federal Employees and Contractors.
FS11 uses advanced CMOS sensor technology and precise optical system to meet the rigorous requirement of fingerprint image quality of PIV-071006. Its fingerprint scanning window is crown glass that resists scratches and other stress to ensure long term heavy duty usage. It is a robust but cost effective single finger capture device and ideal for border control, identity card, driver license, election and any type of civilian AFIS application.
A unique serial number is factory-programmed into the USB Device Descriptor of each FS11. Every FS11 is traceable and this is very important for government identity management projects.
Tech Specs
| Scanner Name | Futronic FS11 PIV Fingerprint Sensor |
| Manufacturer | Futronic Technology Co. Ltd. |
| Connection | USB 2.0 |
| Manufacturer Supported OS | - Windows XP/2003, 32 bit and 64 bit.
- Windows Vista/2008/2012, 32 bit and 64 bit.
- Windows 7, 32 bit and 64 bit.
- Windows 8/8.1, 32 bit and 64 bit.
- Windows CE 5.0 and 6.0 (for both x86 and ARM9)
- Linux with kernel 2.4 or higher (for both x86 and ARM9)
- Android 3.1 and higher with USB Host port
- Windows CE 5.0 and 6.0 (for both x86 and ARM9)
|
| Fingerprint scanning window size | 29 x 29.5mm |
| Scanning area | 25.4 x 25.4mm (1"x1") |
| Image resolution | 500x500 pixels, 500 DPI |
| Image format | 8 bit 256 grayscale |
| Raw fingerprint image file size | 250K bytes |
| compatible interface | USB 2.0 |
| Small size | 75 x 73 x 36 mm |
| Light weight | 200 gram |
| Operation temperature | -10 to +55 Degree Celsius |
| Relative Humidity | 0-90% non-condensing |
- Unique serial number programmed to USB Device Descriptor
- No interpolation used
Compliant to following standards
- FIPS 201/PIV 071006 Image Quality Specification
- Microsoft WHQL
- FCC and CE
- RoHS
Electrical characteristics
- Light source: Infrared LED
- Supply voltage: DC 4.5-5.5V via USB port
- Power consumption:
- active <900mW(during scanning)
- standby <400mW
- sleep mode <2mW
- ESD contact - 8KV no permanent damage
- ESD air discharge - 16KV no permanent damage
