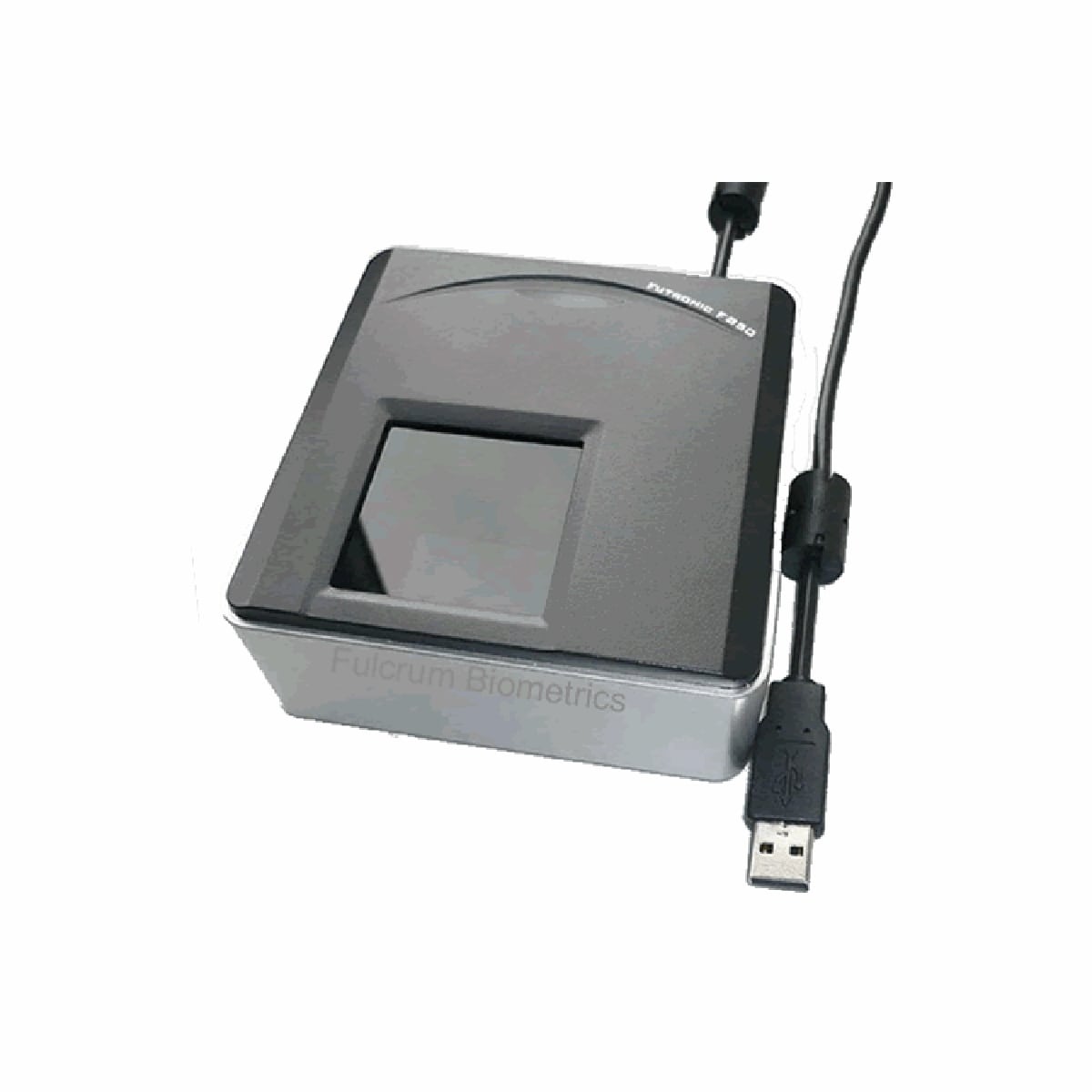

The FS52 is a large image size USB 2.0 Fingerprint Scanner from Futronic. It was certified by FBI to be compliant with EBTS/F Image Quality Specification for single and dual Finger Reader. FS52 uses advanced image sensor technology and precise optical system to meet the rigorous requirement on fingerprint image quality of EBTS/F. Its fingerprint scanning window is crown glass that resists scratches and other stress to ensure long term heavy duty usage. It is a robust but cost-effective single and dual finger capture device and ideal for border control, identity card, driver license, election and any type of civilian AFIS application.
A unique serial number is factory-programmed into the USB Device Descriptor of each FS52. Every FS52 is traceable and this is very important for government identity management projects.
- Finger scanning window size is 40.64 x 38.1mm
- Image resolution is 800x750 pixel, 500 ppi
- Image format is 8 bit 256 gray scale
- Fingerprint image file size is 600K bytes
- Max. 15 fps frame rate
- USB 2.0 compatible, plug and play device
- Unique serial number programmed to USB Device Descriptor
- With 16K Byte memory for application-specific data storage
- With detachable 2M standard USB cable
- Programmable dual color green, red LED for indication
- Size: 110 x 110 x 45.5 mm
- Weight: 460/380 gram, with/without cable
- Light source: Infrared LED
- Supply voltage: DC 4.5-5.5V via USB port
