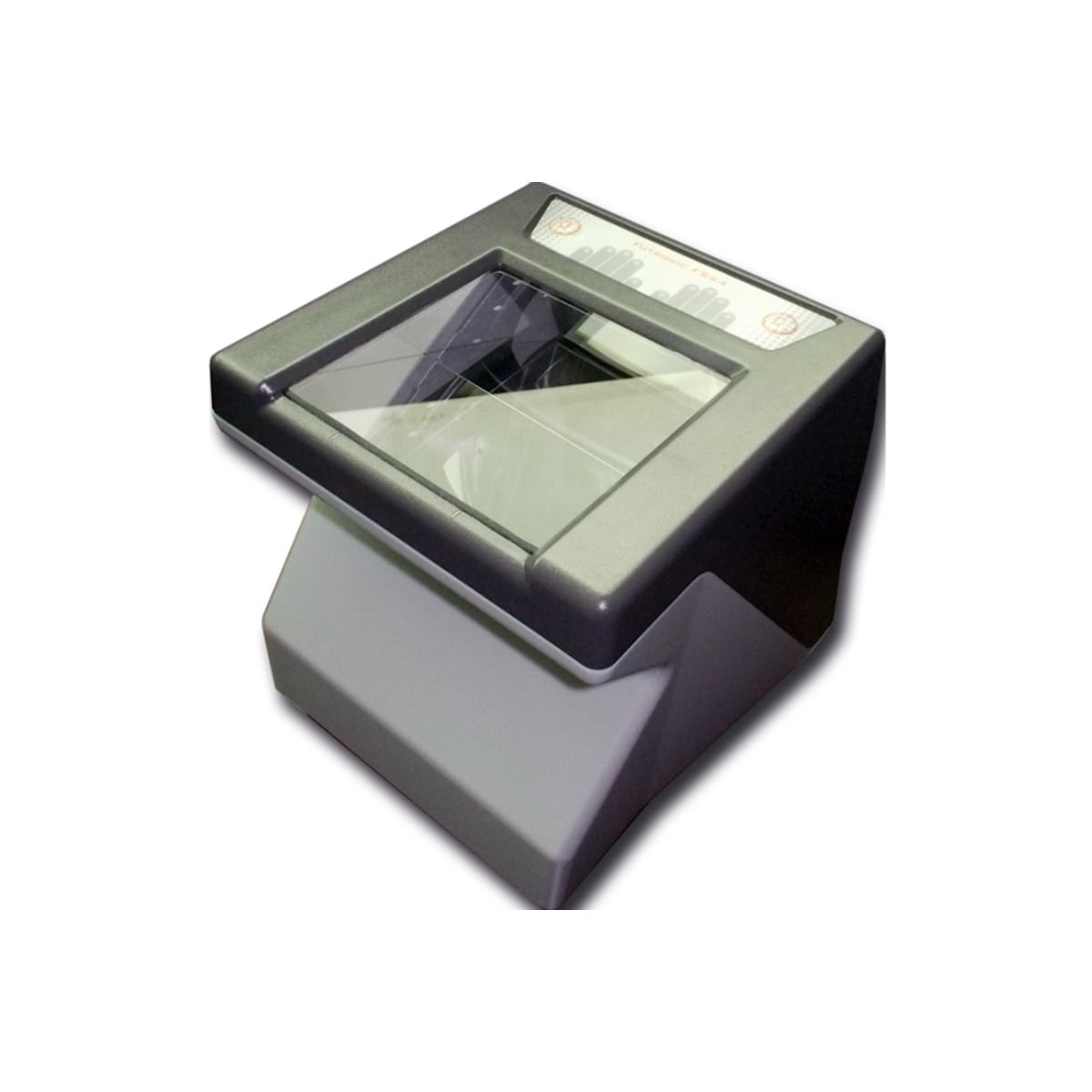

Scanner Name | Futronic FS64 EBTS/F Fingerprint Sensor |
Manufacturer | Futronic Technology Co. Ltd. |
Roll Print Size | 1.6 inch x 1.5 inch (40.64mm x 38.1mm) |
Scanning Window Size | 3.2 inch x 3.0 inch (81.2mm x 76.2mm) |
Optical Resolution | 500ppi, 256 gray level with 1600x1500 pixels image output. |
Image Quality | FBI IQS IAFIS Image Quality Specification Appendix F |
Interface | USB 2.0 |
Weight / Dimension | 2.1 kg / 152 x 149 x155mm |
Operating Temperature | 0°C to +50°C, 0-90% Relative Humidity, non-condensing |
Housing | ABS outer shell and aluminium alloy internal frame |
Workstation Computer | Computer Pentium 4 1.7 GHz or greater with 1GB RAM and display resolution of 1280 x 1024 (1920x1280 preferable). With USB2.0 port (500mA) |
Standard Features | 10 red & green dual colour LED indicators, 2 buttons and buzzer. |
Power Consumption | 5V, 300mA powered by USB bus, no external power supply require |
OS Support | WinXP, Vista, Win7, Win8 and Linux |
Certifications | FBI, FCC, CE, IP54 and RoHS Compliant |
Software | Scan Demo, Enrollment Kit, WSQ, NFIQ |
