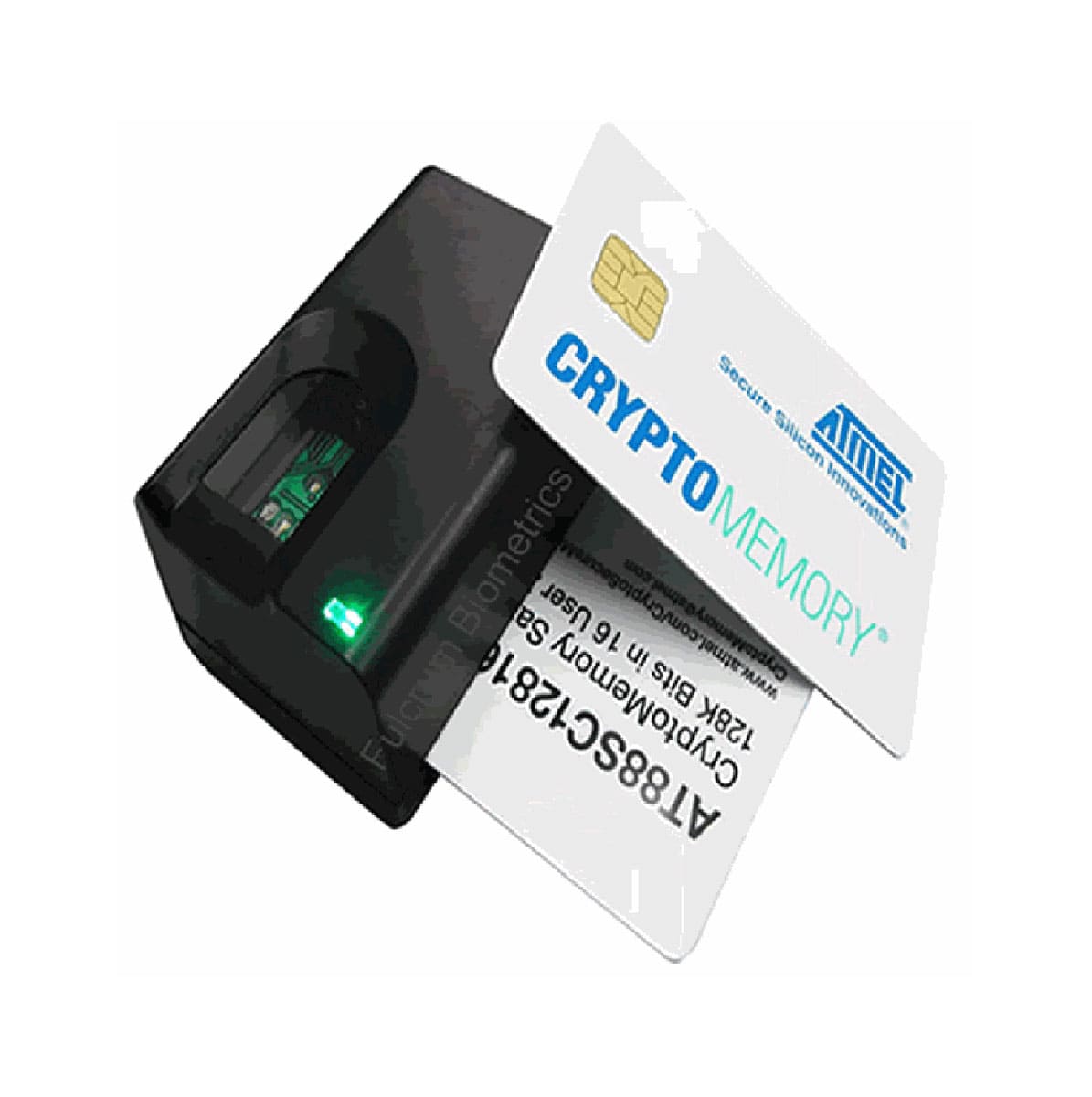

The Futronic FS82 Fingerprint Smart Reader combines Futronic's FS80 USB2.0 Fingerprint Scanner and an ISO7816 smart card reader into one device.
The FS82 has exactly all features of FS80. It can be used as purely fingerprint scanner with all Futronic's standard software. The smart card reader in FS82 can handle any ISO7816 compatible smart card and can also be used as a standalone smart card reader.
Fingerprint scanner and smart card reader can be combined to do two-factor authentication. Registered fingerprint is can be stored on smart card (carried by user) which is read into PC to match with a freshly captured fingerprint from fingerprint scanner at the time of authentication.
Futronic FS82 USB 2.0 Features
- Smartcard reader – the embedded smartcard reader allows to perform two-factor authentication.
- Precise optics – allow to scan almost undistorted fingerprint image.
- Live Finger Detection – rejects fake fingers made from silicone, rubber, play-doh or other materials.
- Infra-red illumination – allows to scan wet, dry, blurred and other problematic fingers.
- Rugged sensor – thick (14 mm) crown glass used for platen.
Tech Specs
| Scanner Name | FS82 USB 2.0 Fingerprint Smart Card Reader |
| Manufacturer | Futronic Technology Co. Ltd. |
| Connection | USB 2.0 |
| Manufacturer Supported OS | Microsoft Windows (32bit and 64bit), Linux (32bit)
|
| Neurotechnology Supported OS (1) | Microsoft Windows (32bit and 64bit), Linux (32bit)
|
| Resolution | 500 dpi |
Fingerprint Capture Method
| Touch
|
| Image capture area (Platen size) | 16 x 24 mm (0.6" x 0.9") |
| Fingerprint image size | 320 x 480 pixels |
| Sensor type | Optical, CMOS |
| Illumination | Infrared LEDs |
| Device size | 50 x 73 x 35 mm (2.0" x 2.9" x 1.4") |
| Device weight | 160 grams (0.4 lbs) |
| Operating temperature | -10°C ~ +55°C |
(1) These operating systems are supported by Neurotechnology SDKs.
Electrical characteristics
- Light source: Infrared LED
- Supports 5V, 3V and 1.8V smart cards
- Supply 60 mA to the smart card
Specification-Smart card reader
- Compliant with ISO 7816 and EMV 2000
- High speed smart card interface, up to 119 Kbps if it is supported by card
- Supports 5V, 3V and 1.8V smart cards
- Supply 60 mA to the smart card
- Detect smart card type automatically
- 8 pin handling (C4/C8 supported)
- Secure Pin Entry (SPE)
- Two colors LED for smart card reader status indication
Product Compatibility
The Futronic FS80 USB 2.0 Reader is compatible with many different software development kits and applications. Below is the list of products that are currently known to support this scanner. Please note that some applications and development kits require specific versions of the drivers to be installed. Please contact us if you need additional information.
Supported Software Development Kits:
VeriFinger Standard and Extended SDK
MegaMatcher Standard and Extended SDK
Supported Applications:
FbF (TM) Device Listener
