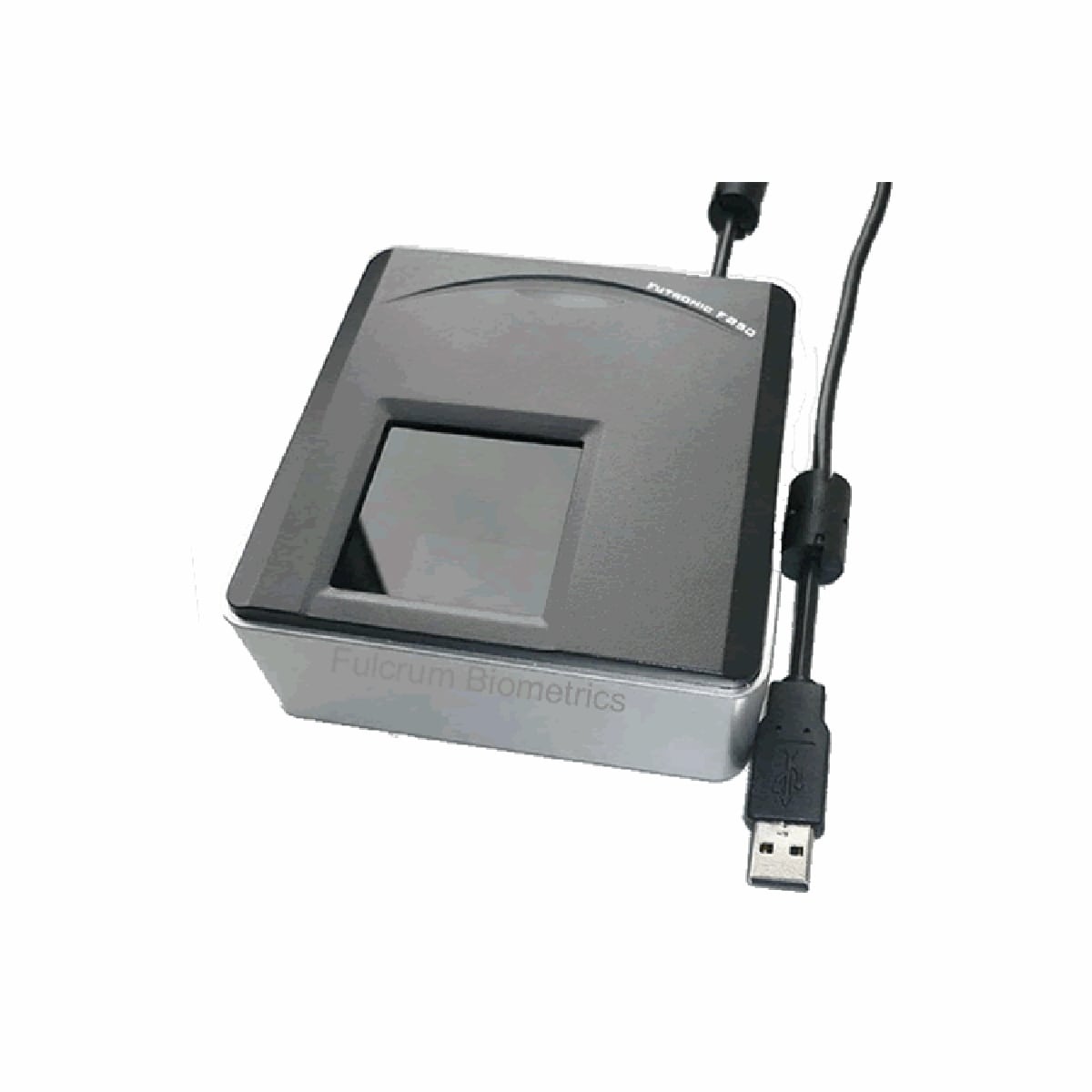

FS50 is a professional Fingerprint Scanner from Futronic with 1.6 x 1.5 inch (40.64 x 38.10 mm) scanning area. Its advanced optical system can capture a high quality image in 0.1 second. It can also handle bad fingers such as dry, wet, blurred and scarred without any problem. Its scanning window is crown glass prism with a thickness of 33mm. There is also special anti-scratching coating on the scanning surface of the prism. This makes FS50 even more robust and ensures long term heavy duty usage in any harsh environment.
FS50 FIPS201/PIV can capture single finger, dual finger and roll finger image. It was certified by FBI to be compliant with PIV-071006 Image Quality Specification for Single Finger Reader. So FS50 meets the US Federal Information Processing Standard 201(FIPS 201) for Personal Identification Verification (PIV) of Federal Employees and Contractors. It is also listed in the US General Services Administration (GSA) FIPS 201 Evaluation Program Approved Product List.
A unique serial number is factory-programmed into the USB Device Descriptor of each FS50. So every FS50 is traceable and this is very important for government identity management projects.
Have a question or need more information? Tell us about it and our personnel will respond shortly.
Futronic FS50 FIPS201/PIV USB 2.0 Features
- FIPS 201 and PIV compliant certified by FBI and included in US General Services Administration approved products list.
- Large platen area allows to scan 1 or 2 flat fingerprints simultaneously, or 1 rolled fingerprint.
- Precise optics allow to scan almost undistorted fingerprint image.
- Infra-red illumination allows to scan wet, dry, blurred, scarred and other problematic fingers.
- Rugged sensor thick (33 mm) crown glass prism used for platen.
Tech Specs
| Scanner Name | FS50 FIPS201/PIV Compliant USB 2.0 Two Finger Scanner |
| Manufacturer | Futronic Technology Co. Ltd. |
| Connection | USB 2.0 |
| Manufacturer Supported OS | - Windows XP/2003, 32 bit and 64 bit.
- Windows Vista/2008, 32 bit and 64 bit.
- Windows 7/8, 32 bit and 64 bit.
- Linux with kernel 2.4 or higher (for both x86 and ARM9)
- Windows CE 5.0 and 6.0 (for both x86 and ARM9)
|
| Neurotechnology Supported OS (1) | - Microsoft Windows (32bit and 64bit)
- Linux (32bit)
|
| Resolution | 500 dpi |
Fingerprint Capture Method
| Roll or Touch |
| Image capture area (Platen size) | 41 x 38 mm (1.6"" x 1.5"") |
| Fingerprint image size | 800 x 750 pixels |
| Sensor type | Optical, CMOS |
| Illumination | Infrared LEDs |
| Device size | 110 x 110 x 45 mm (4.3"" x 4.3"" x 1.8"") |
| Device weight | 380 grams (0.8 lbs) without USB cable |
| Operating temperature | -10°C ~ +55°C |
(1) These operating systems are supported by Neurotechnology SDKs.
Electrical characteristics
- ESD contact - 8KV and air discharge - 16KV, no permanent damage
Standards Compliance
- FIPS 201 and PIV compliant certified by FBI and included in US General Services Administration approved products list.
Product Compatibility
The Futronic FS50 FIPS201/PIV USB 2.0 Reader is compatible with many different software development kits and applications. Below is the list of products that are currently known to support this scanner. Please note that some applications and development kits require specific versions of the drivers to be installed. Please contact us if you need additional information.
Supported Software Development Kits:
VeriFinger Standard and Extended SDK
MegaMatcher Standard and Extended SDK
Supported Applications:
FbF (TM) Device Listener
