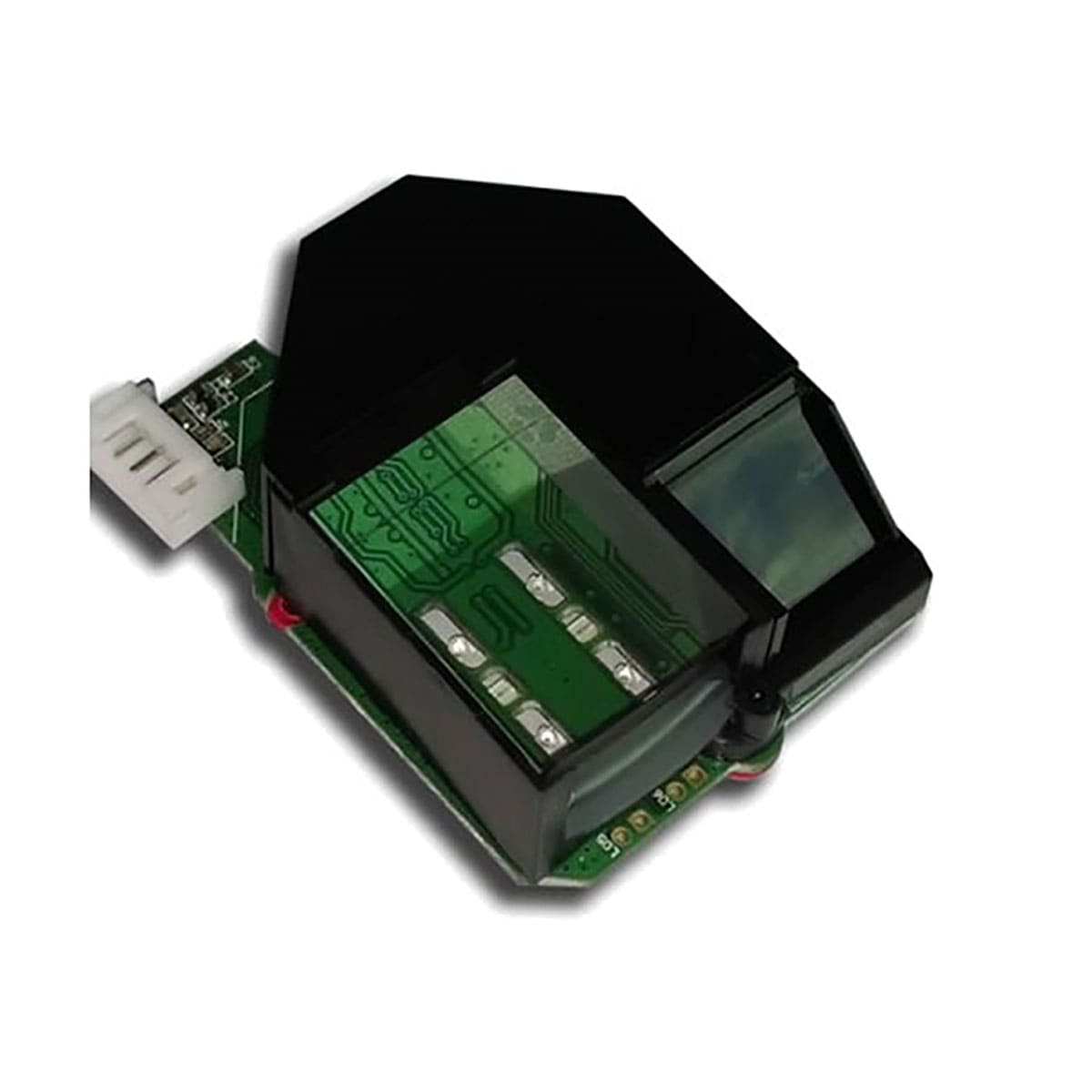

Futronic's FS81H OEM Module uses advanced CMOS sensortechnology and precise optical system to deliver high qualityfingerprint image. It can capture an almost un-distorted rawfingerprint image into PC in 100ms and is good for any fingerprintrecognition application.
The finger scanning window is a crown glass with a thickness of14mm. It is much more reliable and robust compared to any semiconductortype fingerprint sensor.
The finger is illuminated by 4 infra-red LEDs during scanning andthe light intensity is automatically adjusted according to scanningfingerprint's characteristics (wet, dry, blurred, etc) to optimize thequality of the captured fingerprint image.
FS81H has a 5 pins JST connector for connecting to USB host. Futronicprovides USB drivers and API for capturing raw fingerprint image on MSWindows, Linux and Windows CE. So it is an ideal solution for addingfingerprint recognition to standalone devices.
Futronic FS81H USB 2.0 OEM Module Features
- Precise optics – allow the scanning ofpractically undistorted fingerprint images.
- Infra-red illumination – allows scanning of wet,dry, blurred and other problematic fingers.
- Rugged sensor – thick (14 mm) crown glass usedfor platen. Practically indestructible scanner surface.
Tech Specs
| ScannerName | FS81H FingerprintScanner OEM Module |
| Manufacturer | Futronic Technology Co. Ltd. |
| Connection | USB 2.0 |
| ManufacturerSupported OS | - Windows XP/2003, 32 bit and 64 bit.
- Windows Vista/2008/2012, 32 bit and 64 bit.
- Windows 7/8, 32 bit and 64 bit.
- Linux with kernel 2.4 or higher (for both x86 and ARM9)
- Windows CE 5.0 and 6.0 (for both x86 and ARM9)
- Android 3.1 and higher with USB Host port
|
| NeurotechnologySupportedOS (1) | - Microsoft Windows (32bit and 64bit)
- Linux (32bit)
|
| Resolution | 500 dpi |
FingerprintCaptureMethod
| Touch
|
| Image capturearea (Platen size) | 16 x 24 mm (0.6" x 0.9") |
| Fingerprint imagesize | 320 x 480 pixels |
| Sensor type | Optical, CMOS |
| Illumination | Infrared LEDs |
| Device size | 45 x 55 x 20 mm (1.8" x 2.2" x 0.8") |
| Device weight | 80 grams (0.2 lbs) |
| Operatingtemperature | -10°C ~ +55°C |
(1) These operating systems are supported by NeurotechnologySDKs.
Electrical Characteristics
- Light source: Infrared LED
- Supply voltage: DC 4.5-5.5V via USB port
- Power consumption:
- active <500mW(during scanning)
- standby <200mW(when scanner is connected PC but noscanning)
- sleep mode <5mW(activated by standard USB bus event only)
- ESD contact - 8KV and air discharge - 16KV, no permanent damage
Product Compatibility
The Futronic FS81H USB 2.0 Reader is compatible with many differentsoftwaredevelopment kits and applications. Below is the list of productsthat are currently known to support this scanner. Please notethat some applications and development kits require specific versionsof the drivers to be installed. Please contact us if you needadditional information.
Supported Software Development Kits:
VeriFinger Standard and Extended SDK
MegaMatcher Standard and Extended SDK
Supported Applications:
FbF
(TM) Device Listener
