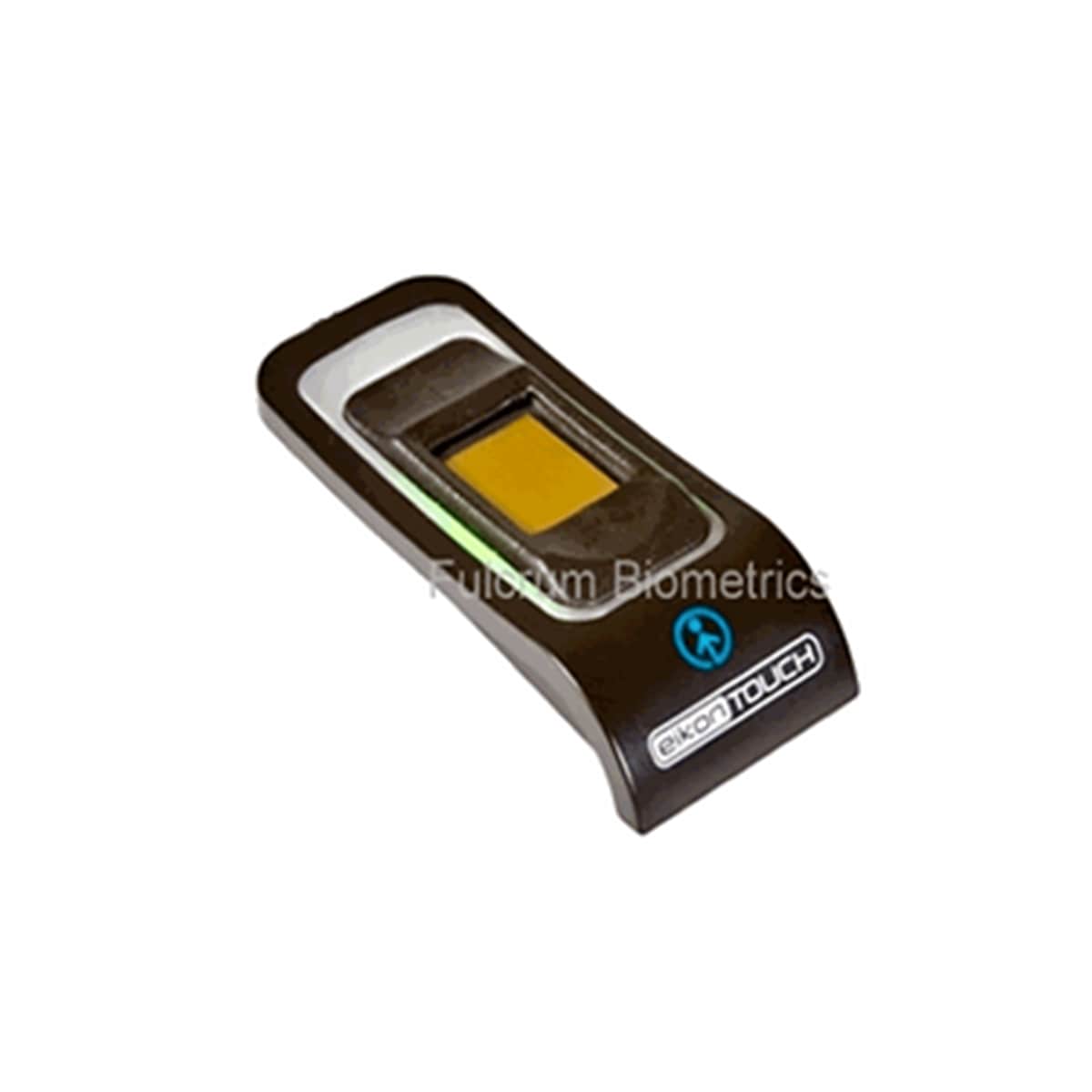

The HID EikonTouch 710 is a FIPS 201 certified fingerprint reader with capacitive sensor and USB 2.0 connection. The device offers security that is focused on IT and the home user. The USB fingerprint sensors provide quick and reliable fingerprint biometric authentication to desktop or network resources. The USB fingerprint readers use the same patented technology built into many of today's fingerprint-enabled notebook PC's, as well as many mobile phones, keyboards, POS terminals, door locks, handheld ID terminals and more.
HID EikonTouch 710 Features
Here's a look at just some of the features and benefits:
- FIPS 201 Provides FIPS 201 certified image quality.
- Proven Integrates the same technology used in millions of laptops, keyboards, physical access devices, and ID card readers.
- Touch sensor Requires no user training to scan a finger.
- Compact design The Eikon's sleek design won the CES Best of Innovations Award.
Tech Specs
| Device name | HID EikonTouch 710 |
| Manufacturer | HID Global |
| Device connection | USB 2.0 |
| Sensor resolution | 508 dpi |
| Image capture area (Platen size) | 13 x 18 mm (0.5"" x 0.7"") |
| Sensor type | Capacitive |
| Fingerprint capture method | Touch |
| Fingerprint image size | 256 x 360 pixels |
| Device size | 84 x 34 x 14 mm (3.3"" x 1.4"" x 0.6"") |
| Device weight | 80 grams (2.8 oz) |
| Operating temperature | 0°C ~ +40°C |
| Operating humidity | 5% - 93% at +30°C |
Product Compatibility
The HID EikonTouch 710 Reader is compatible with many different software development kits and applications. Below is the list of products that are currently known to support this scanner. Please note that some applications and development kits require specific versions of the drivers to be installed. Please contact us if you need additional information.
Supported Software Development Kits:
VeriFinger Standard and Extended SDK
MegaMatcher Standard and Extended SDK
