The Lumidigm V-Series Module fingerprint sensors unleash an individual's subsurface fingerprint to increase biometric performance and make your application more secure. This sensor will enhance the throughput and accuracy of any application. High-quality images can be captured by Lumidigm sensors even when fingerprint ridges are hard to distinguish due to genetics, age, dirt, finger placement, or environmental conditions. Venus Series sensors can easily enroll and verify ALL people. The V-Series greatly reduces management hassles along with end-user frustration. Designed for easy integration into any system, V-Series Modules have flexible output options (fingerprint image, template, or match score) to meet your application needs. All of this real-world capability is packaged in a small, lightweight sensor equipped with multiple communication interfaces that will make integration into your existing system easy. The V-Series Modules return superior images on anyone, anytime, in any environment.

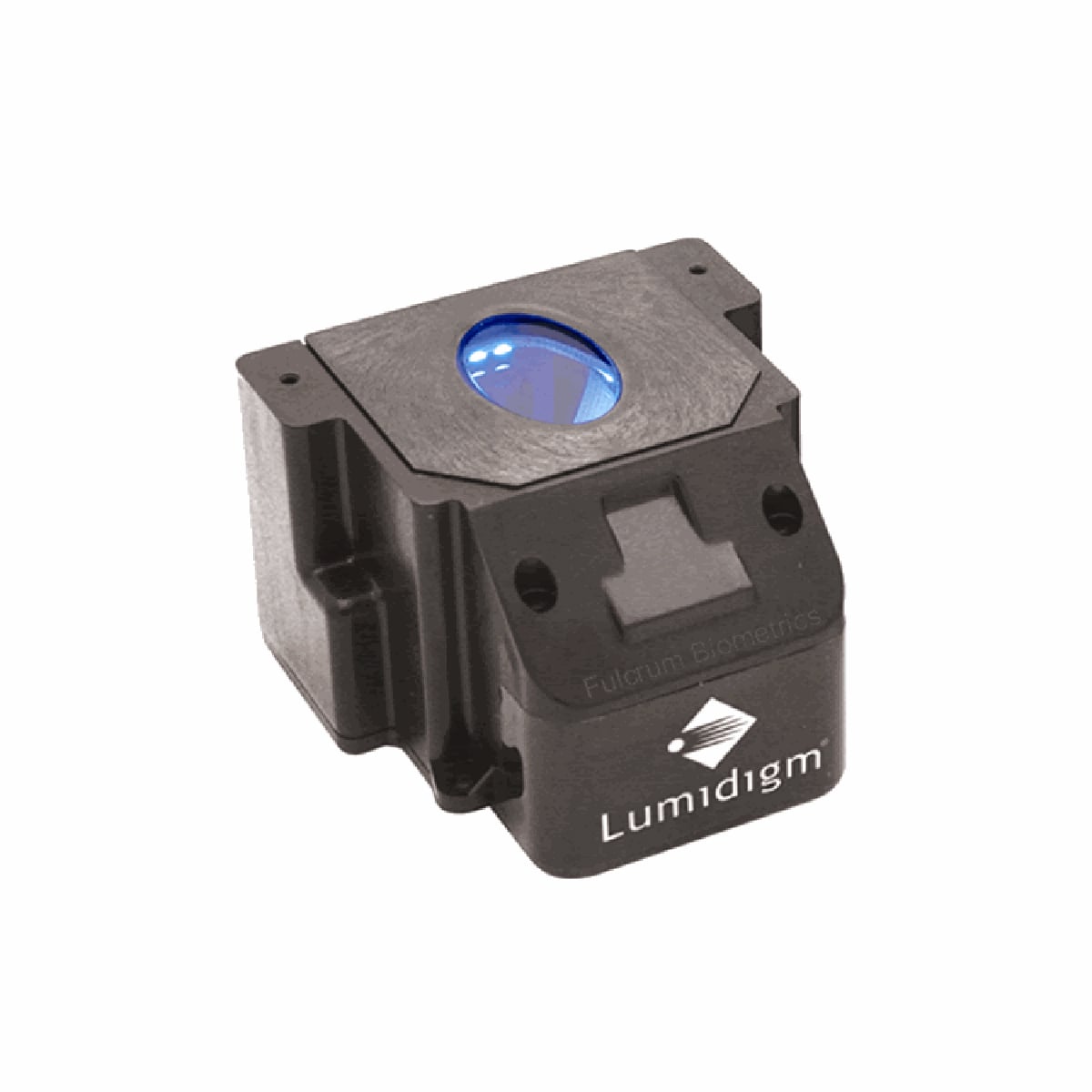

Lumidigm V-Series V300 Module
Performance
A V-Series OEM Module will enhance the throughput and accuracy of any application. High-quality images are captured by Lumidigm sensors even when fingerprint ridges are hard to distinguish due to genetics, age, dirt, finger placement, or environmental conditions. Venus Series sensors can easily enroll and verify ALL people including that 2-5% of the population with problem fingerprints that thwart conventional sensors. The Venus Series greatly reduces management hassles along with end-user frustration.
Flexible outputs
Designed for easy integration into any system, V-Series Modules have flexible output options to meet your application needs. All models output the fingerprint image. A template or match score also can be output.
Spoof detection
Eliminate performance problems associated with conventional fingerprint sensors. V-Series sensors protect against fake and spoof fingerprints by capturing detailed surface and deep tissue data. Using the biometric industry's best spoof detection technology, we provide the most secure and accurate sensors available.
Image is Everything
The accuracy and reliability of any fingerprint biometric is dependent on the image quality of the print itself. Bad images lead to bad results. Lumidigm's patented multispectral imaging system uses multiple wavelengths of light to capture an image of both a person's external fingerprint and their identical internal fingerprint. The internal fingerprint lies about 2 millimeters (1/8 of an inch) under the surface of the skin. It is made up of tiny blood vessels called capillaries and the pattern is identical to the surface print. Even if the external print is damaged or obscured, multispectral imaging uses the internal print data to ensure clear, clean images of anyone in any environment.
Tech Specs
| Device name | V-Series V300 Module |
| Manufacturer | Lumidigm, Inc. |
| Device connection | USB 2.0 or RS-232 |
| Supported OS (1) | Microsoft Windows (32bit and 64bit) |
| Sensor resolution | 500 dpi |
| Image capture area (Platen size) | 18 x 28 mm (0.7"" x 1.1"") |
| Sensor type | Optical |
| Fingerprint capture method | Touch |
| Illumination | Multispectral |
| Device size | 68 x 66 x 51 mm (2.7"" x 2.6"" x 2.2"") |
| Operating temperature | -10°C ~ +50°C |
| Operating humidity | 10-95% RH non-condensing without enclosure |
Product Compatibility
The Lumidigm V-Series V300 Module fingerprint reader is compatible with many different software development kits and applications. Below is the list of products that are currently known to support this scanner. Please note that some applications and development kits require specific versions of the drivers to be installed. Please contact us if you need additional information.
Supported Software Development Kits:
VeriFinger Standard and Extended SDK
MegaMatcher Standard and Extended SDK
Supported Applications:
FbF(TM) Device Listener
