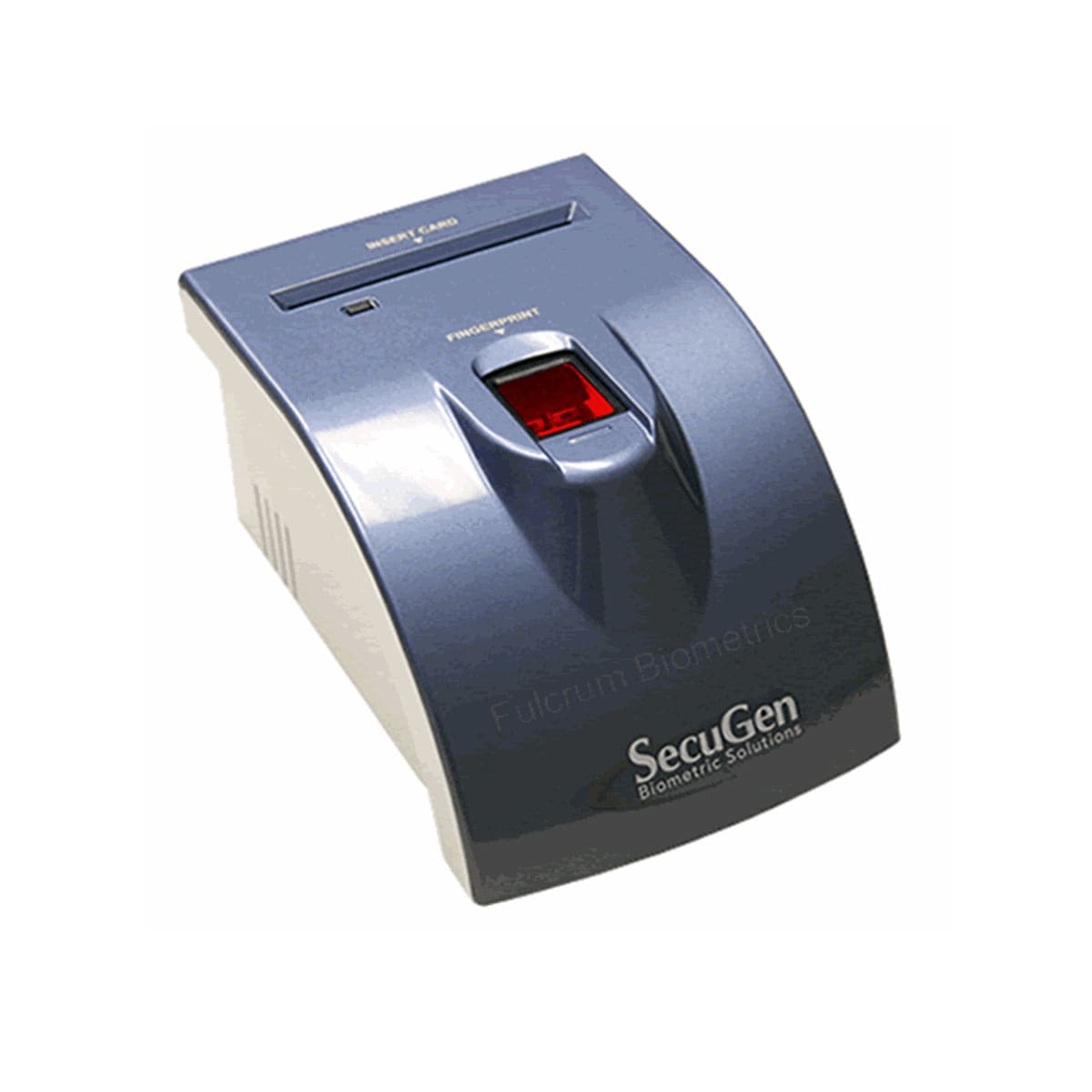

The SecuGen iD-USB SC™ is a combination fingerprint reader and smart card reader housed in a ready-to-use USB device suitable for dual-factor authentication applications. The iD-USB SC incorporates SecuGen’s ruggedized, high image quality SDU03P™ fingerprint optic module together with a PC/SC smart card reader.
SecuGen iD USB SC Features
- High-performance, maintenance-free optical fingerprint sensor
- Sensor resistant to scratches, impact, vibration andelectrostatic shock
- Auto-On™ (Automatic Finger Placement Detection technology thatautomatically checks for the presence of a finger. When enabled, thefingerprint reader will turn on and scan your finger as soon as youtouch the sensor - all without having to prompt the system.)
- Smart Capture™ (Self-Adjusting Fingerprint Brightness technologythat ensures quality fingerprint scanning of difficult fingers. Byautomatically adjusting the brightness of the sensor,Smart Capture allows the fingerprint reader to capture highquality fingerprints from a wide range of traditionally difficultfingers, including those from dry, wet, scarred or aged skin, and evenin bright ambient conditions such as under direct sunlight.)
- Integrated finger guide allows ready access by any finger in anyorientation
- 100% compatible with Hamster Plus fingerprint reader (HSDU03M,HFDU03FRS, HFDU03FR)
- PC/SC Compliant USB Smart Card Reader, 100% compatible with HIDOmnikey 3121
- USB bus-powered, no additional power supply required
- Plug 'n Play, hot-swappable
- Surface mountable case with integrated screw mounts
- One year limited warranty
Benefits of Using SecuGen Peripherals
Backed by the industry's best warranty, years of field use andproven reliability under extreme conditions, SecuGen readers provideconsistent performance and security for a growing number ofapplications in physical and information security, point-of-sale, time& attendance, and access control systems.
When used for biometric authentication as part of an overallsecurity program, SecuGen readers can help reduce the hassles ofpassword overload, decrease the risks of security breaches, improveaccountability and add true non-repudiation, all while making it moreconvenient and intuitive for almost any user.
Tech Specs
Manufacturer
| SecuGen Corporation |
Supply Voltage
| 4.75 ~ 5.25 V
|
| Communication Interface | USB 1.1 Full-Speed, USB 2.0 Hi-Speed |
| Fingerprint Capture Time | .2 ~ .5 sec with Smart Capture™ |
| Supported Fingerprint Templates | SecuGen Proprietary, INCITS 378-2004, ISO/IEC 19794-2, and third party templates |
| Image Resolution | 500 DPI |
| Image Size | 300 x 400 pixels |
Platen Size (1)
| 18.2 mm x 22.9 mm |
| Effective Sensing Area | 15.24 mm x 20.32 mm
|
| Image Gray Scale | 256 levels (8-bit) |
| Light Source / Typical Lifetime | LED / 60,000 hours |
| DImensions | 30.0 x 46.6 x 22.2 mm |
| Operating Temperature | - 20° ~ 65°C |
| Operating Humidity | 90% or less RH noncondensing |
| FAR and FRR | |
| Other Features | Auto-On™, Smart Capture™, Fake Finger Rejection (Windows currently supported; support for Android, Linux coming soon) |
| Water Resistance | U20-WR (only): Suitable for integration with IP65-rated products |
| Compliance | FCC, CE, KCC, RoHS, NIST FIPS 201, NIST SP 800-76, FBI Certified (PIV Single Finger and Mobile ID FAP 20), STQC |
(1) These operating systems are supported by Neurotechnology SDKs.
Device manufacturers may have different lists of supported operatingsystems.
Product Compatibility
The SecuGen UPx-WR Reader is compatible with many differentsoftwaredevelopment kits and applications. Below is the list of productsthat are currently known to support this scanner. Please notethat some applications and development kits require specific versionsof the drivers to be installed. Please contact us if you needadditional information.
Supported Software Development Kits:
VeriFinger Standard and Extended SDK
MegaMatcher Standard and Extended SDK
Supported Applications:
FbF(TM) Device Listener
