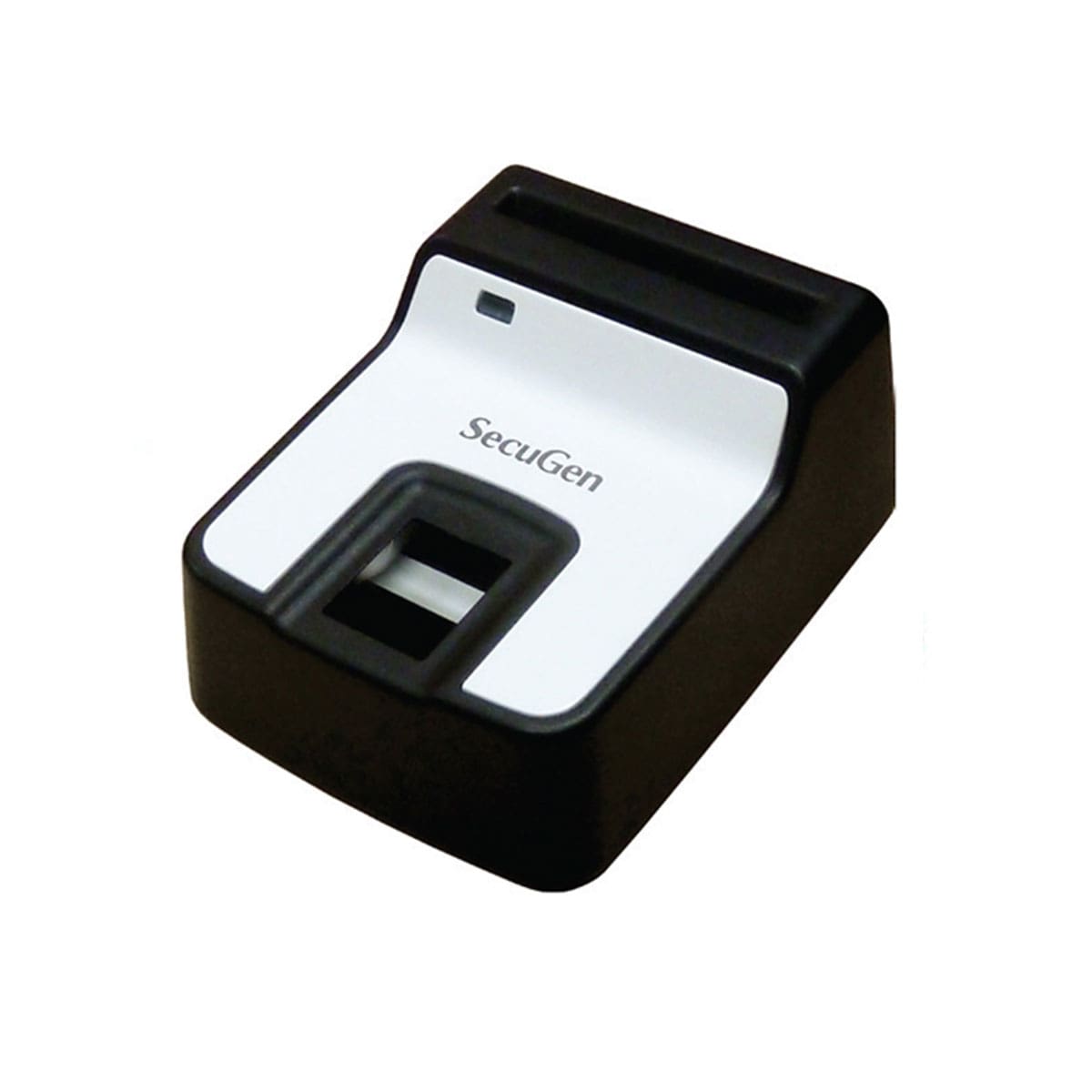

SecuGen Hamster Pro Duo SC/PIV readers are suitable for any smart card application where dual factor authentication is needed for higher security without sacrificing convenience. It features the industry’s most accurate, rugged, and affordable USB fingerprint reader to give you what the SecuGen brand is known for, the highest quality in fingerprint biometrics.
SecuGen Hamster Pro SC/PIV Duo Features
- Accurate, patented optical USB fingerprint sensor with 500 DPI resolution
- Auto-On™ automatic finger detection and Smart Capture™ for quality scanning of dry, moist, aged, scarred, and difficult-to-scan fingers*
- Fake Finger Rejection for enhanced security**
- Contact smart card reader Fulcrum Biometrics offers the SecuGen Hamster Pro USB fingerprint reader which can be used for authentication, identification and verification functions that let your fingerprints act like digital passwords that cannot be lost, forgotten or stolen.
- Convenient, ergonomic design
- Fingerprint sensor FBI Certified for FIPS 201 (PIV) and Mobile ID FAP 20
*Auto-On™ is an Automatic Finger Placement Detection technology that automatically checks for the presence of a finger. When used with Auto-On-compatible software, the Hamster Pro will turn on and scan your finger as soon as you touch the sensor - all without having to prompt the system. Smart Capture™ ensures quality fingerprint scanning of difficult fingers. By automatically adjusting the brightness of the sensor, Smart Capture allows the Hamster Pro to capture high quality fingerprints from a wide range of traditionally difficult fingers, including those from dry, wet, scarred or aged skin, and even in bright ambient conditions such as under direct sunlight.
**Fake Finger Rejection currently supported on Windows only; support for Android and Linux coming soon.
Benefits of Using SecuGen Peripherals
- Improved security with convenience and reduced password reset requests because fingerprints act like digital passwords that cannot be lost, forgotten or stolen
- Improved accountability by allowing users to quickly and easily prove their identities with their fingerprints
- Reliable and consistent performance for an ever-increasing number of applications designed for mobile, desktop, network, enterprise, and Internet environments
Tech Specs
Manufacturer
| SecuGen Corporation
|
| Dimensions | 80 x 100 x 45.5 mm |
| Interface | Hi-Speed USB 2.0 (fingerprint reader), USB 2.0 Full-Speed (card reader) |
| Weight | 98 g |
| Operating Temperature | 0° ~ 50°C |
| Operating Humidity | 90% or less RH, noncondensing |
NeurotechnologySupportedOS (1)
| Microsoft Windows (32bit and64bit) |
| Supported Operating Systems | Windows 10 / 8.1 / 8 / 7Windows Server 2012, 2008 R2Linux, Android 3.1 and above |
| Certifications | FCC, RoHS, FBI PIV |
| Supply Voltage / Max. Current | 5 V DC / 250 mA |
| Warranty | One year limited |
Fingerprint Reader
Model / Type
| SecuGen U20™ optical fingerprint sensor
|
| Fingerprint Image Resolution / Size | 500 DPI / 300 x 400 pixels |
| Fingerprint Platen Size (Effective Sensing Area) | 18.2 mm x 22.9 mm (15.24 mm x 20.32 mm) |
| Fingerprint Capture Speed | 0.2 ~ 0.5 second with Smart Capture™ |
| Supported Standards | FIPS 201 (PIV-071006), INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, Mobile ID FAP 20, NIST SP 800-76 |
Card Reader
Model / Type
| ACR39U contact smart card reader
|
| Standards | ISO 7816 Parts 1-3, Class A, B, C (5V, 3V, 1.8V) |
| Protocols | T=0, T=1; Memory Card Support |
| Smart card interface speed | 9.6 kbps - 600 kbps |
| Smart card clock frequency | 4.80 MHz |
| Supported card types | 5V, 3V and 1.8V smart cards, ISO 7816 Class A, B and C |
| Supported APIs | PC/SC, CT-API (through wrapper on top of PC/SC) |
| Status indicator | Green LED |
| Card insertion cycles | Min. 100,000 |
| Certification/Compliance | ISO 7816, EMV Level 1 (Contact), PC/SC, CCID |
Product Compatibility
The Secugen Hamster Pro SC/PIV Reader is compatible with many differentsoftwaredevelopment kits and applications. Below is the list of productsthat are currently known to support this scanner. Please notethat some applications and development kits require specific versionsof the drivers to be installed. Please contact us if you needadditional information.
Supported Software Development Kits:
VeriFinger Standard and Extended SDK
MegaMatcher Standard and Extended SDK
Supported Applications:
FbF(TM) Device Listener
