NON-RETURNABLE/NON-REFUNDABLE
This product is EOL. Quantities are very limited.

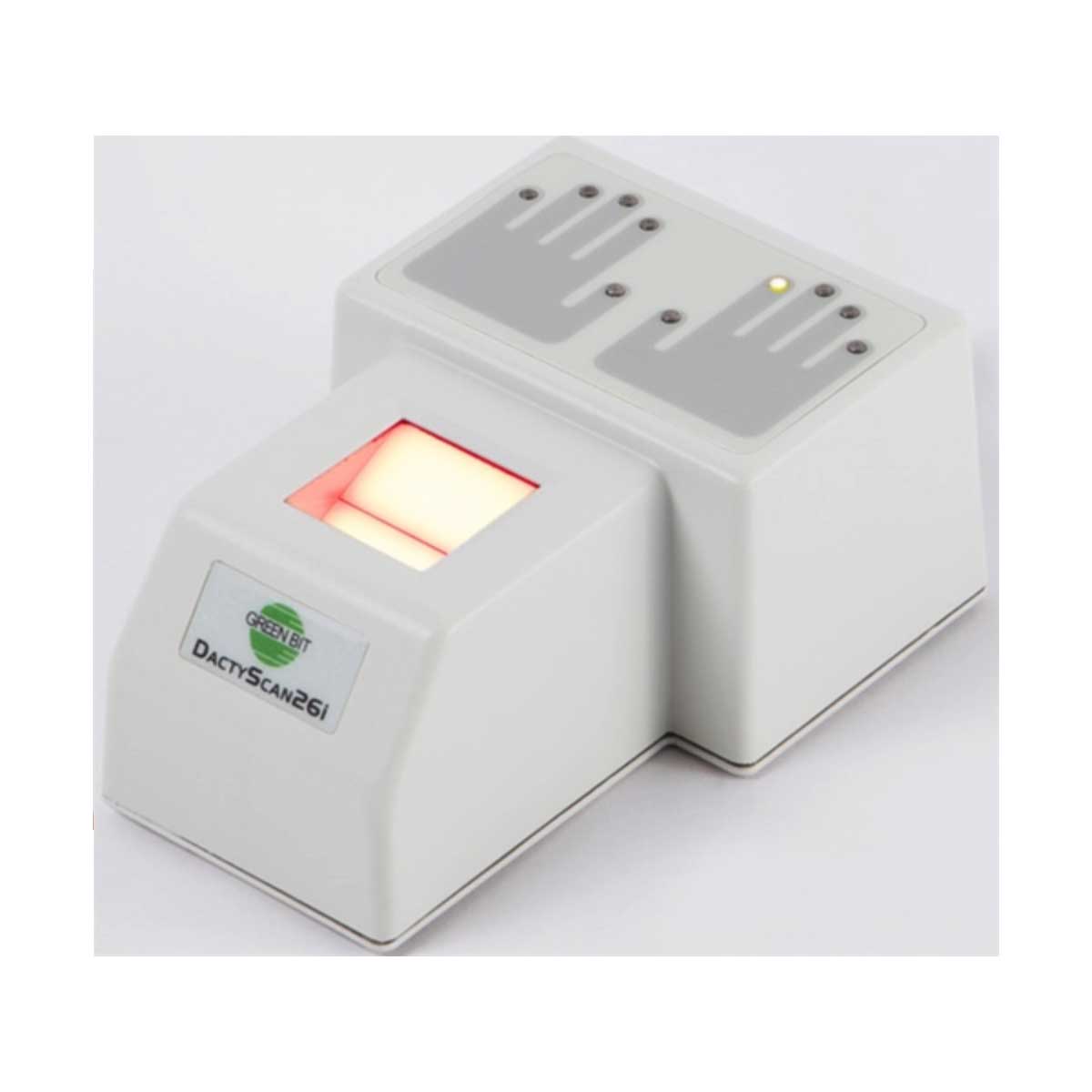

DactyScan26i is the most compact 1" x 1" fingerprint scanner on the market today. Its 10 3-color LED based graphical user interface facilitates the acquisition process. Thus it allows for integration in a wide range of applications: civil identification, e-id document issuing, border control and other public authority related applications.
PLEASE NOTE, INTERNATIONAL DESTINATIONS REQUIRE AN EXPORT LICENSE FROM THE STATE DEPARTMENT. THE APPLICATION PROCESS CAN LAST UP TO 45 DAYS.
SDK Features

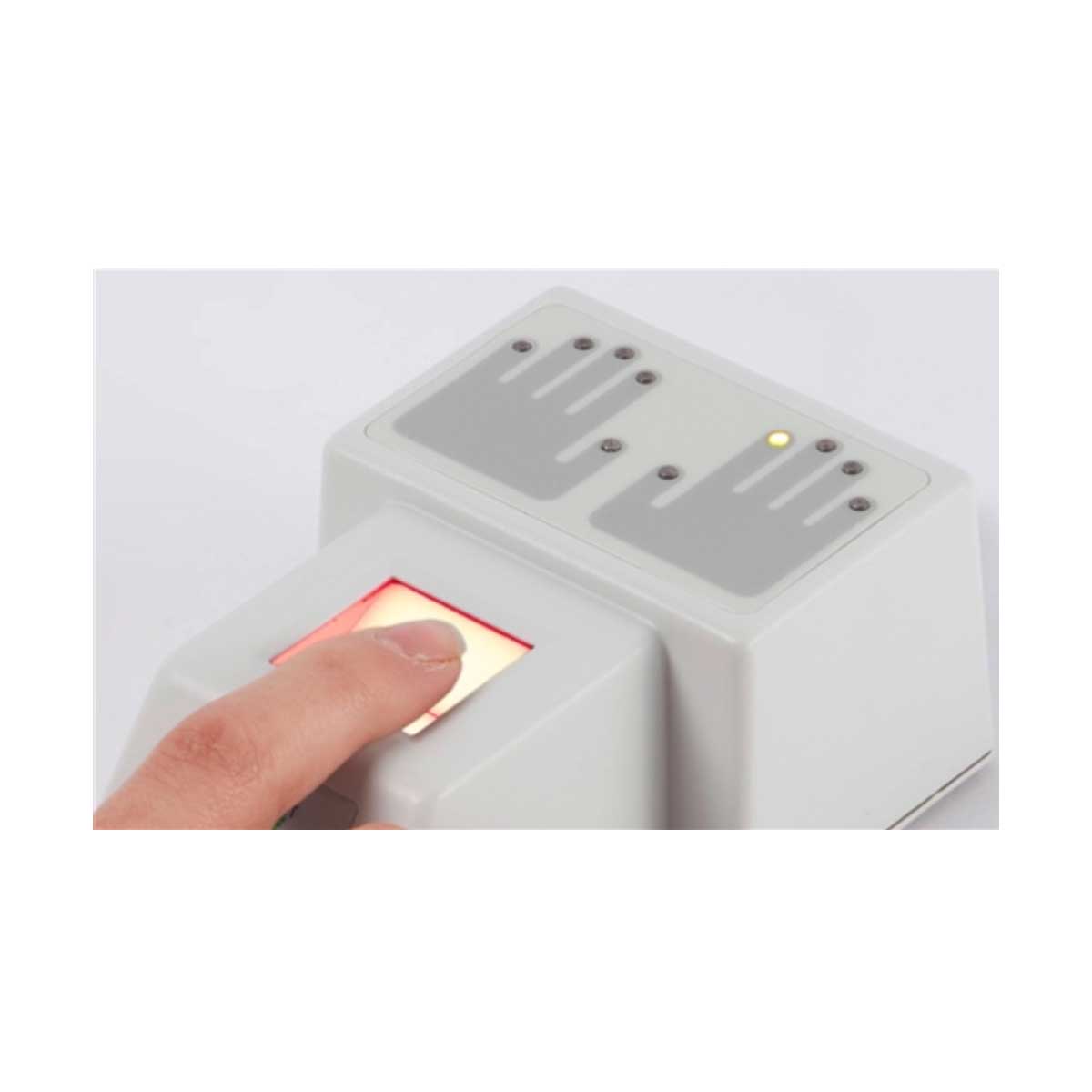

- AUTOMATIC ACQUISITION START AND STOP: sensing of finger placement and automatic acquisition of the image with the highest quality. Quality thresholds for images can be set through the Multiscan SDK.
- ELIMINATION OF LATENT PRINTS: elimination of latent prints originating from recent scans.
- ELIMINATION OF DIRT: image is always crisp, clear and well contrasted.
- AUTOMATIC FORMAT CLIPPING: generation of any required image size according to application requirements.
- AUTOMATIC IMAGE ROTATION: correct rotation of a fingerprint image in accordance with application demands.
Tech Specs
ACTIVE SCANNING WINDOW
| 0,8" x 0,7"- Single flat finger
|
IMAGE QUALITY AND FORMATS
| FBI-PIV, BSI certified, ANSI/NIST-ITL 1-2007/2011, ISO/IEC FCD 19794-4, ANSI/NIST-ITL 1-2000, ANSI/NIST-ITL 1-2000 Interpol Implementation
|
INTERFACE USB
| 2.0
|
IMAGE COMPRESSION
| FBI certified WSQ compression; further compression formats available are JPEG and JPEG2000.
|
SUPPORTED OPERATING SYSTEMS
| Microsoft Windows up to Win 10 in 32-bit and 64-bit configuration
|
IP RATING
| IP54
|
TEMPERATURE
| Storage: from -20°C to +60°C - Operating: from 0°C to +50°C
|
HUMIDITY
| From 10 to 90% non-condensing
|
WEIGHT
| 250 gr.
|
DIMENSIONS
| 86 x 125 x 52,2 mm
|
CERTIFICATIONS
| CE, FCC, RoHS
|
OPTIONS
| DactyMatch SW
|
