NON-RETURNABLE/NON-REFUNDABLE

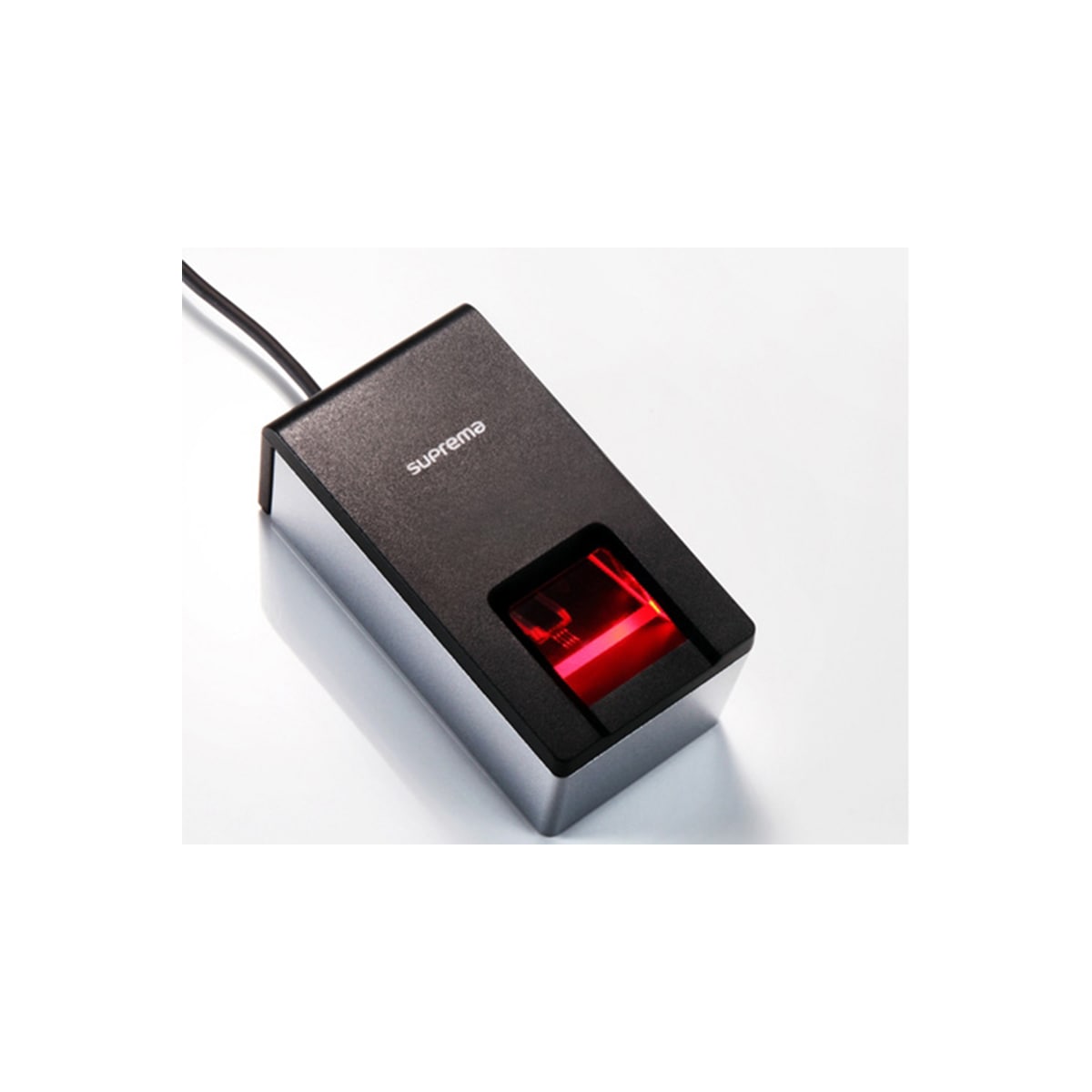

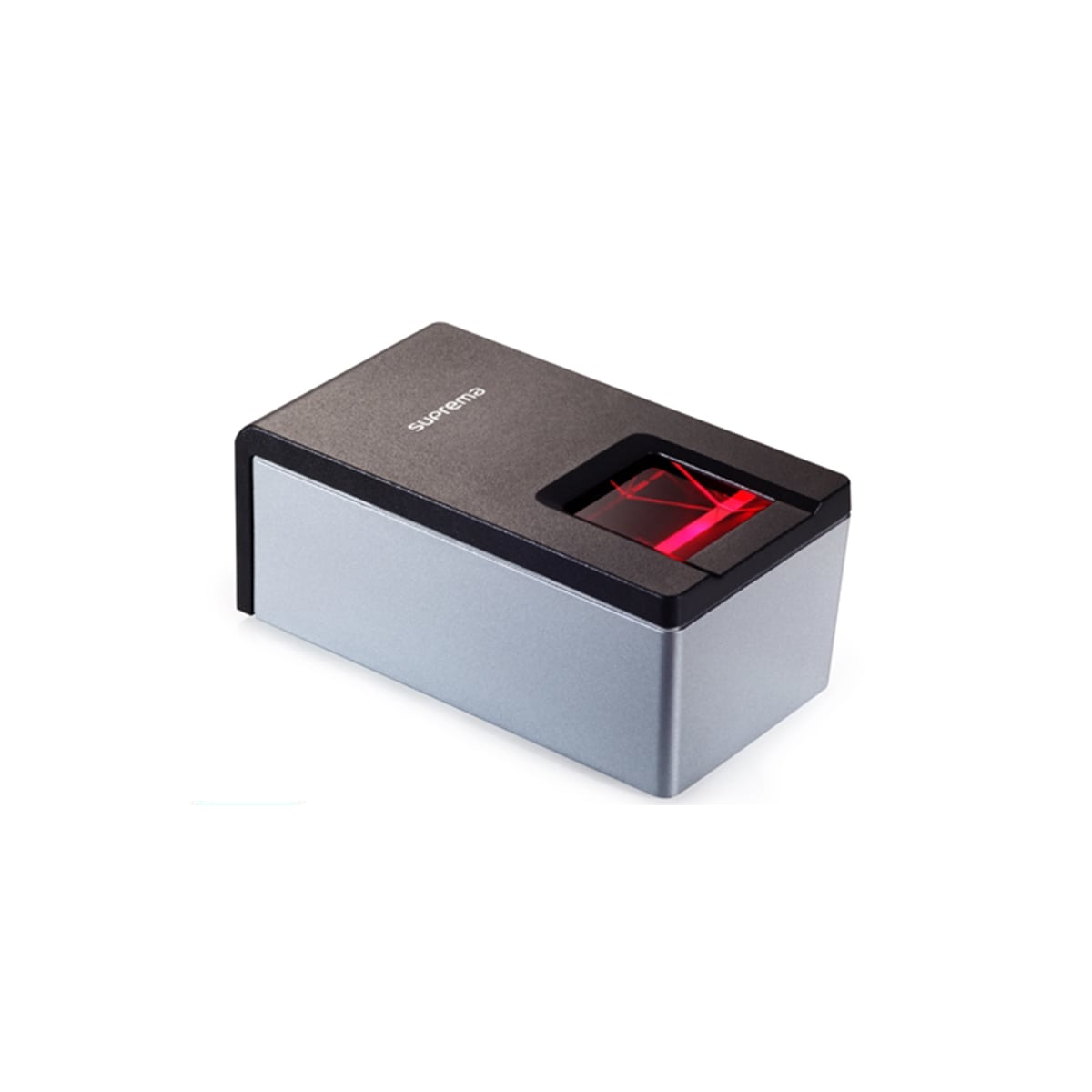

This product is EOL. Quantities are very limited. RealScan-G1 is a FBI PIV certified single-finger live scanner embedded with Suprema's advanced Live Finger Detection (LFD) technology. By using Suprema's superior optical engineering, it offers every essential feature packed into a slim and compact form factor making it ideal for the high-speed fingerprint capturing required in civil and criminal IP projects. RealScan-G1 ensures high quality image capturing using automated image quality verification processes combined with halo effect and ghost image elimination techniques. The device is also IP54-rated, contained with dust and waterproof structure, and optimally designed for desktop use or integration into kiosks and mobile kits.
Features
- FBI PIV-IQS certication for civil ID & AFIS
- Hybrid live finger detection (LFD) technology
|
- IP54 rated dust and water protection design
|
- 1.0 inch wide solid and scratch-free platen
|
- Slim and compact form factor
- Easy-to-mount design for desktops and kiosks
|
Tech Specs
| Fingerprint Types | Single finger flat |
| Resolution | 500 dpi |
| Platen Size (W x L) | 1"" x 1"" (25.4 x 25.4 mm), 500x500pixel |
| Ingress Protection | IP54 |
| Grey Scale | 8-bit, 256 levels |
| Image Capture Speed | 15frames/sec |
| Interface | USB 2.0 (data & power) |
| Dimension (W x L x H) | 55 x 106.5 x 44.5 mm |
| Weight | 0.18 kg (inclouding cable) |
| Operating Temperature | 0-50'C |
| Operating Humidity | 10%~90% RH, non-condensing |
| Operating Systems | Window 8, 7, Vista, XP, Linux(Ubuntu, Fedor) |
| Certificate | FBI, PIV-IQS, FIPS 201, WHQL, CE, FCC, UL, KCC |
"
