Manufacturer
| Futronic
|
| General | USB 2.0 compatible interface, plug and play device |
| | With a 2M standard USB cable |
| | Small size, 65 x 94 x 49 mm |
| | Light weight, 210 gram |
| | Operation temperature: -10 to +55 Degree Celsius |

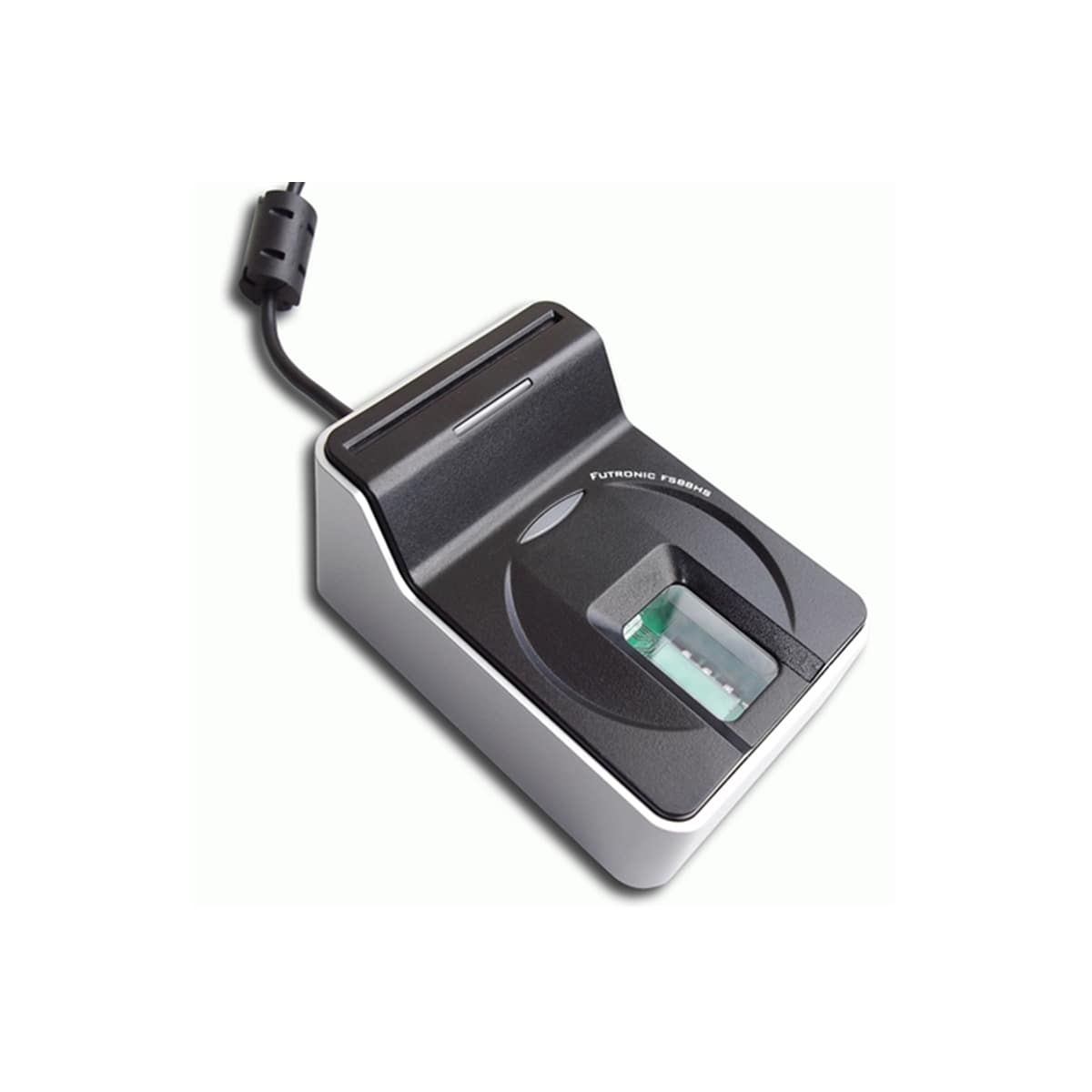

Fingerprint Scanner
| Fingerprint scanning window size is 16.26x24.38mm |
| | Image resolution is 320x480 pixel, 500 DPI |
| | Image format is 8 bit 256 grayscale |
| | Raw fingerprint image file size is 150K byte |
| | With Live Finger Detection (LFD) feature |
| | Unique serial number programmed to USB Device Descriptor |
| | With 16K Byte memory for application-specific data storage |
Smart Card Reader
| ACS AC1038 Reader Chip |
| Full speed interface to PC with simple command structure |
| Supports SLE4418/28/32/42 memory cards |
| Supports most common memory-based smart cards, including I2C bus protocol cards(from 1K bits up to 1024K bits) and secure memory cards (Atmel AT88SC153 and AT88SC1608) |
| Certificate of conformance: ISO7816, PC/SC, EMV Certified |
| Support PPS (Protocol and Parameters Selection) with 1743-305200 bps in reading and writing smart cards |
