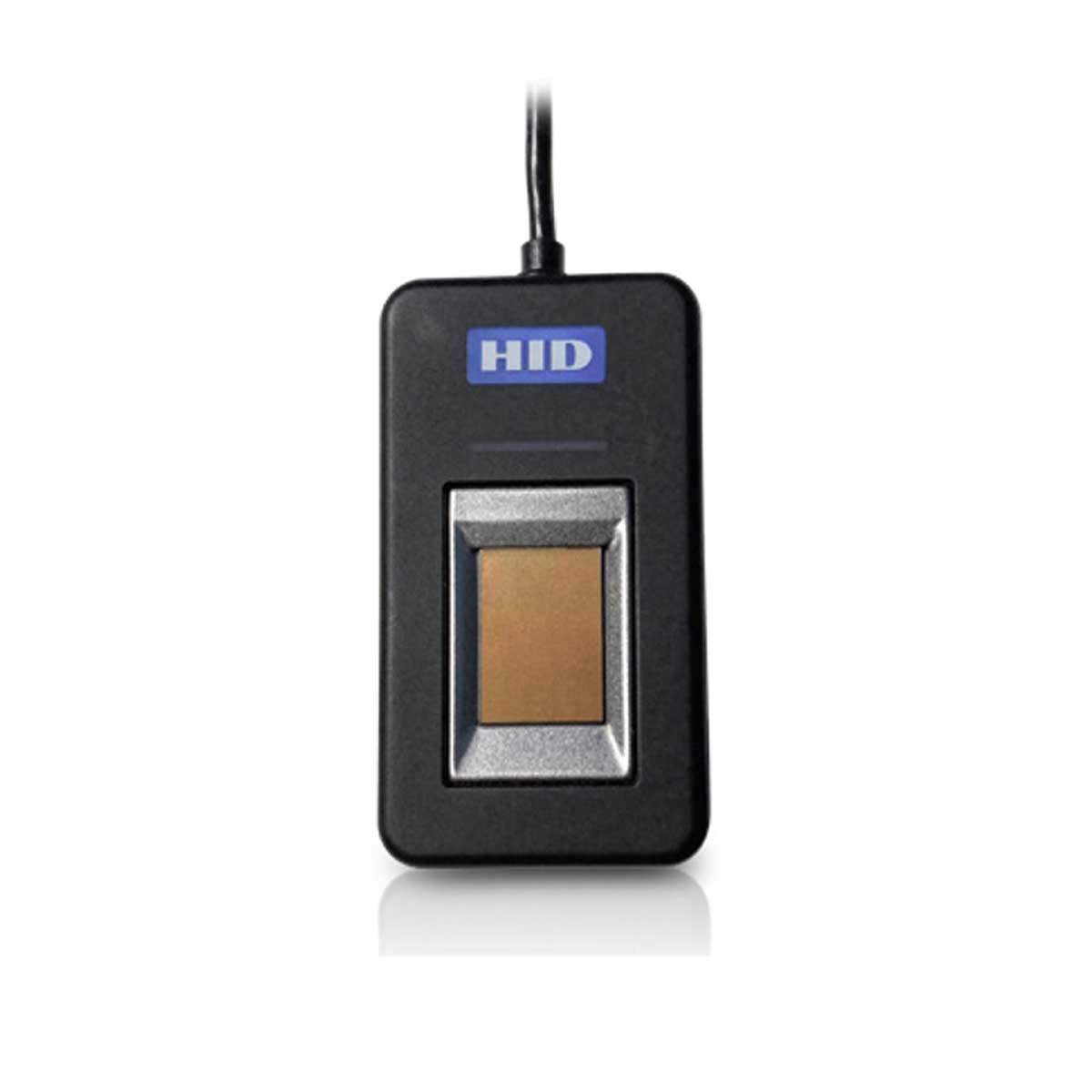

The HID EikonTouch® TC710 USB capacitive fingerprint reader provides quick and reliable biometric authentication. The HID EikonTouch® TC710 uses patented technology to capture fine print details. The result is the ability to capture a wide range of fingerprints with superior image quality for a broad range of use cases.
The first and most widely deployed, FIPS 201 PIV certified silicon fingerprint reader provides on board processing for image capture and template generation, matching and storage. This reader also protects sensitive data to and from the device using encryption up to AES-256.
The HID EikonTouch® TC710 fingerprint reader is a USB peripheral perfect for individual desk-top users. Utilizing the same proven compact design as our HID DigitalPersona® 4500 optical fingerprint reader the TC710 conserves desk space with a professional, modern housing design. This form factor works well in a wide range of vertical markets including government, healthcare and other logical access control applications. Superior accuracy and usability are a result of the improved finger guide ergonomics and the LED which is located just above the sensor to provide user feedback during the biometric capture and matching process. The TC710 housing is IP65 rated to protect against dust and moisture penetration. This capability supports device cleaning including up to 70% isopropyl alcohol.
The DigitalPersona® Biometric Software Developer Kit (SDK) provides flexible APIs to enable fast integration of the HID EikonTouch® TC710 into a broad range of applications.
Whether you are an enterprise customer or a system integrator, our biometric identity verification solutions provide a natural extension to your security systems and applications.
Applications
- Desktop PC security
- Mobile PC security
- EPCS & healthcare applications
Features
- FIPS 201 PIV certified image quality
- On device processing for template generation, matching and storage
- Works well with dry, moist or rough fingerprints
- Encrypted USB communication
- PAD (Presentation Attack Detection)
- Multiple USB connectors and cable lengths
Applications
- Desktop PC security
- Mobile PC security
- EPCS & healthcare applications
Tech Specs
| Product Name | HID EikonTouch TC710 Capacitive Fingerprint Reader |
| COMPACT FORM FACTOR | |
| Fingerprint Sensor | TCS1C (touch) |
| Package Size (mm) | 35 x 63.5 x 14.2 |
| Scanned Finger Area (mm) | 12.8 x 18 |
| Pixel Array Size (pixels) | 256 x 360 |
| Weight | 124 |
| Form Factor | Same housing as the DigitalPersona 4500 optical fingerprint reader with weighted base for added stability. |
| Cable & Connector Options | Cable lengths: 20 or 183 cm (7.8 or 72 in.) lengths USB Connectors: Type-A, Micro-B or Type-C |
| HIGH PERFORMANCE | |
| Acquisition Speed | 5.5 frames/sec |
| Image Resolution | 508 dpi |
| Grayscale Image Depth | 8-bit (256 levels) |
| Interface | USB 2.0 full speed |
| SECURE |
| USB Data Encryption | 5Up to AES-256 |
| On-board Data Storage | Up to 100 finger templates |
| RUGGEDIZED |
| ESD Protection | IEC 61000-4-2 level 4: 15 kV air, 8 kV contact |
| Ingress Protection | IP65 for moisture and dust protection |
| Operating Temperature | -10° to 50° C |
| Protective Coating | > 2 million touches |
| Humidity | > 5% to 95% RH |
| Certification | > CE/FCC/WHQL /UL/RoHS/Reach/WEEE |
Product Compatibility
The HID EikonTouch TC710 Fingerprint Reader is compatible with many different software development kits and applications. Below is the list of products that are currently known to support this scanner. Please note that some applications and development kits require specific versions of the drivers to be installed. Please contact us if you need additional information.
Supported Software Development Kits:
VeriFinger Standard and Extended SDK
MegaMatcher Standard and Extended SDK
