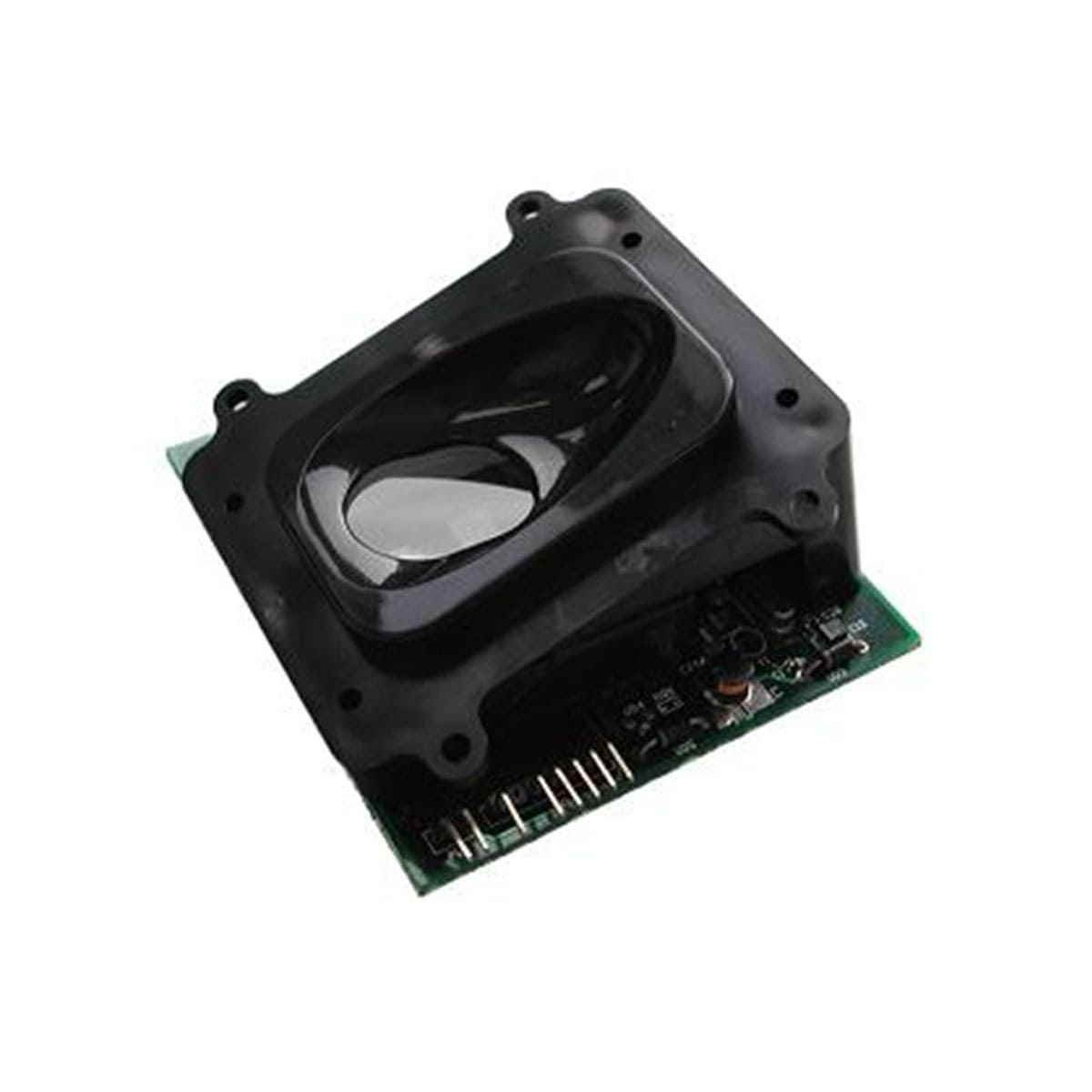

Futronic FS83 serial Fingerprint Authentication Module (sFAM) combinesboth a high performance fingerprint scanner and a recognition engine intoone device. It has internal memory that can store up to 2500fingerprint templates.
Any host system can control the FS83 via the standard 4 wires serialinterface to enroll finger and recognize the finger. The recognition resultwill be sent from FS83 to the host. It can be used to add fingerprintrecognition function to existing products such as an access controldevice, point-of-sale machine, electronic safe, etc.
Fingerprint images and templates can be transferred between the FS83 andthe host system for making a flexible application. Futronic providesdevelopment tools to customer free of charge for integrating the FS83with host system.
Futronic FS83 Serial Fingerprint Module Features
- Remote scanner module
- Serial connection
- Suitable for almost any device
Tech Specs
| ScannerName | FS83 serial FingerprintAuthentication Module (sFAM) |
| Manufacturer | Futronic Technology Co. Ltd. |
| Connection | Serial |
| ManufacturerSupported OS | Practically any host can controlthe FS83 (sFAM)
|
| Resolution | 500 dpi |
FingerprintCaptureMethod
| Touch
|
| Image capturearea (Platen size) | 16 x 24 mm (0.6" x 0.9") |
| Fingerprint imagesize | 320 x 480 pixels |
| Sensor type | Optical, CMOS |
| Illumination | Infrared LEDs |
| Device size | 80 x 80 x 40 mm (3.1" x 3.1" x 1.6") |
| Device weight | 200 grams (7.1 oz) (without powersupply)
|
| Operatingtemperature | -10°C ~ +55°C |
(1) These operating systems are supported by NeurotechnologySDKs.
Electrical characteristics
- Light source: Infrared LED
- 4 wires serial interface, VCC, GND, TX and RX. Speed up to961200bps.
- Supply voltage: 5V. Max current consumption: 200mA
- ESD: contact 8KV and air discharge 16KV no permanent damage
Product Compatibility
The Futronic FS83 Serial Fingerprint Module is a self containedsystem with capability to store and match up to 2500 fingerprints onboard. The FS83 may be combined with software developed with theFutronic Fingerprint SDK for Windows or Linux.
Supported Software Development Kits:
Futronic Software Development Kit for Windows
Futronic Software Development Kit for Linux
