Futronic's FS89 Fingerprint Module (Formerly FS88 OEM module) is an enhanced version of FS80 fingerprint scanner. The FS88/89 was certified by FBI to becompliant withPIV-071006 Image Quality Specification for Single Finger Reader. Thescanner is also listed in the US General Services Administration (GSA)FIPS 201 Evaluation Program Approved Product List. The FS88 meets theUS Federal Information Processing Standard 201 (FIPS 201) for PersonalIdentification Verification (PIV) of Federal Employees and Contractors.
The scanner is suitable for high-traffic applications like bordercontrol, identity card, driver license, election or any other type ofcivilian AFIS, as it is able to capture high quality fingerprint imagesalmost without distortions and has a rugged sensor.

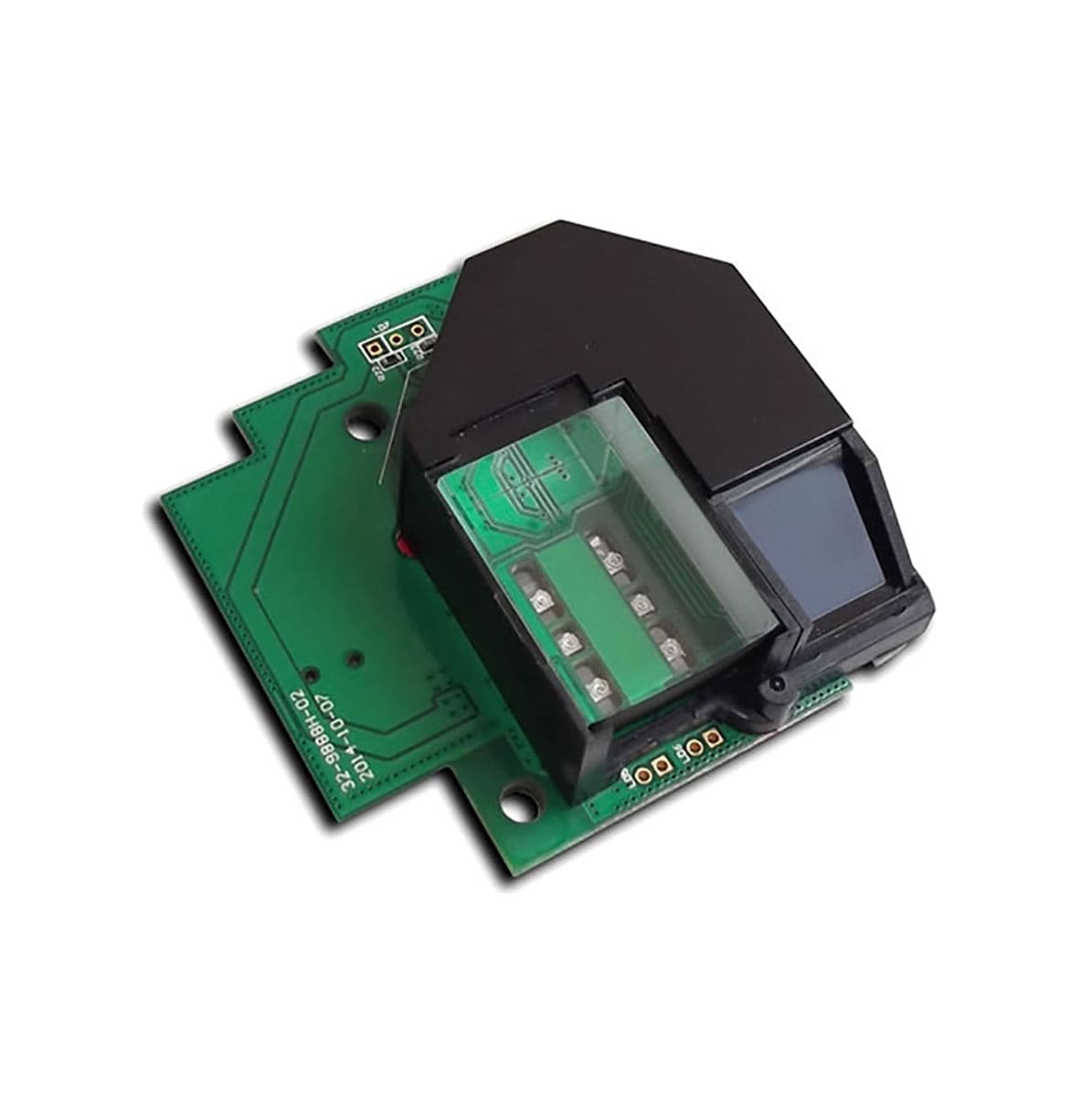

FS89 module is available for customers who want to integrate FS88into their own products, such as handheld POS machine, portable voterregistration station, etc. FS89 module is same as FS88 butwithout plastic shell and USB cable so that it can be embedded into anytarget system. It is even smaller and lighter:
Futronic FS89 FIPS201/PIV Fingerprint Module Features
- FIPS 201 and PIV compliant – certified by FBIand included in US General Services Administration approved productslist.
- Suitable for mobile solutions – compact andrugged sensor can be used in various high-traffic environments.
- Precise optics – allow to scan almostundistorted fingerprint image.
- Infra-red illumination – allows to scan wet,dry, blurred and other problematic fingers.
- Rugged sensor – thick (14 mm) crown glass usedfor platen.
Tech Specs
| ScannerName | FS89 FIPS201/PIV FingerprintModule |
| Manufacturer | Futronic Technology Co. Ltd. |
| Connection | USB 2.0 |
| ManufacturerSupported OS | - Windows XP/2003, 32 bit and 64 bit
- Windows Vista/2008/2012, 32 bit and 64 bit
- Windows 7/8, 32 bit and 64 bit
- Linux with kernel 2.4 or higher (for both x86 and ARM9)
- Windows CE 5.0 and 6.0 (for both x86 and ARM9)
- Android 3.1 and higher with USB Host port
|
| NeurotechnologySupportedOS (1) | - Microsoft Windows (32bit and64bit)
- Linux (32bit)
|
| Resolution | 500 dpi |
FingerprintCaptureMethod
| Touch
|
| Image capturearea (Platen size) | 16 x 24 mm (0.6" x 0.9") |
| Fingerprint imagesize | 320 x 480 pixels |
| Sensor type | Optical, CMOS |
| Illumination | Infrared LEDs |
| Device size | 45 x 55 x 20 mm (1.8" x 2.2" x 0.8") |
| Device weight | 80 grams (0.2 lbs) |
| Operatingtemperature | -10°C ~ +55°C |
(1) These operating systems are supported by NeurotechnologySDKs.
Electrical characteristics
- Light source: Infrared LED
- Supply voltage: DC 4.5-5.5V via USB port
- Power consumption:
- active <700mW(during scanning)
- standby <200mW(when scanner is connected PC but noscanning)
- sleep mode <12.5mW(activated by standard USB bus eventonly)
- ESD contact - 8KV and air discharge - 16KV, no permanent damage
Product Compatibility
The Futronic FS88 USB 2.0 Reader is compatible with many differentsoftwaredevelopment kits and applications. Below is the list of productsthat are currently known to support this scanner. Please notethat some applications and development kits require specific versionsof the drivers to be installed. Please contact us if you needadditional information.
Supported Software Development Kits:
VeriFinger Standard and Extended SDK
MegaMatcher Standard and Extended SDK
Supported Applications:
FbF(TM) Device Listener
