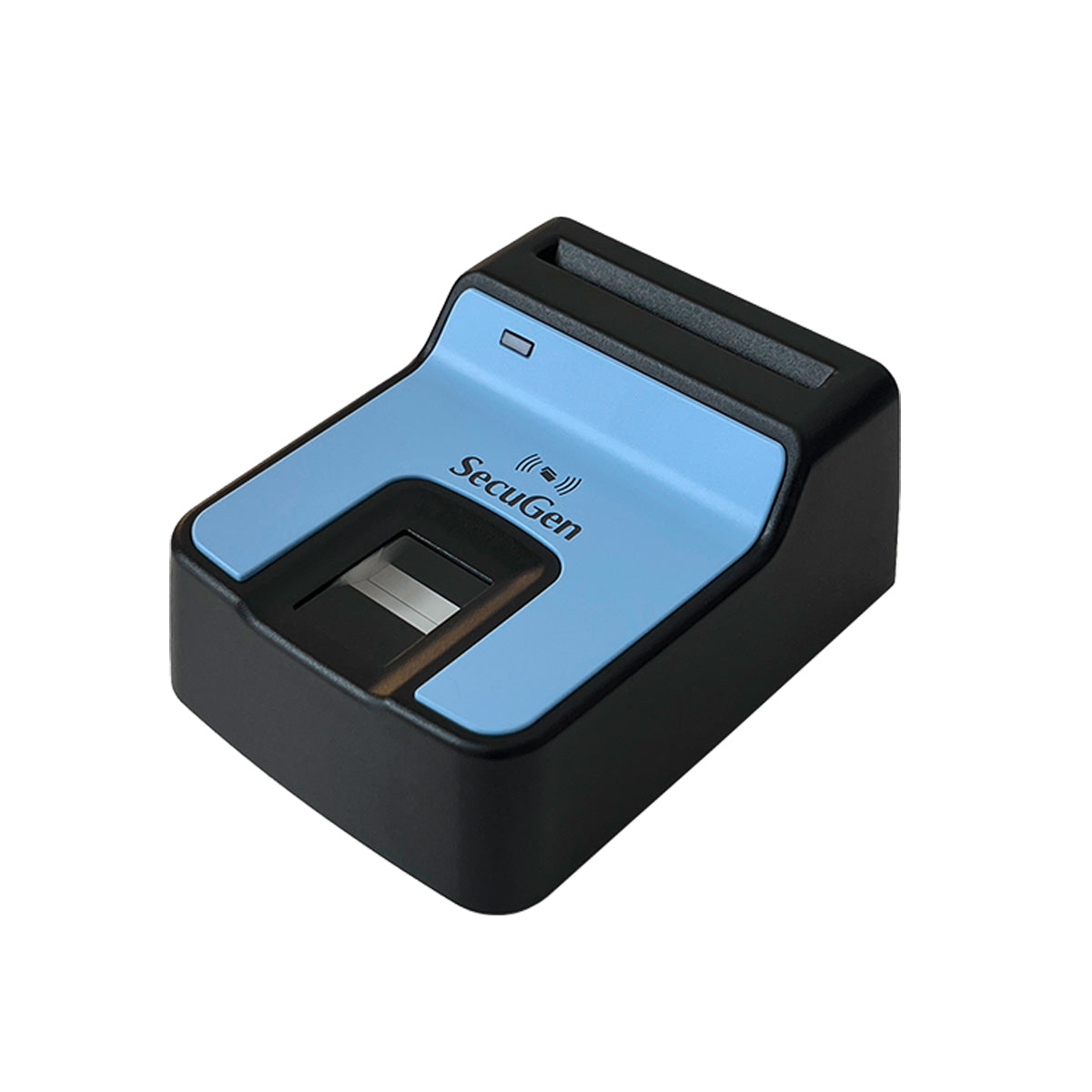

Name (Model) | Hamster Pro Trio (XU20ASCL™)
|
Dimensions / Weight | 80.0 x 100.0 x 45.5 mm / 185 g |
Interface | Hi-Speed USB 2.0 (fingerprint reader), USB 2.0 Full-Speed (card reader) |
Operating Temperature | 0° ~ 55°C
|
Operating Humidity | 90% or less RH, noncondensing |
Supply Voltage / Max. Current | 5 V DC / 300 mA |
Warranty | One year limited |
Certifications | FCC, CE, RoHS, Microsoft WHQL, FBI PIV, FIPS 201 |
Supported Operating Systems | Windows 11 / 10 / 8.1 / 8 / 7 Windows Server 2016 / 2012 / 2008 R2Linux, Android 3.1 and above |
Fingerprint Reader | |
Sensor (Type) | U20-A (contact)
|
Fingerprint Image Resolution / Size | 500 DPI / 300 x 400 pixels |
Fingerprint Platen Size (Effective Sensing Area) | 18.2 mm x 23.1 mm (15.24 mm x 20.32 mm) |
Fingerprint Capture Speed | 0.2 ~ 0.5 second with Smart Capture™ |
Supported Standards | FIPS 201 (PIV-071006), INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, FBI Mobile ID FAP 20 |
Contact Smart Card Reader | |
Model | Identiv CLOUD 2100R (uTrust 2700 R) contact reader
|
Standards | ISO/IEC 7816 ID-1, Class A/B/C support, EMV 2011 v4.3 Level 1 |
Protocol | T=0, T=1 |
Smart Card Interface | ID-1 8 pin sliding contact, Card Present switch, C4/C8 support |
Data Transfer Rate | Up to 600 kpbs (depends on card), TA1=97 |
Supported APIs | PC/SC, CT*, M-Card* (*through wrapper on top of PC/SC) |
Compliance / Certifications | EMV 2008 v4.2 Level 1, ISO/IEC 7816, USB 2.0, CCID, Microsoft WHQL, FIPS 201, FCC Class B, CE, UL94, UL 60950, VCCI, ICES, ANZ, HBCI, GSA APL, RoHS2, REACH, WEEE |
Contact Smart Card Reader | |
Model | AB Circle CIM315F-01 Compact Contactless Smart Card Reader
|
Standards | ISO/IEC 18092, ISO/IEC 14443 Type A & B, ISO/IEC 15693 |
Protocol | T=CL (translated to T=1 for PC/SC compliance) |
Card Types | ISO/IEC 14443-4 Type A & B cards, ISO/IEC 15693-3 cards, MIFARE series, FeliCa, Calypso, and NFC Forum Type Tags |
Operating Frequency | 13.56 MHz |
Reading Distance | Up to 50 mm (depending on tag type) |
Data Transfer Rate | Up to 848 kbps |
SAM Card Interface | ISO/IEC 7816, T=0, T=1 protocols |
Supported API | PC/SC |
Compliance / Certification | ISO/IEC 14443, ISO/IEC 18092, ISO/IEC 15693, ISO/IEC 7816 (SAM slot), USB 2.0 Full Speed, CCID, Microsoft WHQL |
