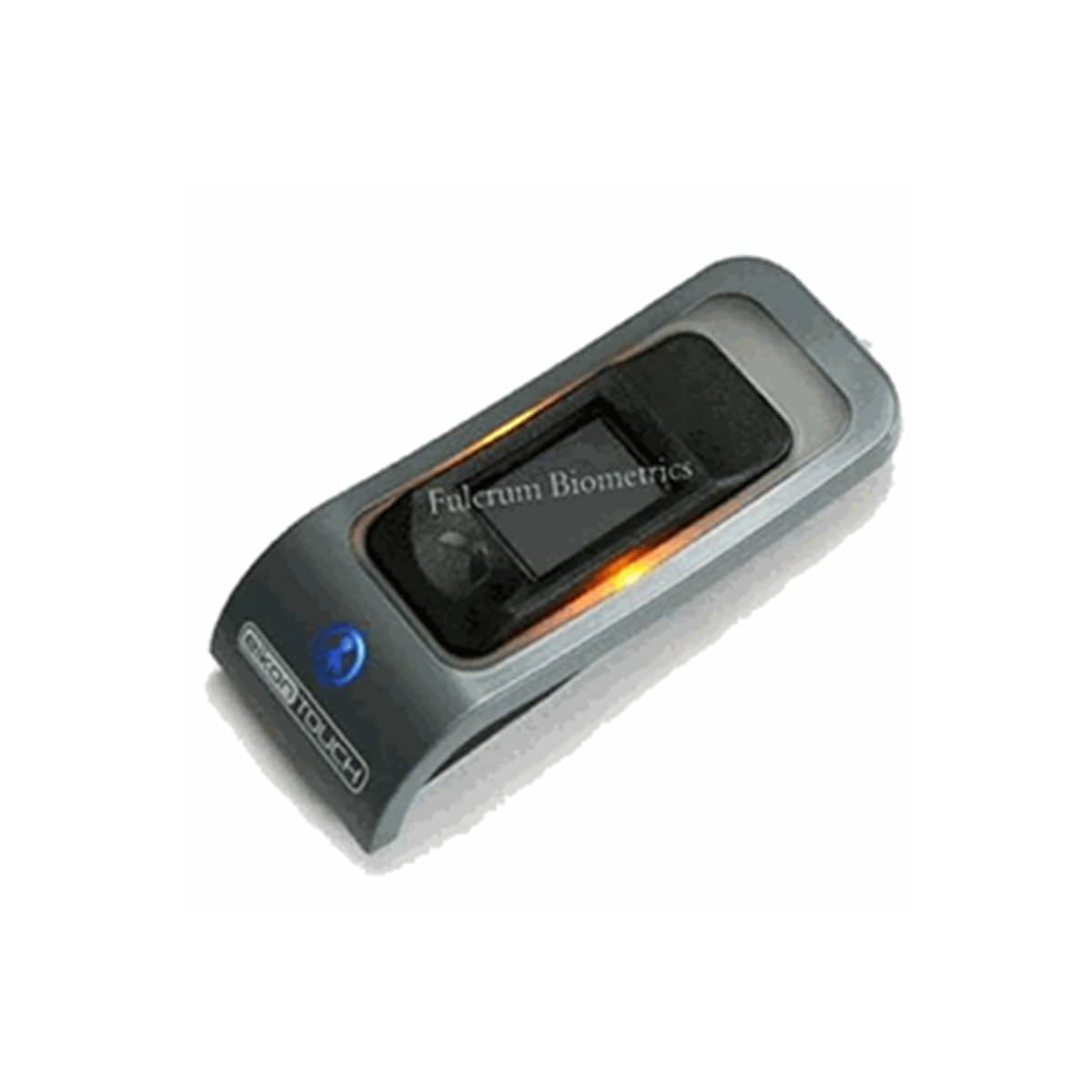

The HID EikonTouch 510 is a single touch fingerprint reader with capacitive sensor and USB 2.0 connection. The device offers security that is focused on IT and the home user. The USB fingerprint readers provide quick and reliable biometric authentication to desktop or network resources. The USB fingerprint readers use the same patented technology built into many of today's fingerprint-enabled notebook PC's, as well as many mobile phones, keyboards, POS terminals, door locks, handheld ID terminals and more.
The HID EikonTouch 510 Fingerprint Reader is the specific model used by substance abuse and mental health centers throughout Texas to sign in and out of the Texas Department of Criminal Justice AMS 2.0 system.
Product Compatibility
The HID EikonTouch 510 Reader is compatible with many different software development kits and applications. Below is the list of products that are currently known to support this scanner. Please note that some applications and development kits require specific versions of the drivers to be installed. Please contact us if you need additional information.
- Supports ebbPass Software
Supported Software Development Kits:
- VeriFinger Standard and Extended SDK
- MegaMatcher Standard and Extended SDK
- Innovatrics IDKit PC and Mobile SDK
- EikonTouch Reader Development Kit
HID EikonTouch 510 Features
Here's a look at just some of the features and benefits:
- Large image capture area delivers optimal usability.
- Touch sensor ideal for multi-user applications.
- SteelCoat protective coating provides added protection of fingerprint sensor for rugged environments.
Tech Specs
| Device name | HID EikonTouch 510 |
| Manufacturer | HID Global |
| Device connection | USB 2.0 |
| Sensor resolution | 508 dpi |
| Image capture area (Platen size) | 13 x 18 mm (0.5"" x 0.7"") |
| Sensor type | Capacitive |
| Fingerprint capture method | Touch |
| Fingerprint image size | 256 x 360 pixels |
| Device size | 84 x 34 x 14 mm (3.3"" x 1.4"" x 0.6"") |
| Device weight | 80 grams (2.8 oz) |
| Operating temperature | 0°C ~ +40°C |
| Operating humidity | 5% - 93% at +30°C |
