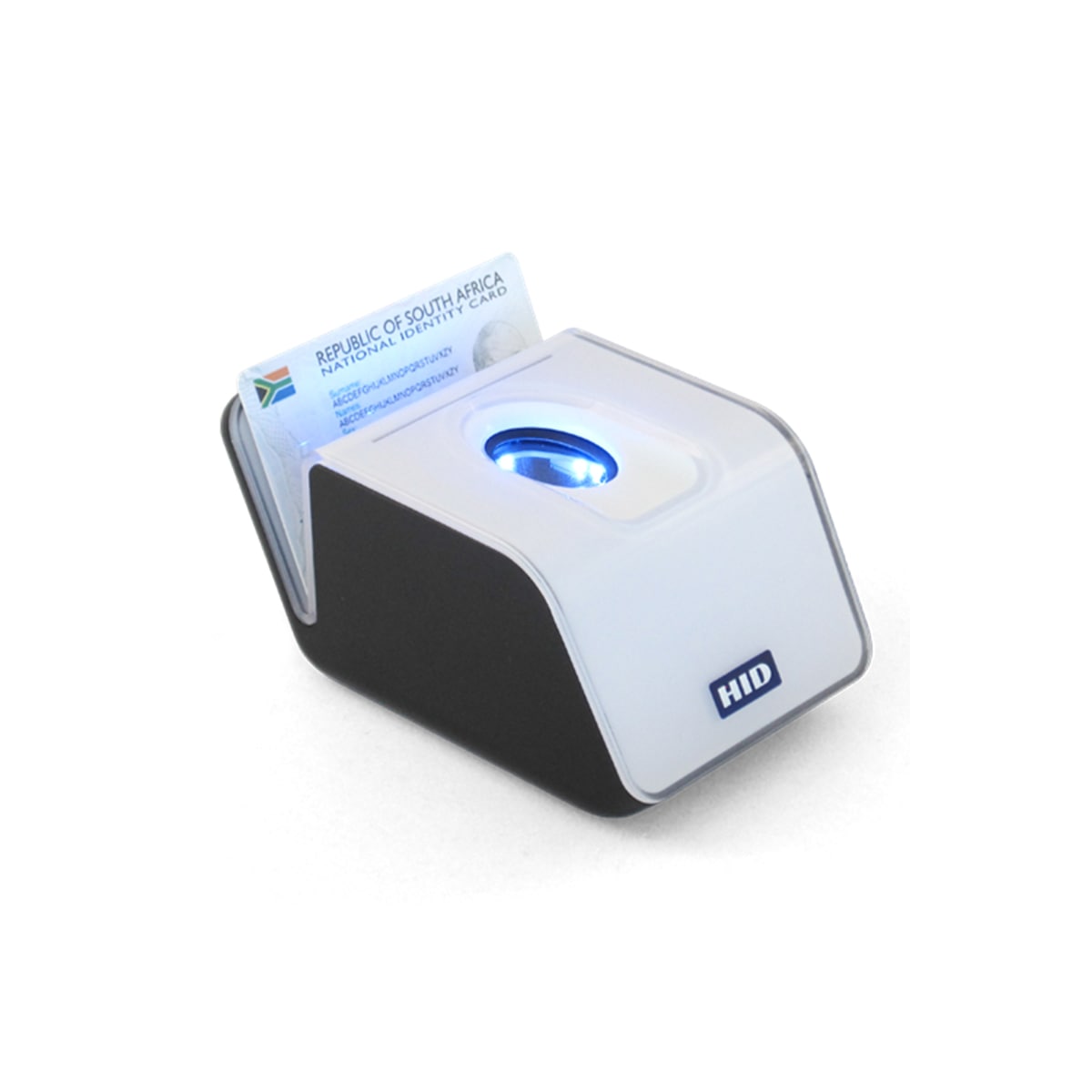

The Lumidigm V371 Fingerprint Reader combines the industry-leading biometric authentication of HID Global's multispectral fingerprint sensors and best-in-class contactless OMNIKEY® desktop card-reading technology into a single, integrated unit for strong multi-factor authentication.
Sometimes it's enough to validate a card; sometimes knowing 'who' is critical. Whatever authentication policy is employed, HID Global's Lumidigm V371 Fingerprint Reader allows easy verification of contactless cards and fingerprint biometrics on a single device.
The solution provides reliable, convenient and secure method for authenticating both a credential and the individual presenting it. The Lumidigm V371 Fingerprint Reader is ideal for applications leveraging biometric citizen ID cards.
Key Benefits
- Secure and Convenient - Provides reliable biometric authentication information that can be used to verify the identity of anyone, anytime. Simply place a card in the cradle and a finger on the plate and legitimate users can be on their way.
- Eliminates Fraud - Multi-factor solution protects against fake fingerprints and detects the use of shared or stolen ID cards.
- Real Identity Verification - Augment existing credentials with a biometric enrollment for multi-factor verification of the user and their card.
Watch a video on the Lumidigm V-Series V371 Fingerprint Sensor on YouTube
Tech Specs
FINGERPRINT IMAGING SYSTEM
| Technology | V-Series V302 |
| Image resolution / bit depth | 500 dpi / 8-bit, 256 grayscale |
| Platen area | 0.7" x 1.1" (18mm x 28mm) ellipse |
BIOMETRIC FUNCTIONS
| Image out | ANSI 381 compliant, ISO 19794-4:2011, FBI certified WSQ, Flat Binary |
| Template out | Uses ANSI 378+ templates as input |
| Score or verification (1:1) | Requires ANSI 378 template input |
| Identification (1:N) | Uses ANSI 3 78+ t empla tes as input |
| Liveness detection | Included |
| Latent protection | Included |
FINGERPRINT TEMPLATE STORAGE
| Verification (1:1) | n/a on device; unlimited on PC |
| Identification (1:N) | Up to 5000 users on USB host (SDK 6+); up to 1000 users per group, unlimited groups (SDK 5) Note: 1:N templates not compatible between SDK 5 and SDK 6 |
CARD READING SYSTEM
| Contactless card interfacE | 13.56 MHz |
| Supported smartcards | ISO14443A/B ISO156 93 |
| Supported credentials | MIFARE® Classic, MIFARE DESFire® 0.6, and MIFARE DESFire EV1 contactless cards |
| Transmission rate | Up to 848 kb/s |
ENVIRONMENTAL RANGE
| Ingress protection | IP65 at the platen / IP53 enclosure |
| Operating temperature | 0 to 60°C |
| Storage temperature | -20 to 80°C |
| ESD Immunity | IEC 61000-4-2 4kV/8kV |
INTERFACE
| USB | High-speed USB 2.0 Bus Powered |
| Indicator Lights | Blue / Green / Red |
| Operating Systems Supported | Windows 10 (32b/64b); Windows 8 (32b/64b); Windows 7 (32b/64b); Windows XP/2000 (Deprecated) |
| Encryption | Encrypted video for privacy/playback protectio |
FORM FACTOR
| Overall Dimensions | 79.2 mm x 124.3 mm x 63.2 mm (3.12"" x 4.89"" x 2.49"") |
| Housing | Plastic, IP53 |
POWER SUPPLY REQUIREMENTS
| Supply current - operational | +5 VDC 500 mA (peak) |
| Supply current idle | +5 VDC 250 mA (typical) |
STANDARDS COMPLIANCE
| Interoperability | ANSI 378, ISO 19794-2:2011, ANSI 381, ISO 19794-4:2011, NFIQ compliant, MINEX III-certified algorithm |
| Device certifications | CE, FCC Part 15 Subpart C, RSS Gen, RSS 210, R&TTE Directive including EN 300 330, EN 301 489, RoHS, DEA, EPCS, Microsoft WHQL |
MINIMUM SYSTEM REQUIREMENTS
| Interface | High-speed USB 2.0 (480 Mbps |
| Memory | 64 MB free RAM |
| Operating System | Supported OS required (see Interface) |
