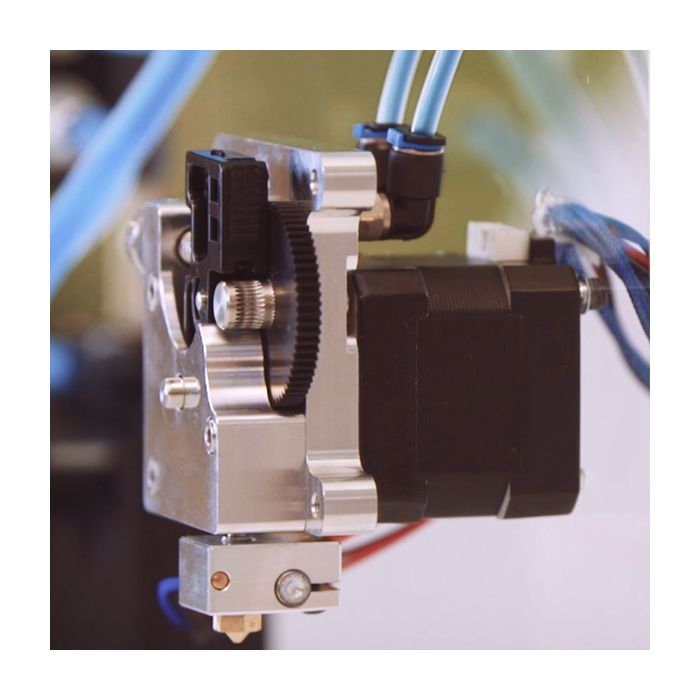

E3D Titan Aqua, 1.75 mm, 12v, Mirrored
Titan Aqua is a two-in-one water-cooled hotend and extruder by E3D. It's quiet, efficient, and all-metal so that you can print at the highest of temperatures. Aqua has been designed alongside our Water-Cooling Kit for use in warm and heated chambers where air-cooling is less effective, and effectively cools both its heat sink and extruder simultaneously.
Compact & Less Bulky
We've removed as much bulk as possible from the print head, and increased the Z-height by 25mm compared to V6.
High-Temperature Performance
Keeps your cold-side cold and your hot-side hot, for exceptional thermal performance.
Custom Design
All-metal HotEnd, designed for use in warm and heated environments.
Modular Ecosystem
Aqua is a full member of the E3D ecosystem, particularly well suited for use with plated copper parts.
Watercooled Power and Performance
Titan Aqua is the first integrated, water-cooled HotEnd and extruder. Created by E3D to make professional 3D printing easier to achieve, for everyone.
01. Water Cooling
Titan Aqua stays cool when the ambient temperature is high. It offers outstanding thermal performance, as both the heatsink and motor are water-cooled. Aqua is designed for use in warm and heated chambers, making it easy to print with every kind of high-strength plastic. The whole system is highly efficient and very quiet.
02. E3D Ecosystem Compatible.
Titan Aqua is built on the E3D V6 all metal design, allowing you to reliably 3D print any thermoplastic at temperatures of more than 300°C. Like its cousin the Titan Aero, Titan Aqua makes use of a V6 heat break. This means the entire hot side is identical to a V6, and can be upgraded with E3D's full range of high-temperature parts.
03. Titan Pedigree.
Titan Aqua retains all the features of a Titan extruder, including the idler mechanism, easy filament change, sharp-toothed custom-machined hobb, and precision 3:1 gearing ratio. With thousands of in-house hours' experience printing with Titan, we have honed the design for peak performance.
04. Easy to Use, Maximum Performance
Water-cooled performance has never been so simple or so effective. Its compact design maximises filament constraint and sharp thermal transition, both crucial for printing precision. Aqua can be assembled independently and then mounted inside your printer as a single unit.
What's in the box?
Machined Parts
- Main body
- Sealing plate
- Filament guide
- Hobbed shaft with Derlin gear
- Pinion gear
- V6 aluminium heater block
- V6 heatbreak
- V6 brass nozzle
Fixings
- V6 universal fixings kit
- 2 x M5 4mm Push-fit elbow fittings
- 2 x MR95ZZ bearings
- M3x3 Grub screw
- 4 x M4x15 Socket head cap screws (for mounting)
- 2 x M3xM25 Socket head cap screws
- M3x16 Socket head cap screws
- Circlip
- Titan idler spring
Electrical Parts
- E3D 'Compact but Powerful' NEMA17 motor
- Motor cable
- Thermistor and connector cable
- 30W heater cartridge
Unassembled Kit
- Silicone sealing gasket
- Titan idler arm
- V6 Silicone sock
- Thermal compound paste
- 100mm PTFE tubing (not shown)
Please note that the Titan Aqua is used with the E3D Water Cooling Kit which is sold separately.
