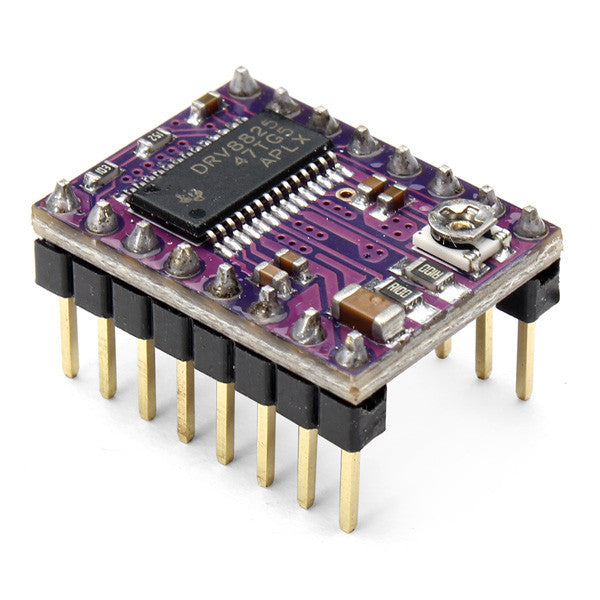

The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver. The module has a pin-out and interface that are nearly identical to those of our A4988 stepper motor driver board, so it can be used as a higher-performance drop-in replacement for those boards in many applications. The DRV8825 features adjustable current limiting, over-current and over-temperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
- Simple step and direction control interface
- Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
- Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
- Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
- 45?V maximum supply voltage
- Built-in regulator (no external logic voltage supply needed)
- Can interface directly with 3.3?V and 5?V systems
- Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
- Short-to-ground and shorted-load protection
- 4-layer, 2?oz copper PCB for improved heat dissipation
- Exposed solder-able ground pad below the driver IC on the bottom of the PCB
Dimensions
| Size: | 0.6″ × 0.8″ |
|---|
| Weight: | 1.6 g |
|---|
General specifications
| Minimum operating voltage: | 8.2 V |
|---|
| Maximum operating voltage: | 45 V |
|---|
| Continuous current per phase: | 1.5 A |
|---|
| Maximum current per phase: | 2.2 A |
|---|
| Minimum logic voltage: | 2.5 V |
|---|
| Maximum logic voltage: | 5.25 V |
|---|
| Microstep resolutions: | full, 1/2, 1/4, 1/8, 1/16, and 1/32 |
|---|
| Reverse voltage protection?: | N |
|---|
| Bulk packaged: | N |
|---|
| Header pins soldered: | N |
|---|
?
?
