NON-RETURNABLE/NON-REFUNDABLE
This product is EOL. Quantities are very limited.

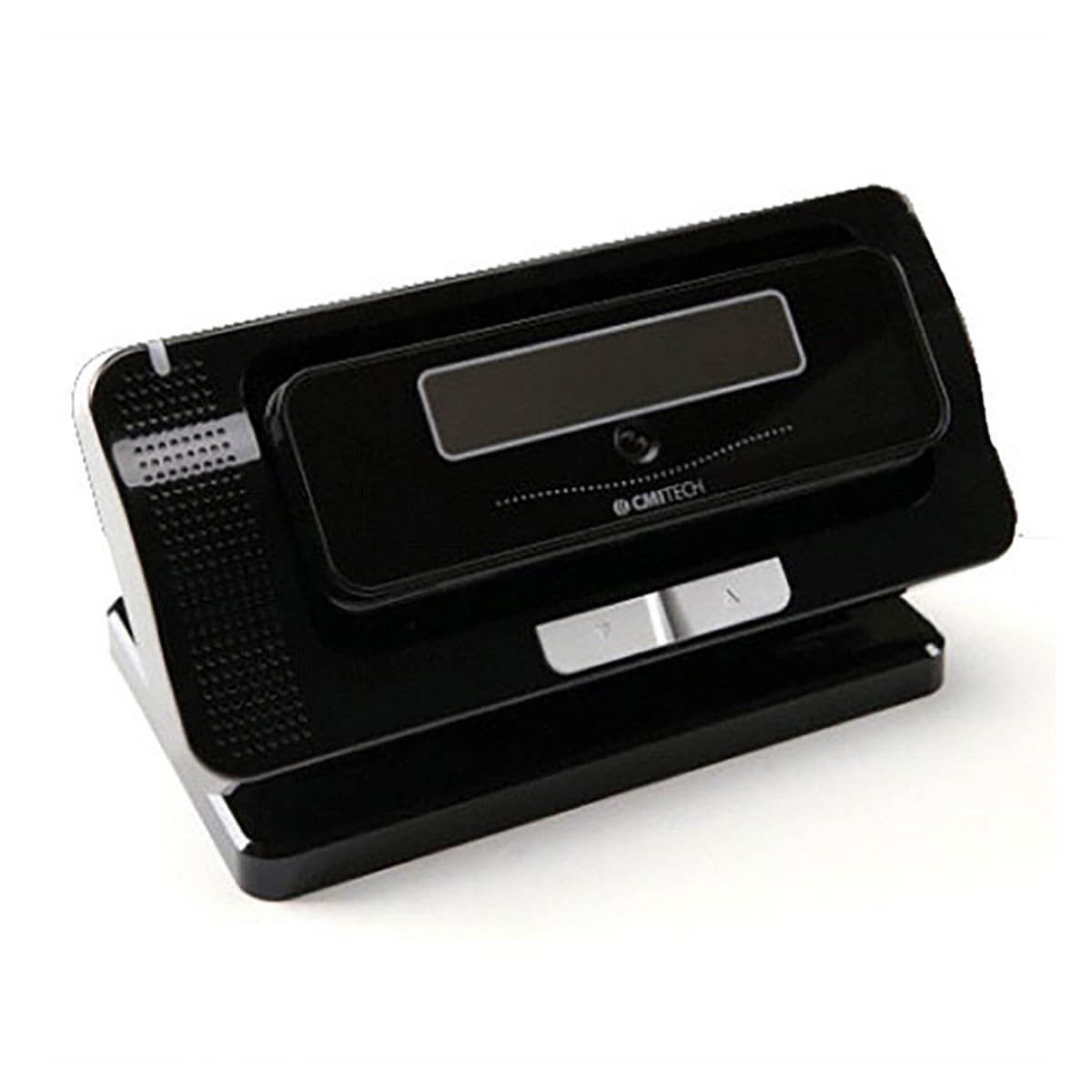

The CMITech EMX-30 is a USB tethered dual eye iris biometrics imaging device that quickly captures highest quality iris biometric images. Easy to use, the system’s simple and intuitive user interface makes positioning fast and repeatable, even for subjects with little or no acclimation. The advanced image capture and processing architecture offers the fastest iris biometric capture speeds in the industry.
Operating at a range of 32 to 35 cm, the EMX-30 is fully hands-free and contactless. The exclusive face-finding functionality locates each subject’s position and automatically tilts the imager head to adjust for subject height. This functionality is optical, which allows the EMX-30 to be placed behind an optical glass or plastic window, making it ideal for placement behind an environmental shield.
Developed with the latest in system design technologies by one of the leaders in the industry, the EMX-30 is physically robust, highly reliable and durable. It is configured as a USB tethered device, making the EMX-30 highly cost effective.
NOTE: The EMX-30 does not come with the desktop base. Please add the option above to your order.
CMITech EMX-30 Features
- State-of-the-art optical design
- Advanced, proprietary stereoscopic eye localization
- Simple and repeatable subject user interface
- Simples of user instructions
- Proprietary optics for positioning indicators eliminate parallax viewing problems
- Automatic vertical height adjustment
- Stand-off distance of 32 to 35 mm
- Large depth of capture of 30 mm
- High speed, simultaneous dual sensors
- Near-real time off-axis gaze detection
- Motion detection
- Face image capture
- Very wide interpupillary distance range of 45 to 85 mm
- Compact, lightweight design
- Module version for integration into kiosks or other enclosures
- Optional Extended Depth of Capture to 6.0 cm (new)
Tech Specs
| Dimensions | 219 x 161 x 58 mm (8.6 x 6.3 x 2.3 inches) |
| Image output | Meets ISO 19794-6; exceeds 4.0 Ip/mm @ >60% contrast |
| Iris diameter | 240 pixels for average 11.5 diameter iris (200 to 285 pixels for full range of 9.5 to 13.5 mm diameter irises) |
| Iris image pixel resolution | 640 x 480 pixels, 8 bits. Supports multiple formats |
Operational iris imaging distance
(stand-off range) | 315 to 345 mm (12.4 to 13.6 inches) in Normal mode |
| Depth of field | 30 mm (1.2 inches) |
| Inter-pupillary distance covered | 45 to 85 mm (1.8 to 3.4 inches) |
| Time of capture | About 0.5 second, typical, from time subject’s eyes are placed within capture volume |
| IR illumination for iris imaging | Dual LED: wavelengths of 850 nm nominal (about 50%); and 750 nm nominal (about 50%) |
| Maximum user positioning speed | 125 mm per second (4.9 inches per sec.) in “Z direction” |
