The CMITech BMT-20 is a binoculars-type iris biometricsimaging device that quickly captures highest quality iris biometric images.Exceeding industry standards for image quality, this system optimizes matchingaccuracy, essential in very large scale deployments for which de-duplication isa core deliverable. Easy to use, the system can be reliably positioned by thesubject with minimal instructions, or by an operator with the aid ofpositioning feedback LEDs on the top of the imager's housing.
The patentpending optical design of the BMT-20 includesexpanded depth of field and a very large interpupillary distance range,providing effortless capture for subjects of all ages. Intended forapplications in which subjects have limited prior experience with biometricsdevices, the BMT-20 is ideal for enrollment programs of all sizes, includingthose involving very young children. Designed with the latest in optical andsystem control technology by one of the leaders in the industry, the BMT-20 isphysically robust, highly reliable and durable.
This system meets the elevated IP64 intrusion protectionstandard and is sealed against dust and other airborne particles to provideextended life in harsh environmental conditions. CMITech's products andtechnology are leading the industry in cost effective and easy to use irisrecognition solutions serving the full range of identification andauthentication use cases, including physical and logical access control,national identity, law enforcement, border crossing and immigration control applications.

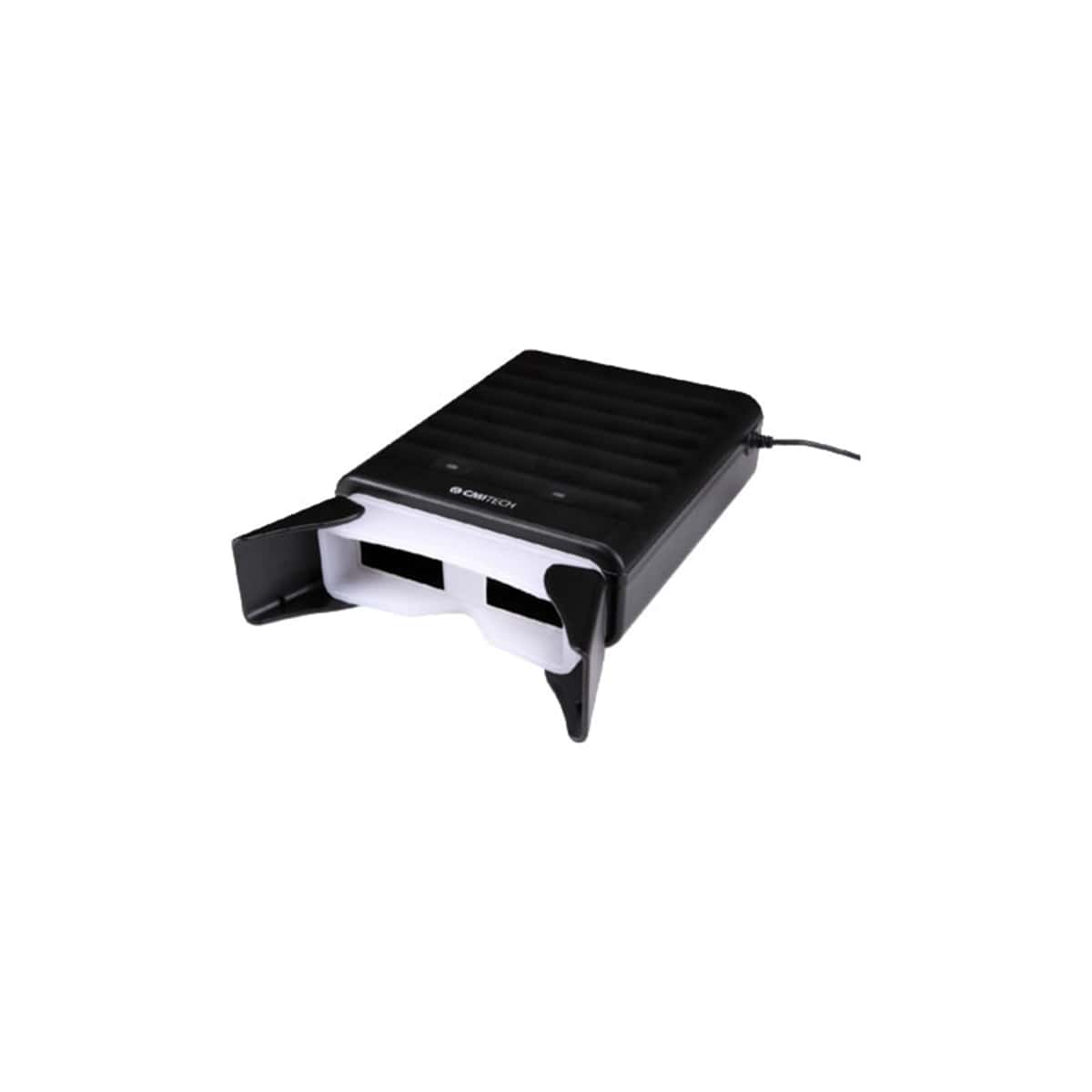

CMITech BMT-20
- State-of-the-art-optical design
- Single sensor design
- Long internal optical path
- Dedicated, on-board image processor supports veryhigh speed, simultaneous capture of subject's irises
- Extended depth of field
- Wide inter-pupillary distance tolerance
- All solid-state design-no moving parts
- Meets IP64-6 specifications for particulateintrusion prevention
- Near-real time off-axis gaze detection
- Internal white LED
- Motion detection
- Foldable side visors and forehead positioning rest
- External color LED positioning indicators
- Position sensor
- High temperature range
- Powered by USB 2.0 cable
Tech Specs
| Dimensions | 210x 161 x 58 mm (8.6 x 6.3 x 2.3 inches) |
| Imageoutput | Meetsor exceeds ISO 19794-6 |
| MTF/spatialresolution | Exceeds4.0 Ip/mm @ > 60% contrast |
| Irisimage pixel resolution | 640x 480 pixels, 8 bits. Supports multiple formats |
| Operational path distance | 350to 380 mm |
| Depthof field | 30 mm (1.2 inches) |
| Inter-pupillarydistance covered | 40to 90 mm (1.6 to 3.5 inches) |
| Timeof capture | About1.0 second, from time of head placement |
| IRillumination for iris imaging | DualLED: wavelengths of 850 nm nominal (about 50%); and 750 nm nominal (about 50%) |
| InternalLED for pupil contraction | Broadbandvisible (white) |
