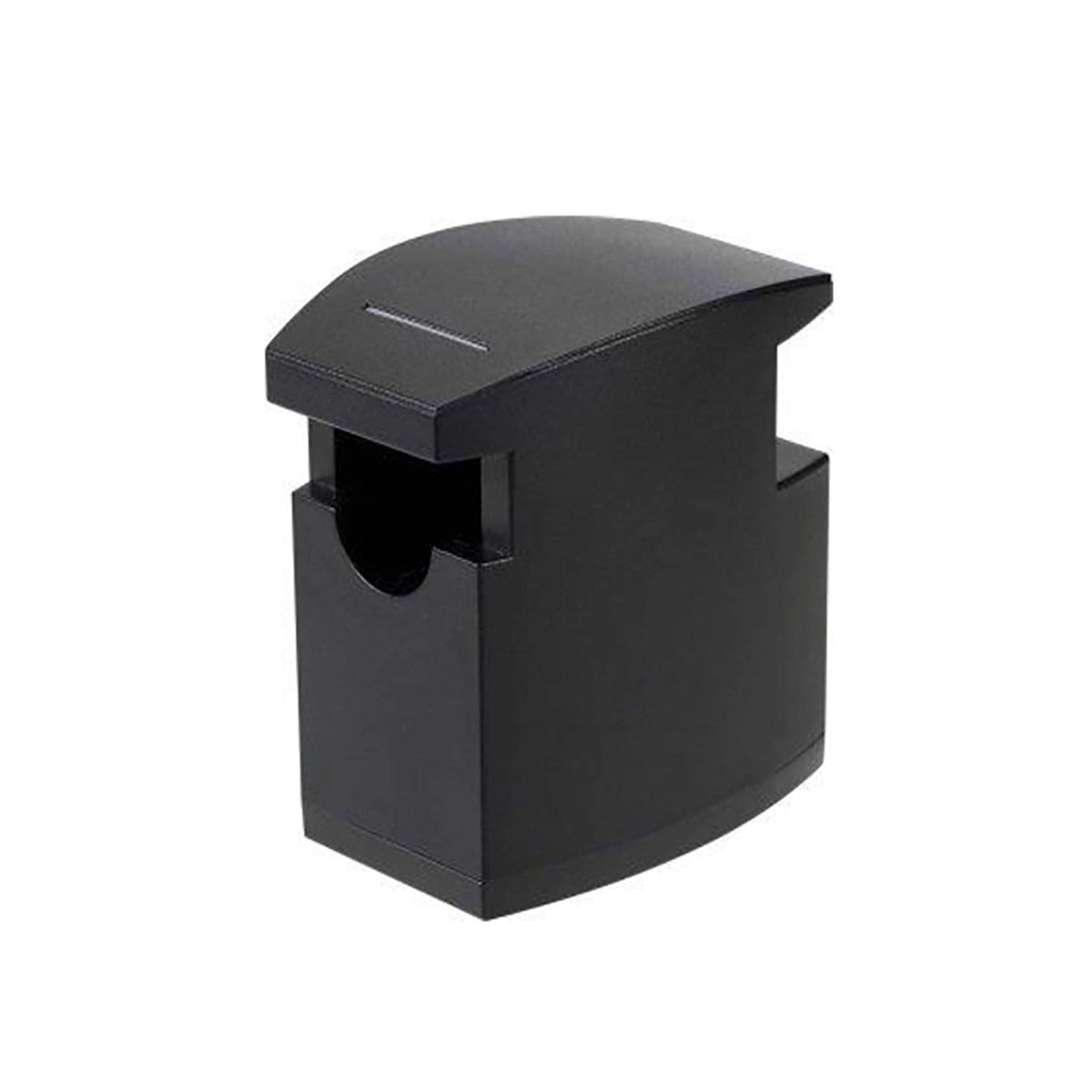

Finger vein recognition is a highly secure biometric identification technology. The Futronic VS80 finger veinscanner is designed to capture the best finger vein images for this application. An infrared light source isused in the VS80 which works together with a high quality CMOS image sensor to provide a clear and highcontrast finger vein image for matching. It is carefully designed to remove the unwanted backgroundimage which may decrease the matching accuracy. Finger vein matching software is also availablefrom Futronic as a separate product.
- Scanning window size is 20 x 40 mm
- Image resolution is 200 x 400 pixels, 8 bits grey level.
- Raw file size is 80K bytes
- USB 2.0 compatible, plug and play device
- With a 2M standard USB cable
- Small size, 85 x 54 x 91 mm
- Light weight, 187 gram
- Operation temperature: -10 to +55 Degree Celsius
- Relative Humidity: 0-90% non-condensing
VS80 can work on the following platforms:
- Windows XP /2003, 32 bit and 64 bit
- Windows Vista /2008 /2012, 32 bit and 64 bit
- Windows 7 /8 /10, 32 bit and 64 bit
- Linux with kernel 2.4 or higher (for both x86 ARM9)
- Android 3.1 and higher with USB Host port
Tech Specs
| Light source | Infrared LED |
| Supply voltage | DC 4.5-5.5V via USB port |
| Power consumption | - Active <1250mW (during scanning),
- Standby <220mW,
- Sleep mode <2.5 mW
|
| ESD contact | 8KV no permanent damage |
| ESD air discharge | 16KV no permanent damage |
| Certifications | |
