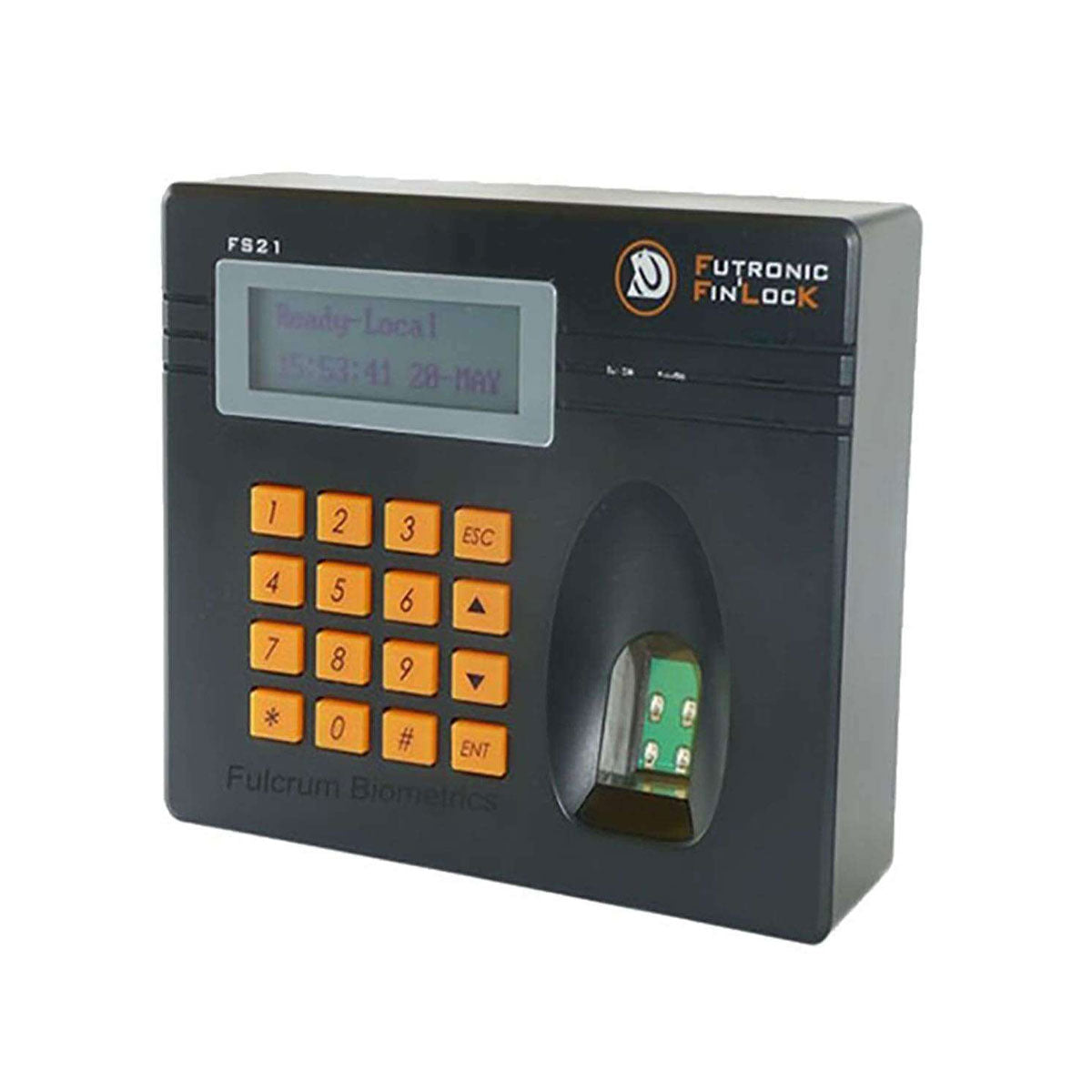

With high resolution optical system & latest biometrictechnology, Futronic Fin'Lock FS21 Fingerprint Access Control Systemprovides enterprises a secured but convenient access and attendancecontrol solution. It supports MiFare card(a contactless smart cardtechnology developed by Philips) so that any combination offingerprint, MiFare card and PIN can be used for access and attendancecontrol. If necessary, fingerprint can also be stored in MiFare card toeliminate any possible privacy issue.
The FS21 uses a Digital Signal Processor for fingerprintrecognition. It can do full-match for 500 fingerprints in one second.Full-match means the device matches the input fingerprint to allfingerprints stored in the database before giving result. That is, thematching does not stop even after getting preset matching score butwill continue to match all fingerprints and return the fingerprint thathas the highest score. This is a major advantage of Fin'Lock productscomparing with most other similar products available in the marketwhich stop the matching when preset score is reached. It is becauseFull-Match is the most accurate way of fingerprint recognition and canreduce the False Acceptance Ratio (FAR) to almost zero. It is a perfectsolution for application that needs to do 1-to-many matching with alarge fingerprint database.
Futronic FS21M can operate in both Local and Network mode. Withstandard Ethernet interface, FS21Ms can be connected as a cluster viaLAN/Internet under the control of a single Fingerprint AuthenticationServer(FAS) which is Futronic proprietary software running on Windows2000/XP and Vista.
In network mode, fingerprints can be stored and recognized in theFAS which can handle unlimited number of fingerprints. In local mode,each FS21M can store up to 3000 fingerprints itself and can be used asa standalone access and attendance control device.
Futronic FS21 Key Features
- FS21M supports Futronic proprietary Live Finger Detection(LFD).If this function is activated, only live fingers can be used to accessand FS21M will not capture the image from fake fingers. So fake fingersmade from silicone and rubber can't be used to access.
- With MiFare card reader and writer. That is, all FS21M can beused to issue MiFare card for users.
- Support various access control methods to meet differentapplication needs, some examples are:
- Fingerprint only(1-to-N matching)
- ID+ Fingerprint(1-to-1 matching)
- MiFare card+Fingerprint(1-to-1 matching)
- MiFare card+Fingerprint stored on card(1-to-1 matching)
- MiFare card+PIN
- MiFare card only
- PIN only
- Each user can register up to 3 fingerprints
- User/Finger administration such as add, delete, edit, etc, can bedone in FS21M and FAS/PC.
- User/Finger database can be synchronized between FS21M and FAS/PCvia LAN/Internet
- All communication between FS21M and FAS is encrypted by Blowfishalgorithm and the key exchange between them is done by Diffie-Hellmanalgorithm.
- Can operate in local mode or network mode
- Support Wiegand interface with 5 selectable output formats.
- Support Futronic's Remote Relay Unit FS30.
- There are black and silver colour enclosure for customer toselect.
Tech Specs
Product Name
| FS21M Lin"Lock Access ControlUnit
|
Manufacturer
| Futronic Technology CompanyLimited
|
Fingerprint Image Resolution
| 320x480 pixel,500DPI |
Scanning window size
| 16mm x 24mm |
Recognition Accuracy
| FAR-10-6, FRR-10-2 |
Display
| 122 x 32 dot matrix LCD withbacklight |
User Input & Prompt
| 16 keys keypad, Buzzer, red andgreen LED |
MiFare sensing range
| 30 mm
|
Interface to PC/Server
| Ethernet
|
Door Control
| 1 Door Strike, 1 Door Switch and12VDC/1.5A |
Operating temperature
| -10 to +55 Degrees |
Dimensions (W x H x D)
| 140 x 110 x 41.5mm
|
Enclosure
| 3mm Thick ABS
|
FS21 Operation in Local mode
- Each FS21M can store up to 3000 fingerprints
- Fingerprint recognition is done on FS21M(input finger is matchedto database stored in FS21M). If using the MiFare card with/withoutfingerprint, the user authentication is also done locally.
- Access log is stored locally. Each FS21M can store up to 1million access log records
- Access Log in FS21M can be sent to FAS via LAN/Internet and thenexported as Excel or text format
FS21 Operation in Networkmode
- Unlimited number of fingerprints can be stored in FingerAuthentication server(FAS)
- Fingerprint recognition is done on FAS(input finger is matched todatabase stored in FAS)
- If using the MiFare card with/without fingerprint, the userauthentication is also done in FAS.
- Access log is stored in FAS which can store unlimited number ofaccess log records.
- Access Log in FAS can be exported as Excel or text format
- A maximum of 99 Fin'locks can be connected to FAS to form acluster for large-scale access control application
- If LAN/Internet connection is accidentally broken, all FS21Mswill switch to operate in local mode automatically
