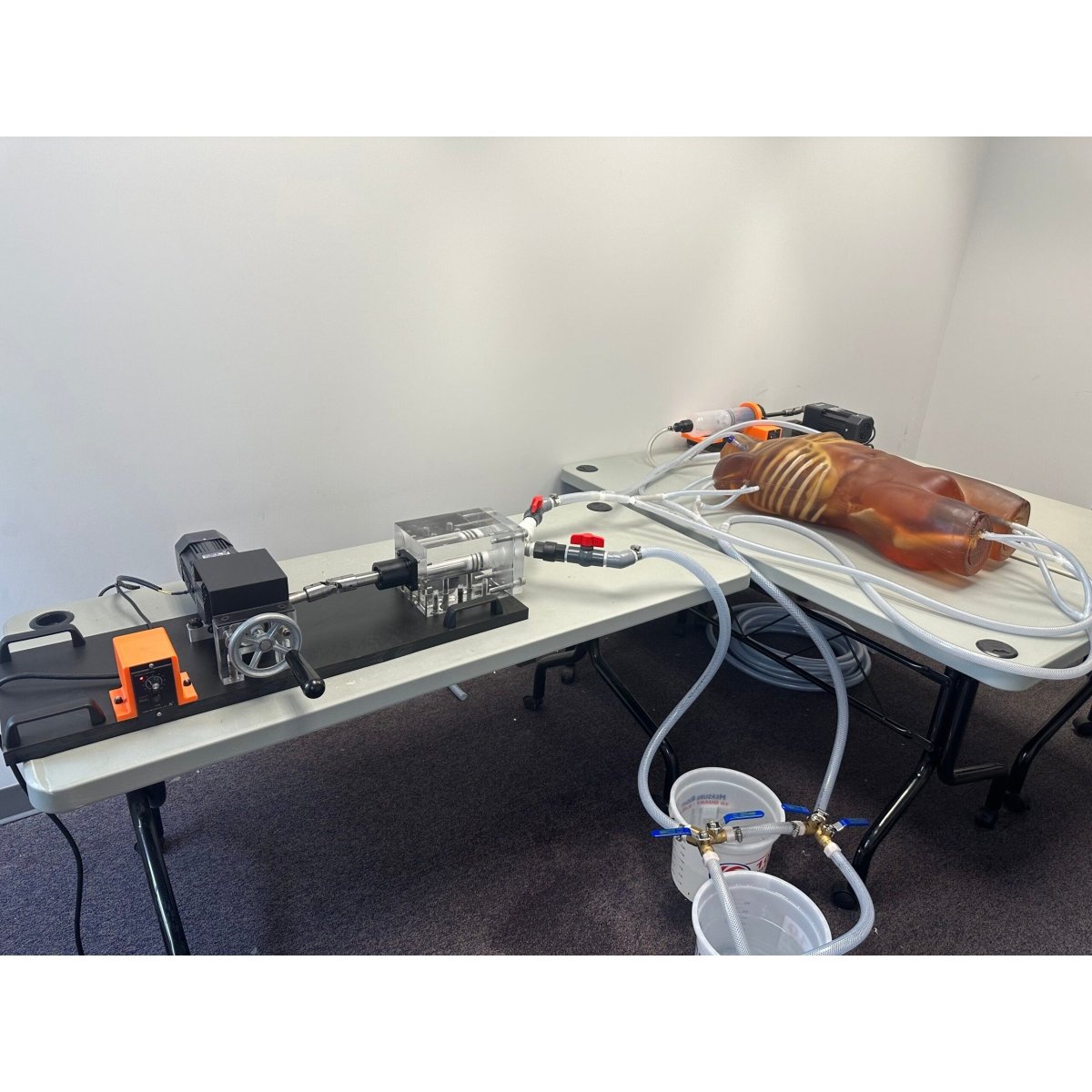

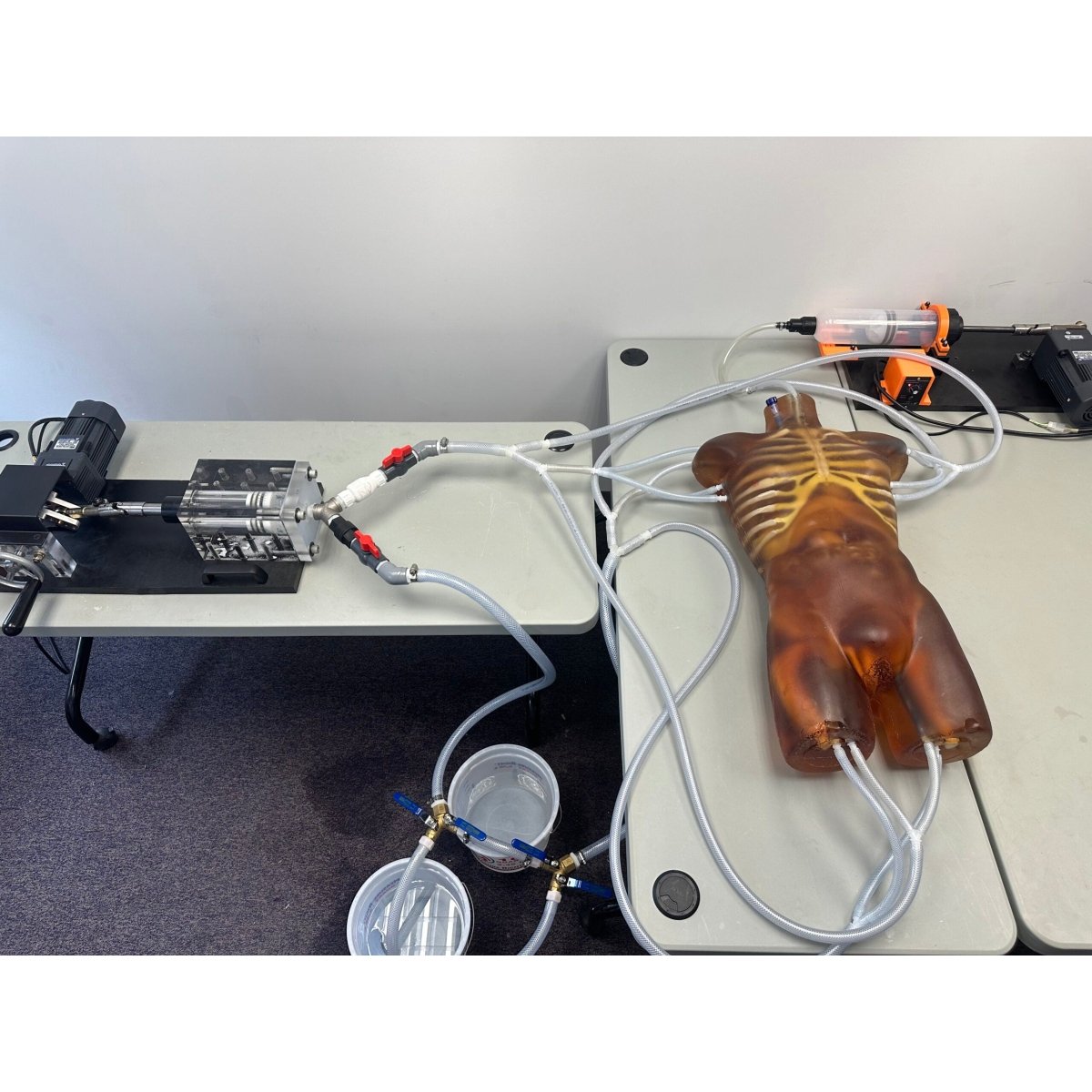

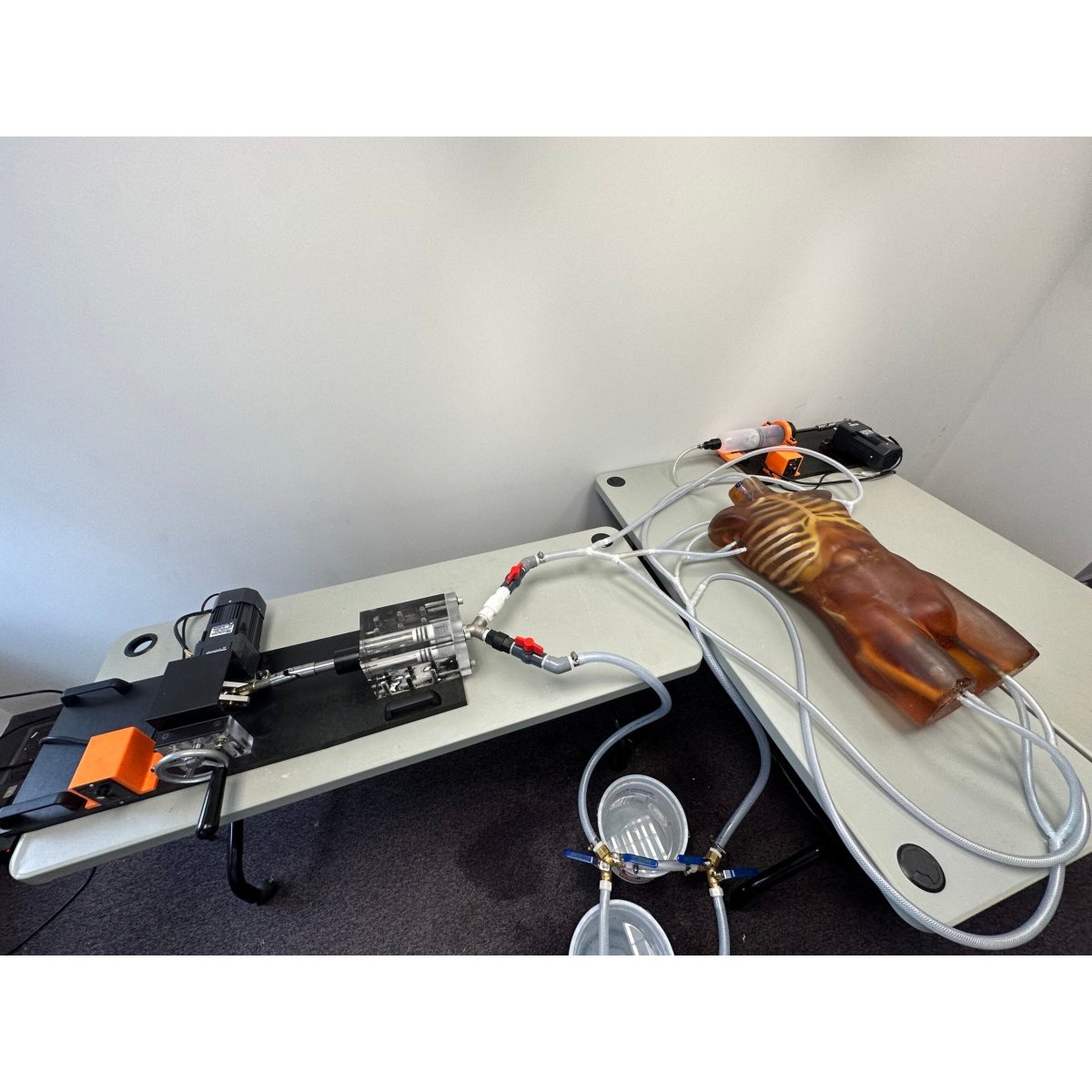

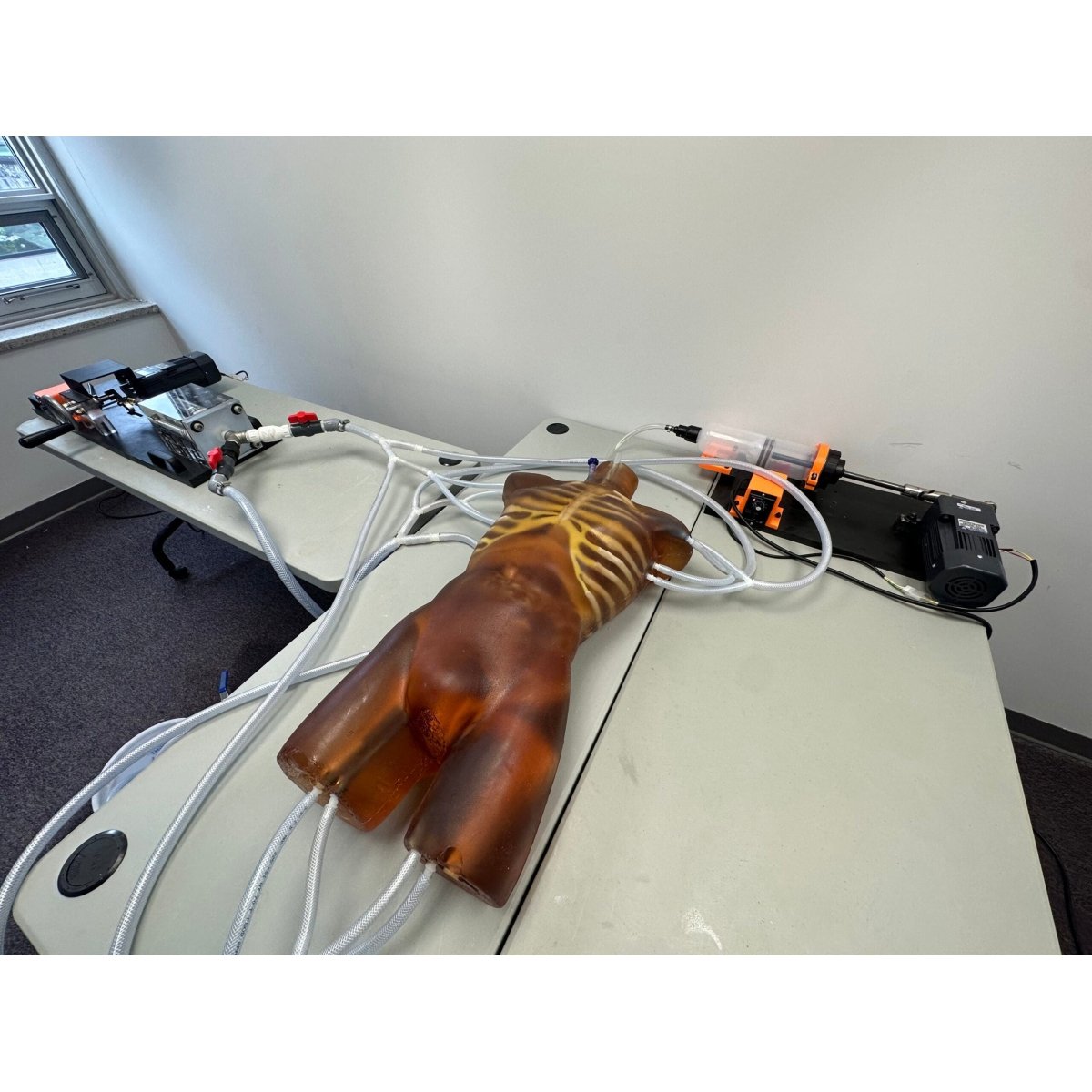

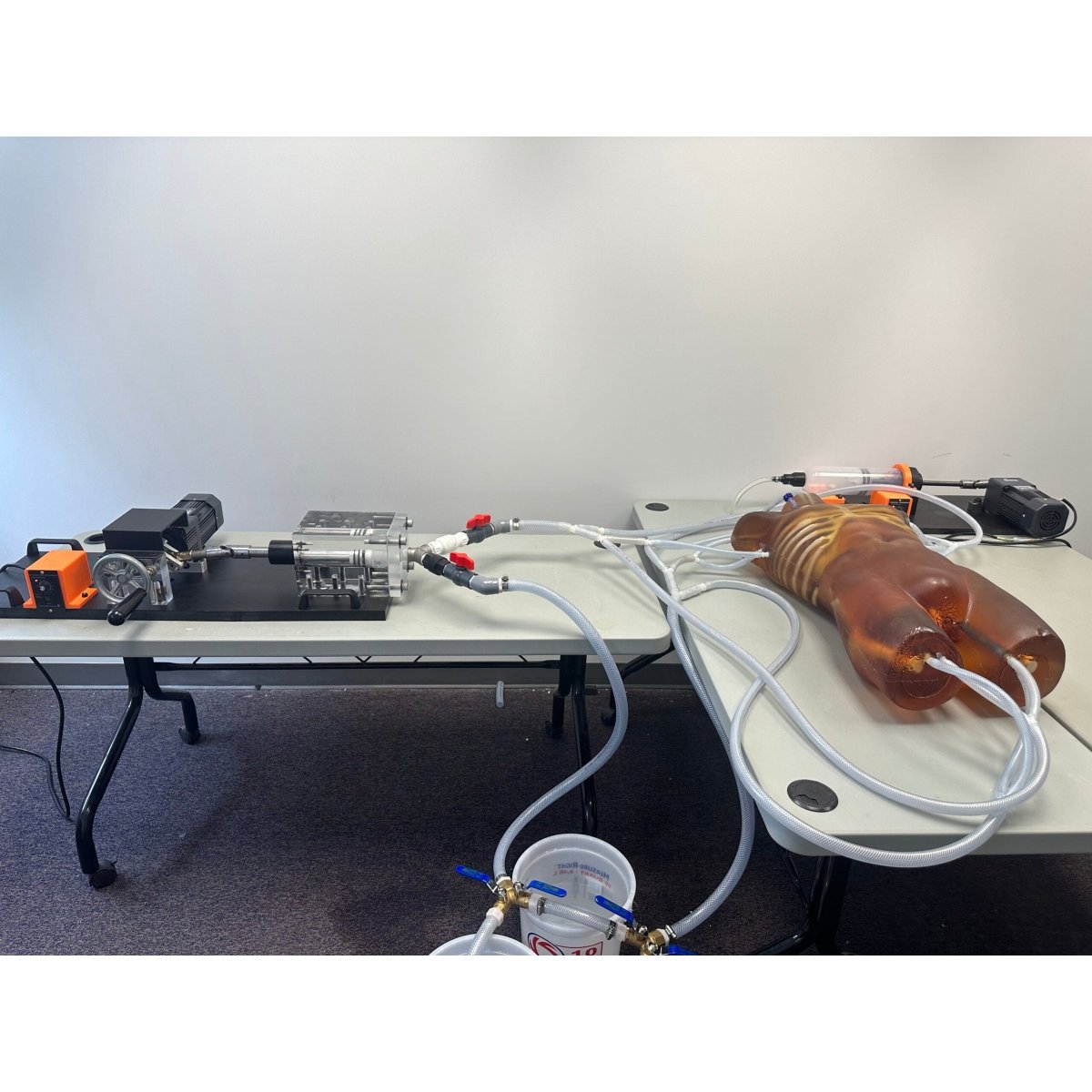

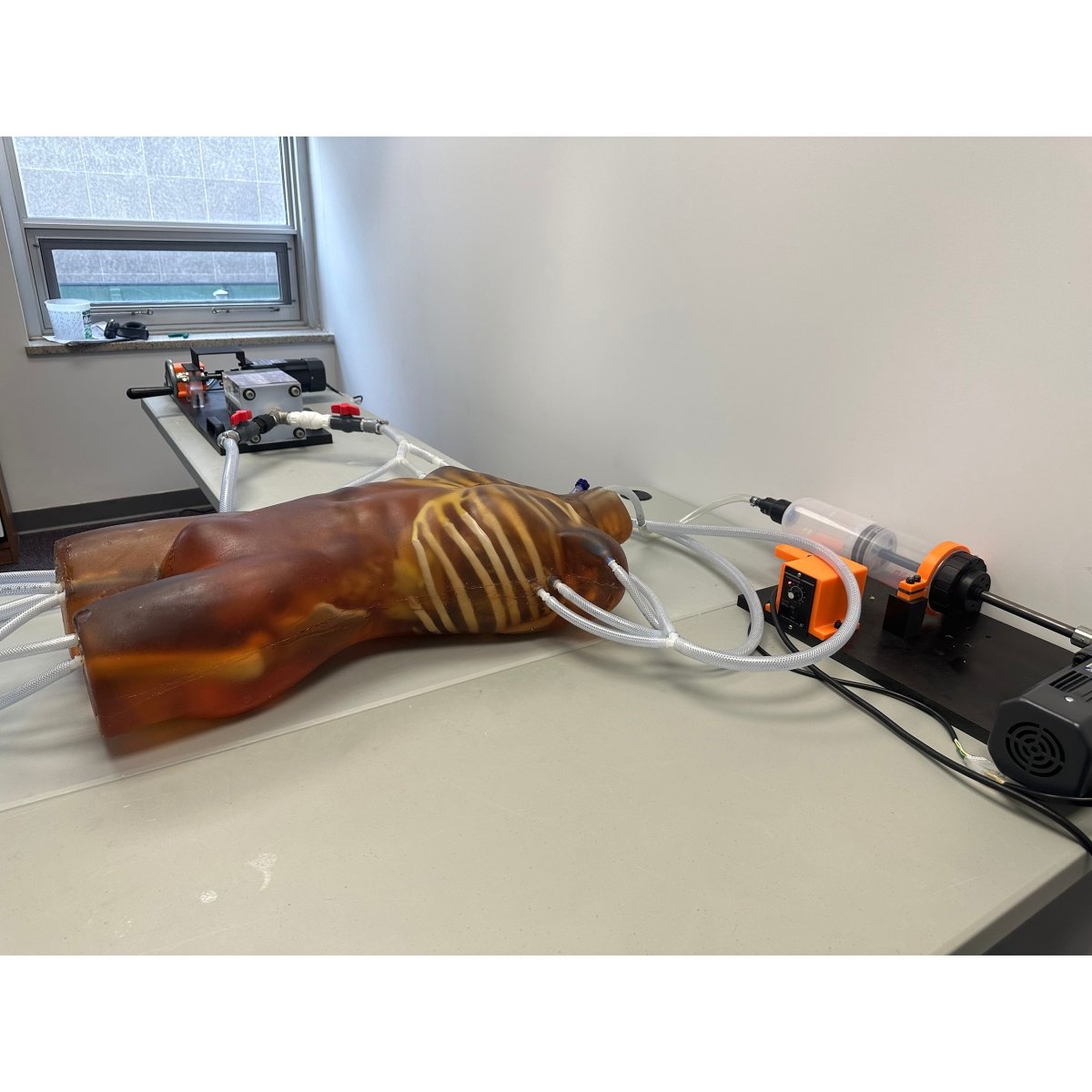

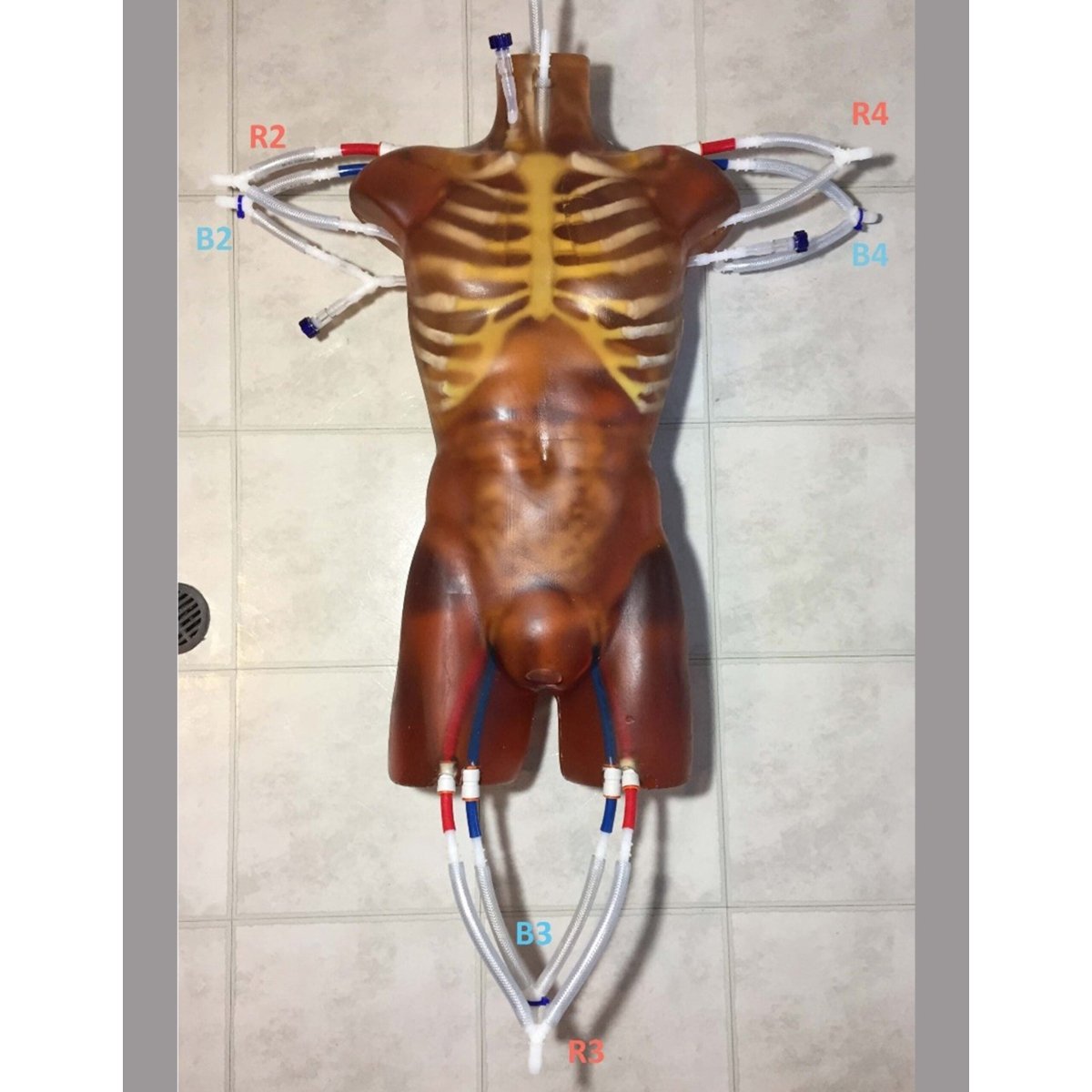

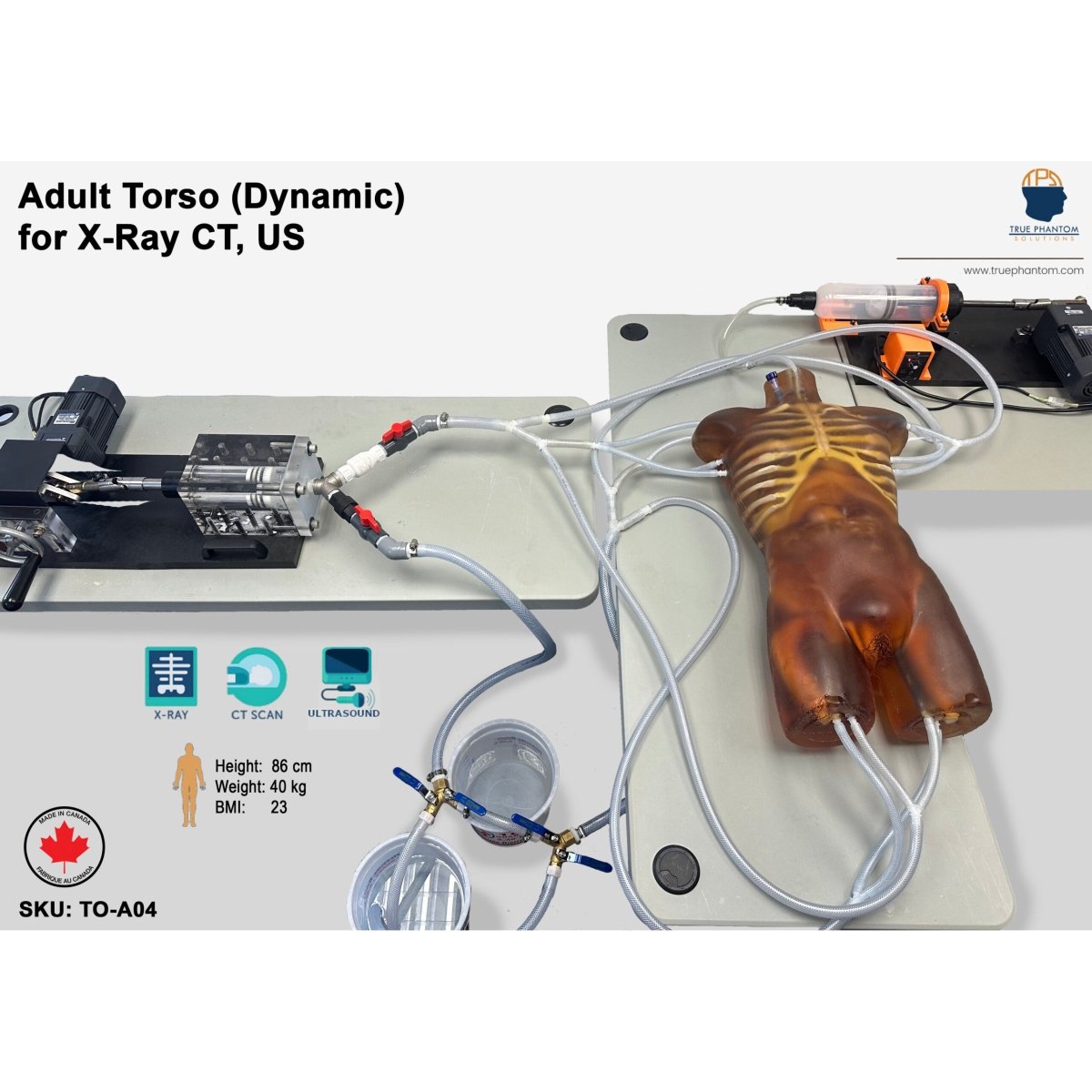

Dynamic Adult Torso Model with Heart Pump - Anatomical Teaching Tool for X-Ray, CT & Ultrasound Training - Perfect for Medical Education & Radiology Practice

• Complete Spine
• Complete Ribcage
• Shoulders and Clavicles
• Pelvis
• Partial Femoral Bones
• Trachea
• Realistic Heart with:
  • Right Ventricle:
    • Moderator Band that runs from the anterior wall to the septum bridge
    • Volume: 60 ml
  • Left Ventricle:
    • Papillary muscles to the anterior and posterior walls
    • Volume: 63 ml
  • Right Atrium:
    • Right atrial appendage with distinct muscle structures
    • Volume: 45 ml
  • Left Atrium:
    • Unique muscle structure to the appendage of the left atrium
    • Volume: 29 ml

• Appendage Feature
• Aorta
• Jugular vessels
• Pulmonic and Pulmonary Veins attached to LA
• Flexible Valvular Structures
• SVC
• IVC
• Inflatable Breathing Lungs
• Diaphragm
• Liver
• Gallbladder
• Stomach
• Kidneys
• Spleen
• Pancreas
• Large and Small Intestines
• Bladder
• Prostate

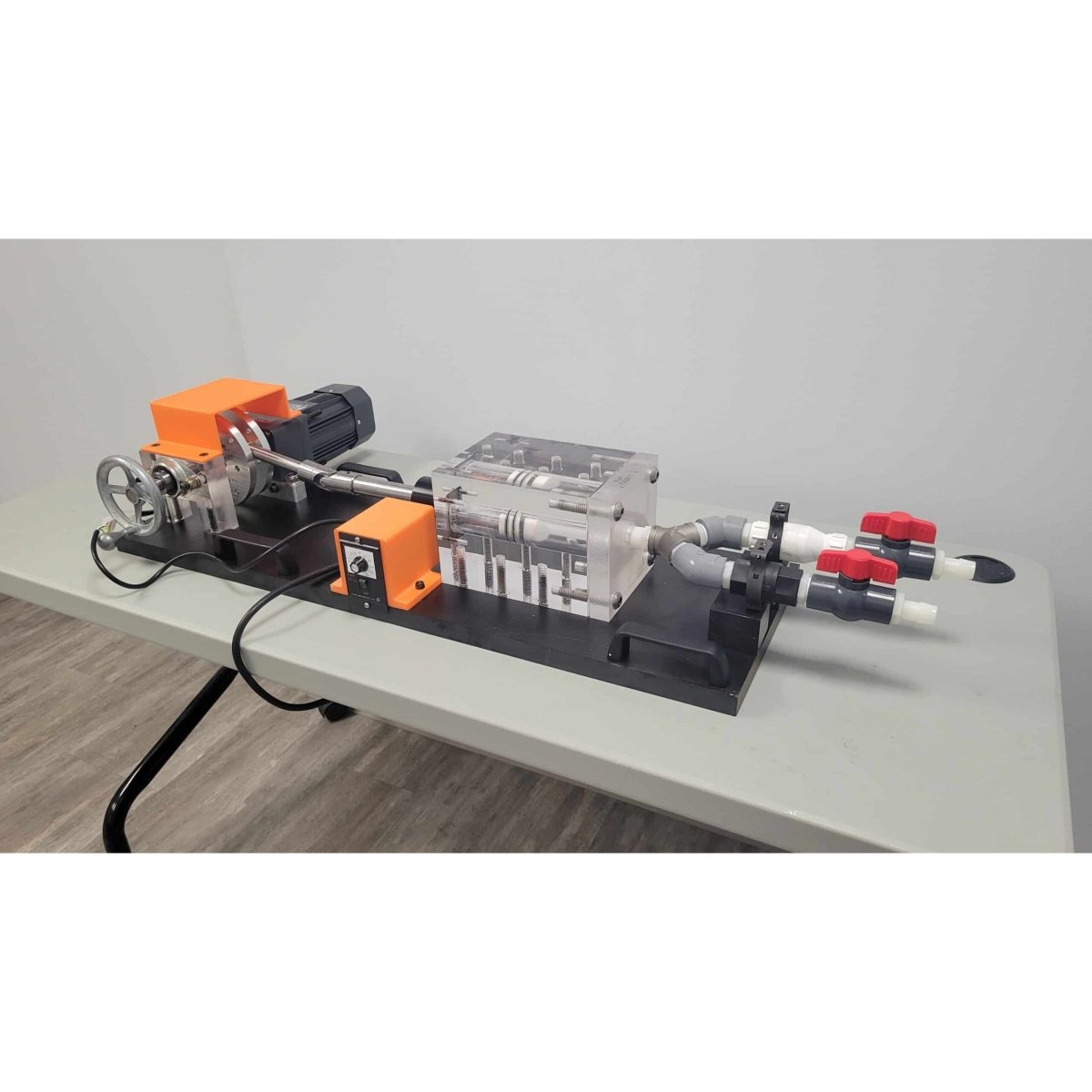

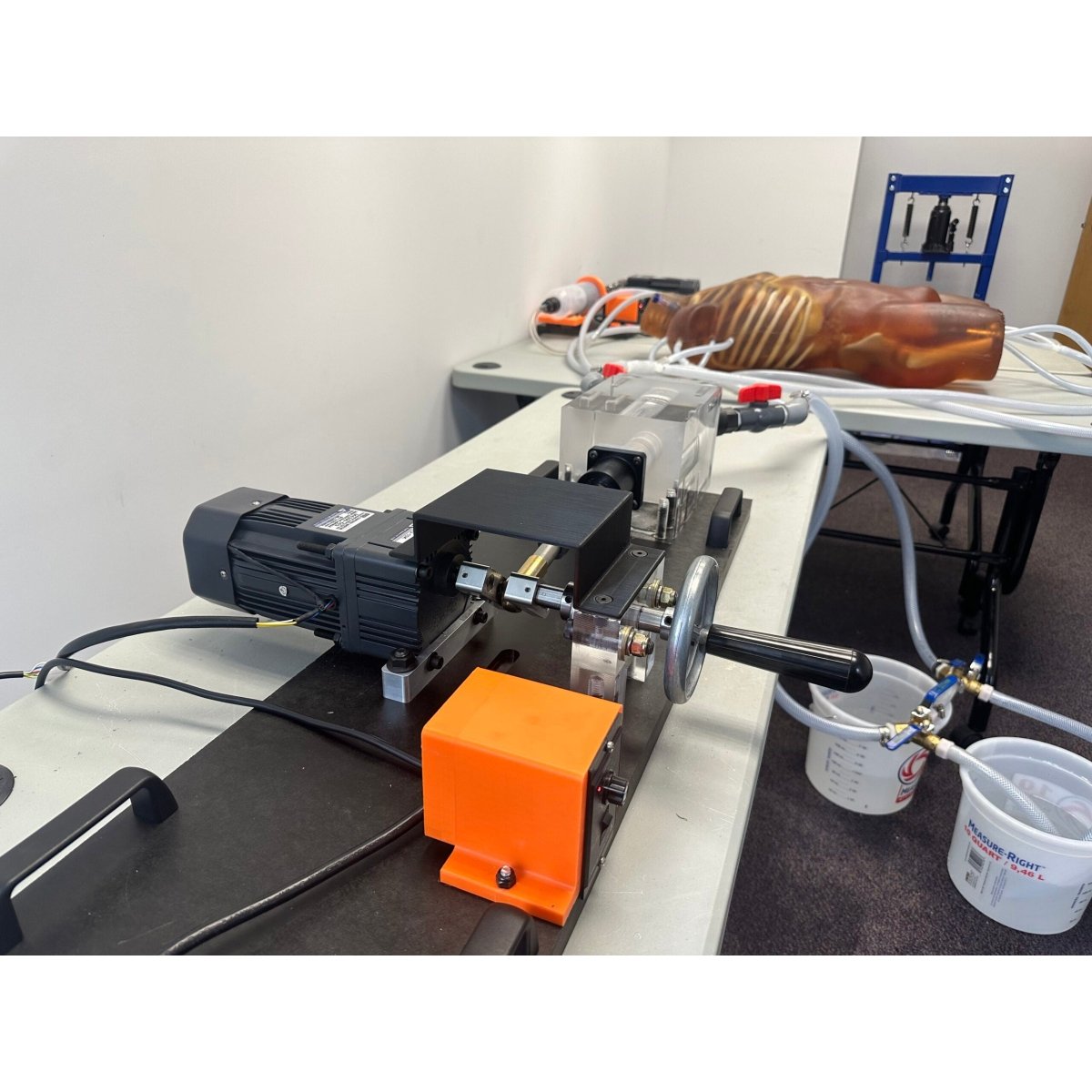

Beating Heart Features:

• Beating heart model with the cyclic motion of the heart walls
• Water-fillable chambers with minimal air pockets
• Access to intravenous catheter insertion
• Adjustable heart rate (20 BPM – 140 BPM)
• Adjustable stroke volume (40 ml to 150 ml in 10ml increments)
• Hysteresis in motion (diastole and systole of the cardiac cycle)
• Asymmetrical displacement of the heart chambers
• The complete system is installed on a plex glass
• Available in 220 V or 110 V

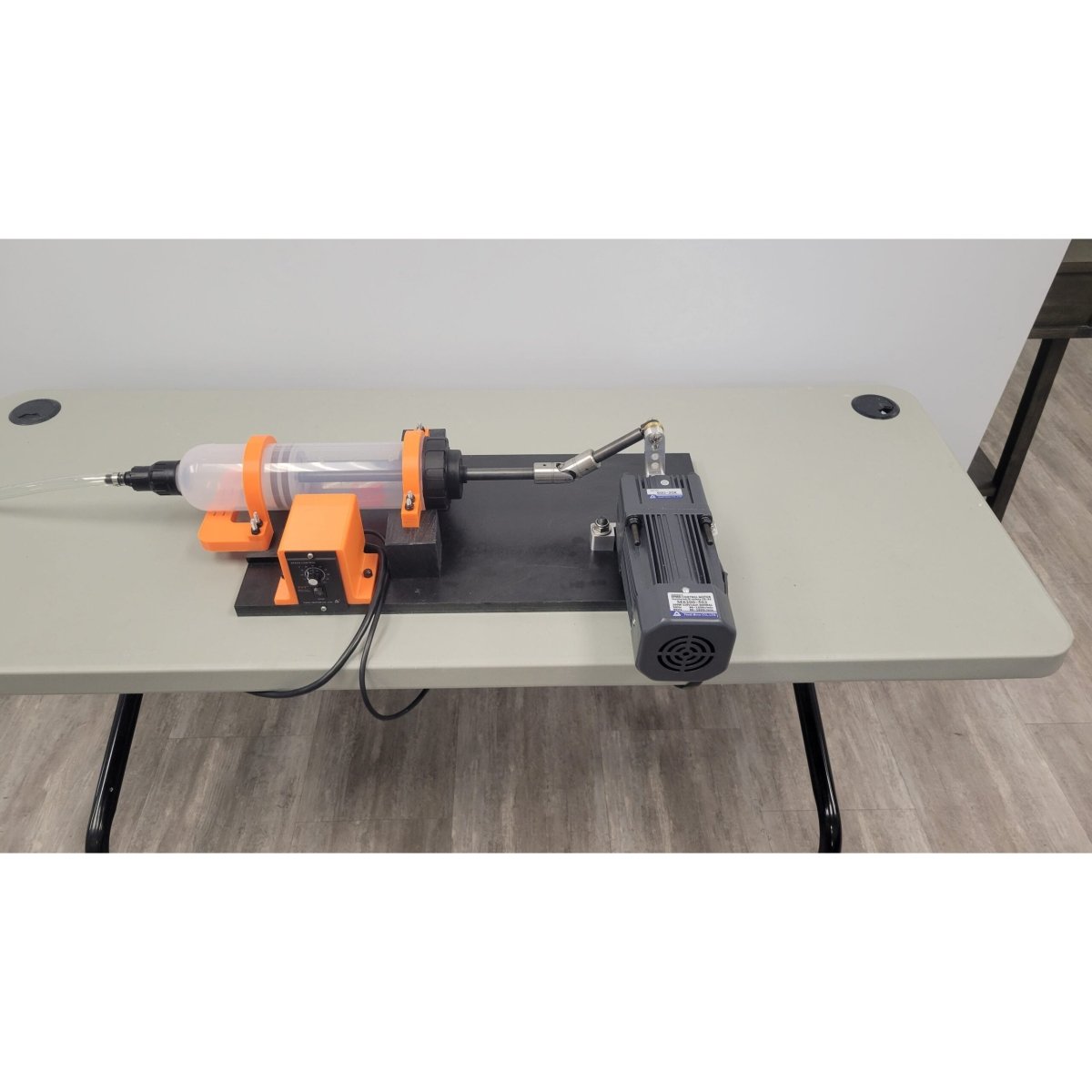

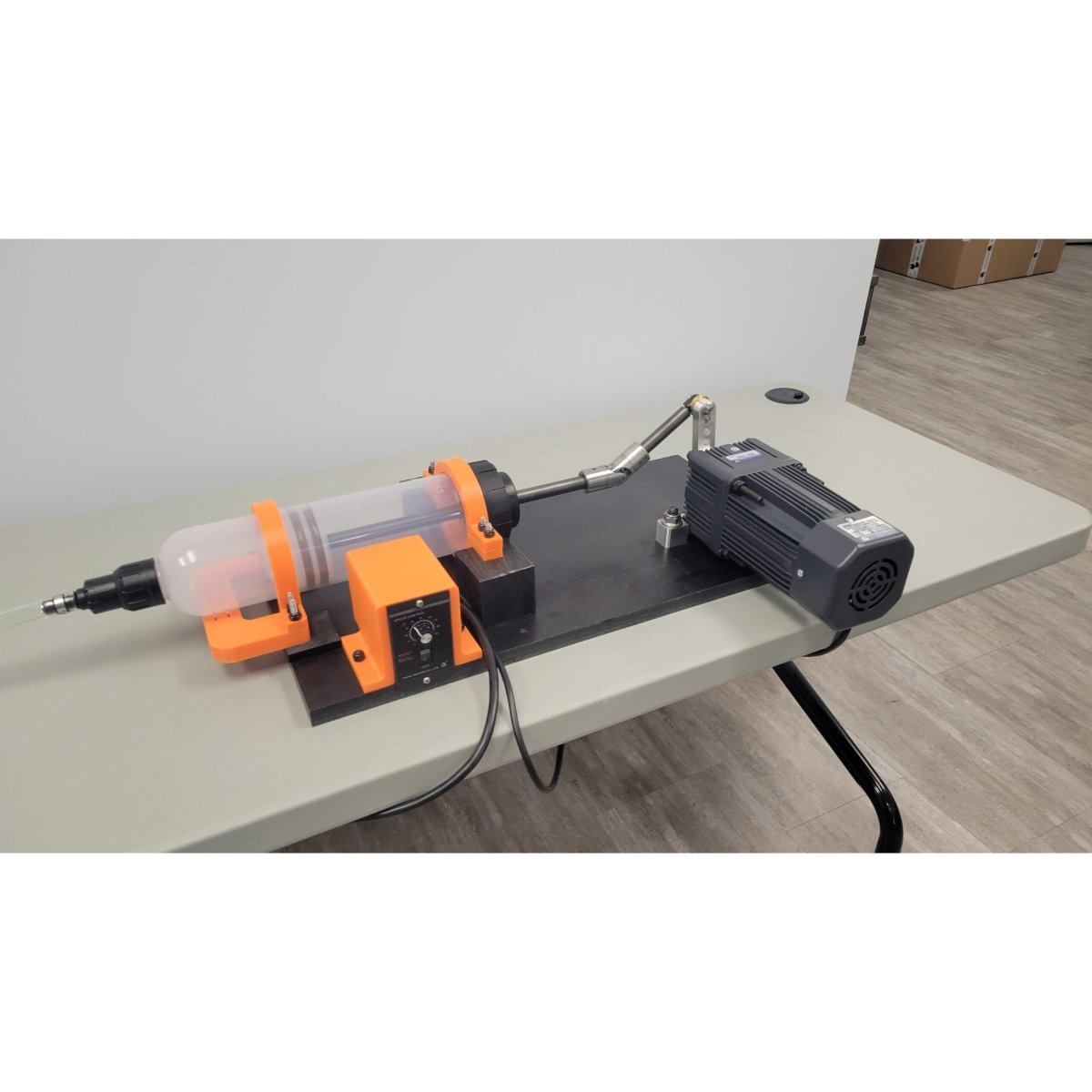

Breathable Lung Features:

• Enabling breathing capability by modifying static lungs to dynamic inflatable lungs
• Realistic cyclic respiratory motion
• Custom duration of the breathing cycle
• Adjustable cyclic respiratory motion (0 – 45 breaths per minute)
• Adjustable breath volume (250ml, 300ml – 1200ml in 100ml increments)
• Complete system installed on a secure plexiglass base
