Elbow Phantom Natural Position
RSD’s Body Section Phantoms provide a comprehensive evaluation of the imaging system and imaging techniques under realistic conditions. They are rugged, easily transported, and shatter-proof.
SPECIALLY DESIGNED TEACHING & TRAINING AID FOR RADIOLOGICAL TECHNOLOGISTS

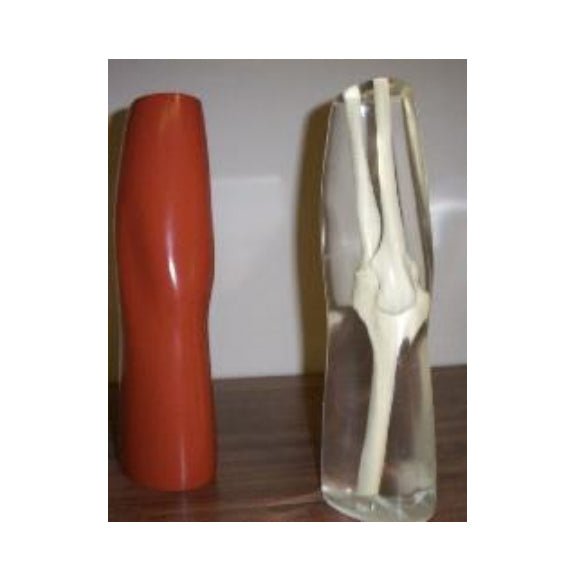

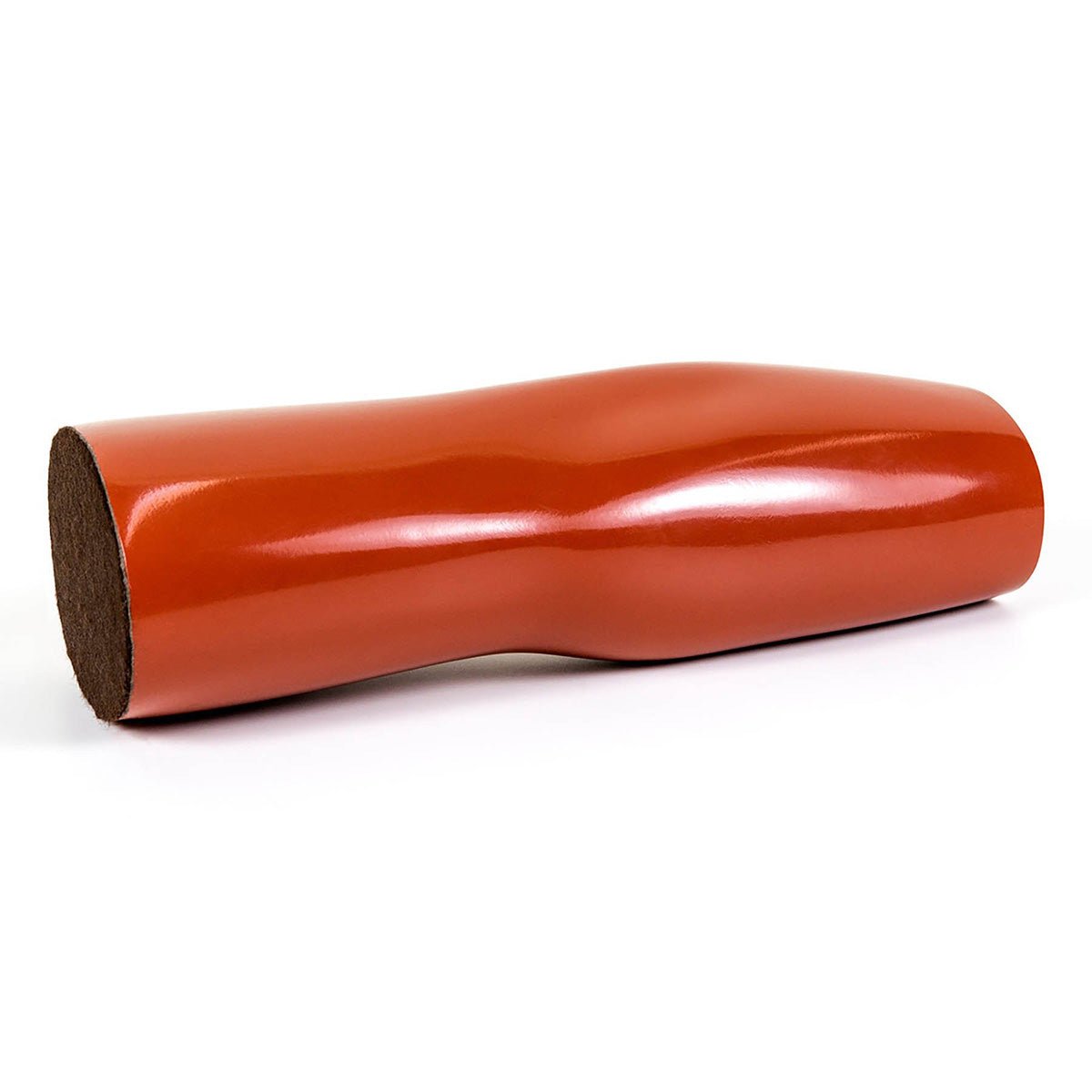

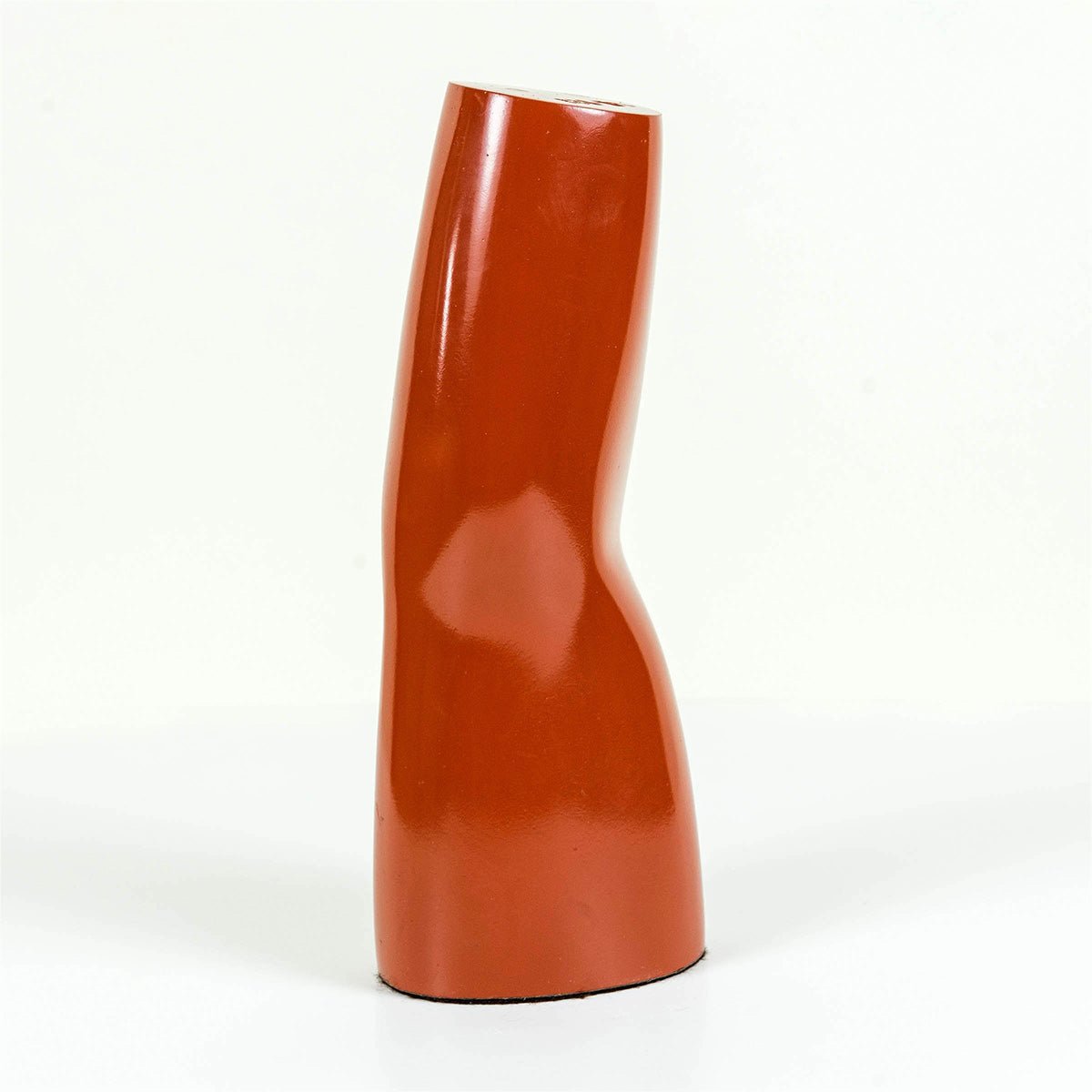

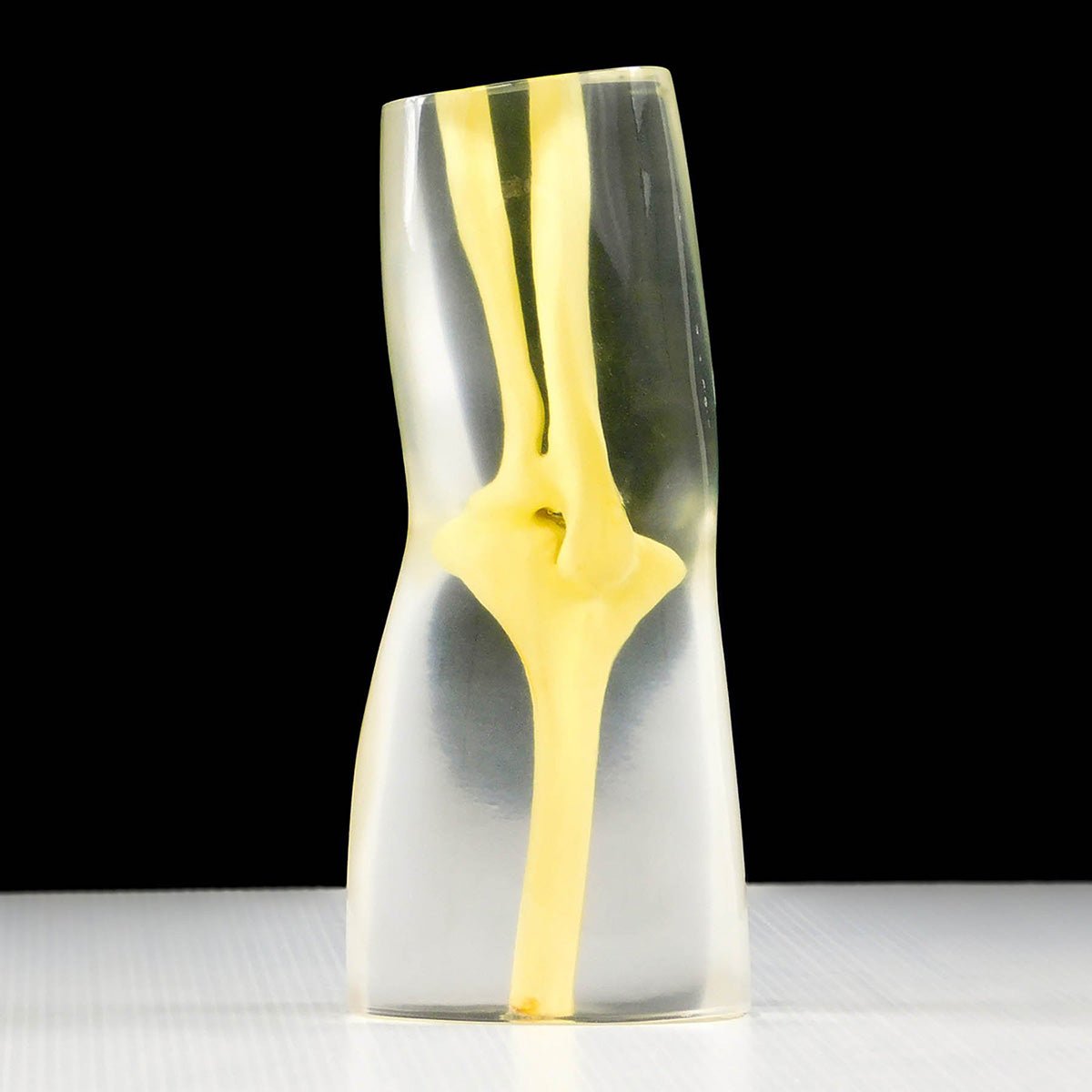

Available in opaque or transparent, in a natural position or with 90° flexion, RSD’s Elbow Phantoms allow for tremendous flexibility with teaching and training. With the anatomy and radio fidelity of RSD’s Take-Apart Pixy, our Elbow Phantoms represent an average male 5 ft. 9 in. tall (175 cm), with a weight of 162 lbs (74 kg). They are rugged, easily transported, and shatter-proof.
RSD’s Body Sections do not replace simple geometric phantoms that are used to evaluate individual characteristics of an imaging system. Instead, they provide comprehensive evaluation of the imaging system and imaging techniques under realistic conditions.
Applications
- Teaching & training
- Image quality
- Dosimetry verification
- Protocol verification
Anatomy
- Bone composed of cortical (TS-1003) and trabecular bone (TS-1002) equivalent materials
- Foot encapsulated in RSD soft tissue material (TS-1001-T)
- Additional soft material made of soft tissue material with density of 1.1 g/cc
Availability: Varies; Please contact Customer Service if you require a specific delivery date.
