High-Quality Femoral Neck Fracture Pelvis Phantom for CT Scan & X-Ray Training - Perfect for Medical Education & Radiology Practice

Femoral Neck Fracture Pelvis Phantom for CT Scan and X-Ray Training

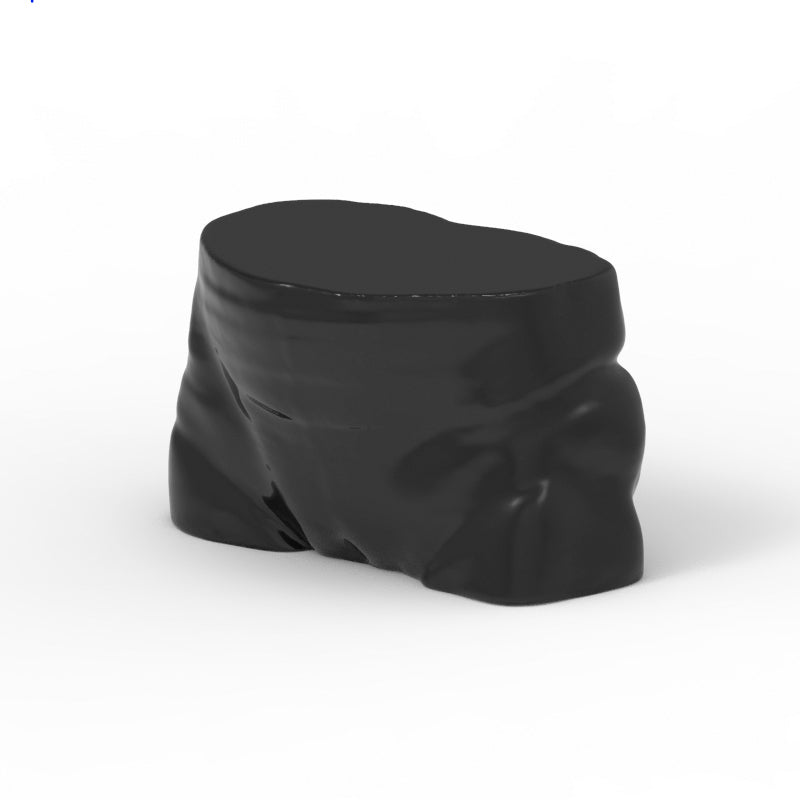

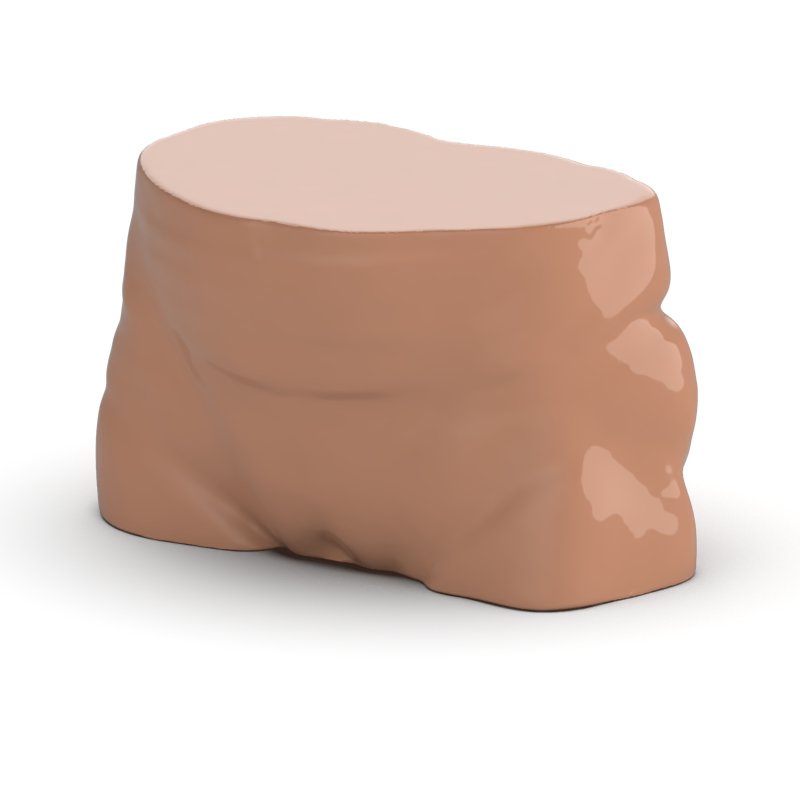

This phantom simulates a pelvis without intravenous contrast (native). It covers the entire pelvis up to the fifth lumbar vertebra. It has a displaced femoral neck fracture on the left side.
The phantom can be used in CT (including CBCT) and radiography to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes.
The phantom provides a detailed and realistic simulation of soft and bone tissue. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.

SPECIFICATIONS:

• Size: Approx. 27 x 17 x 16 cm
• Weight: Approx. 4.2 kg
• Base material: Cellulose-polymer composite
• Optimal tube voltage: 120 kVp – adaptable upon request –

DIAGNOSTIC FEATURES:

Realistic simulation of bone and soft tissues.

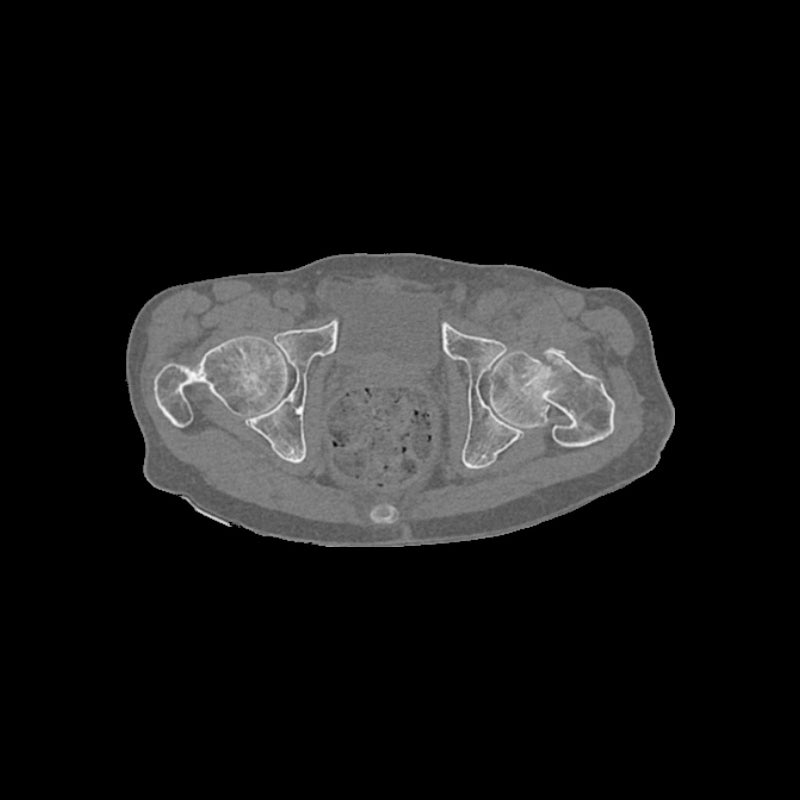

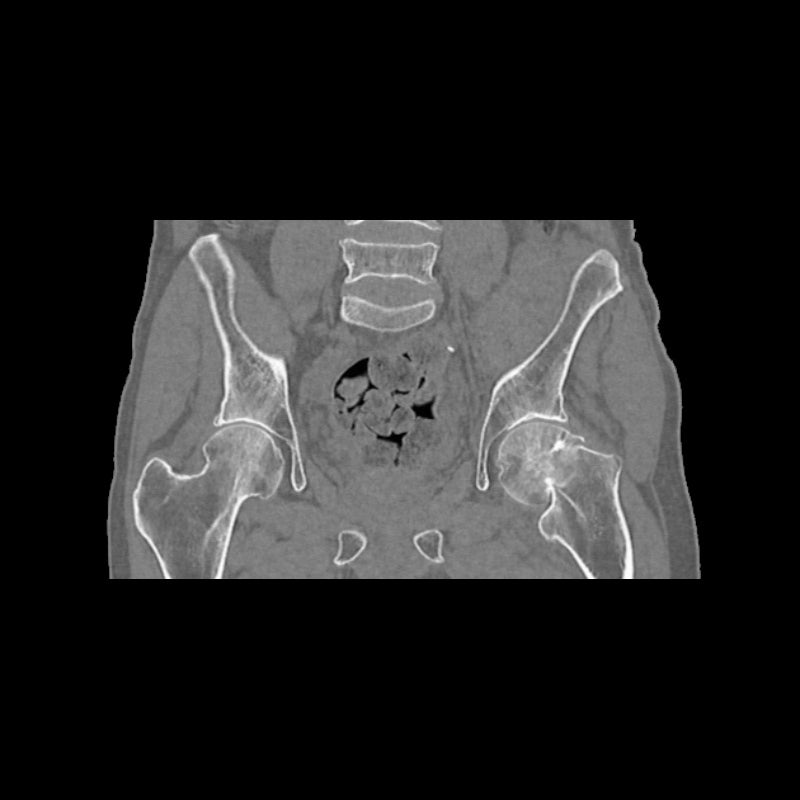

Displaced femoral neck fracture on the left side.

Download:

Made by PhantomX and sold by GTSimulators.
