CTA Aneurysm Head Phantom for CT Scan and X-Ray Training

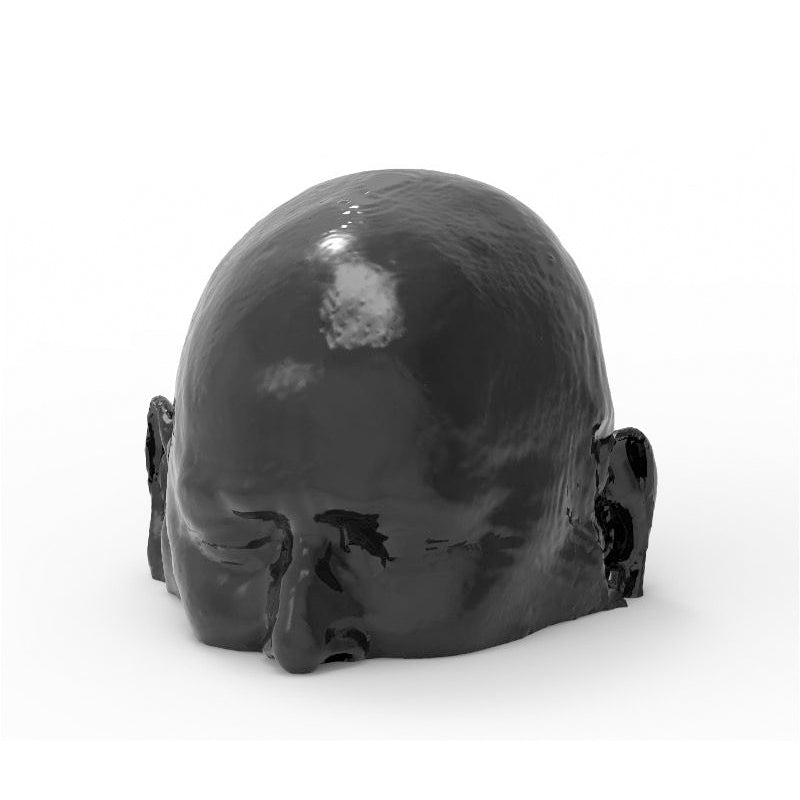

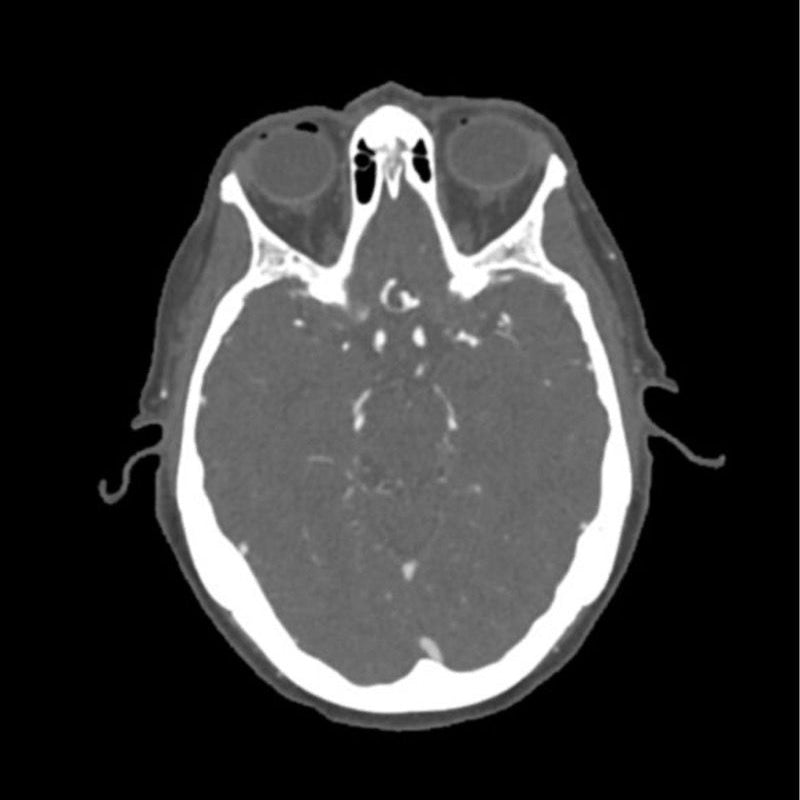

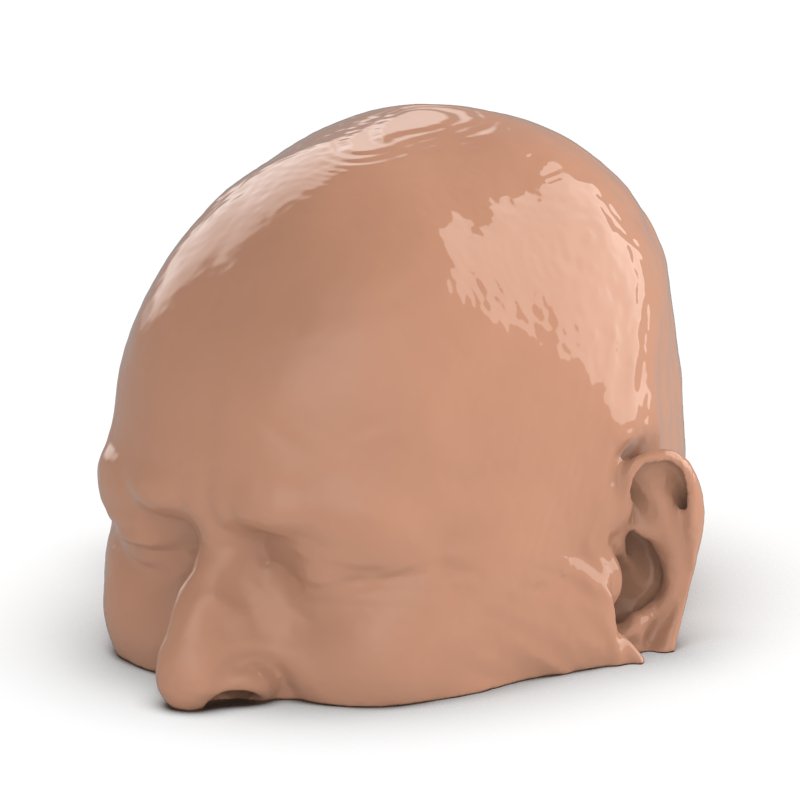

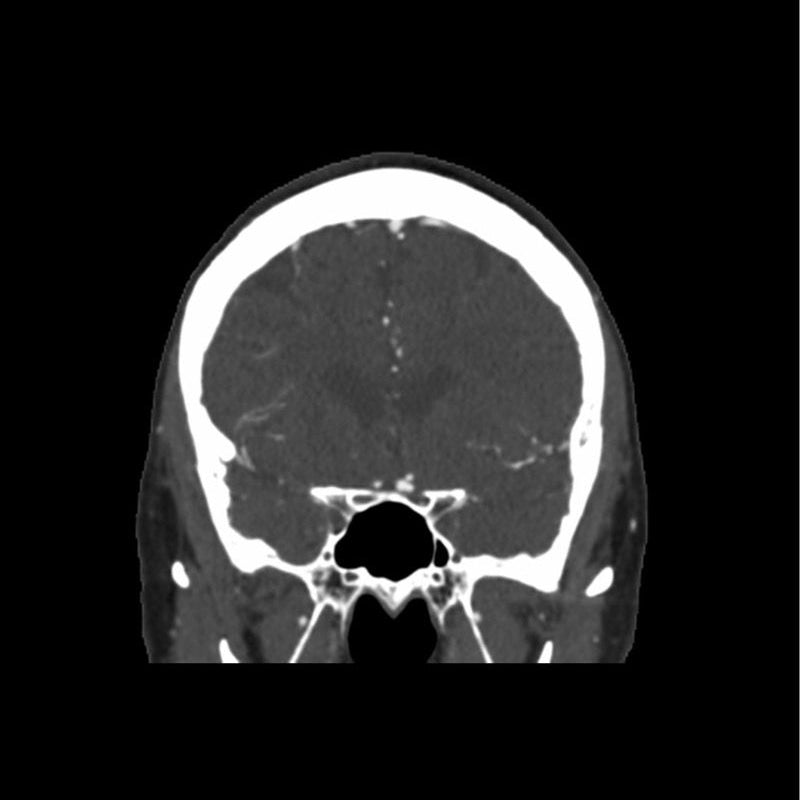

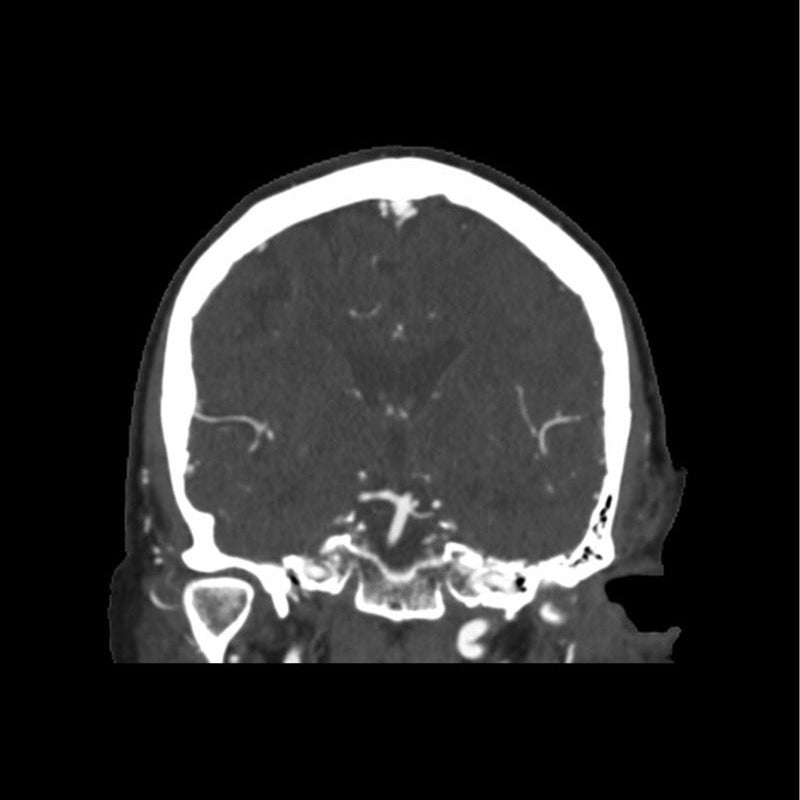

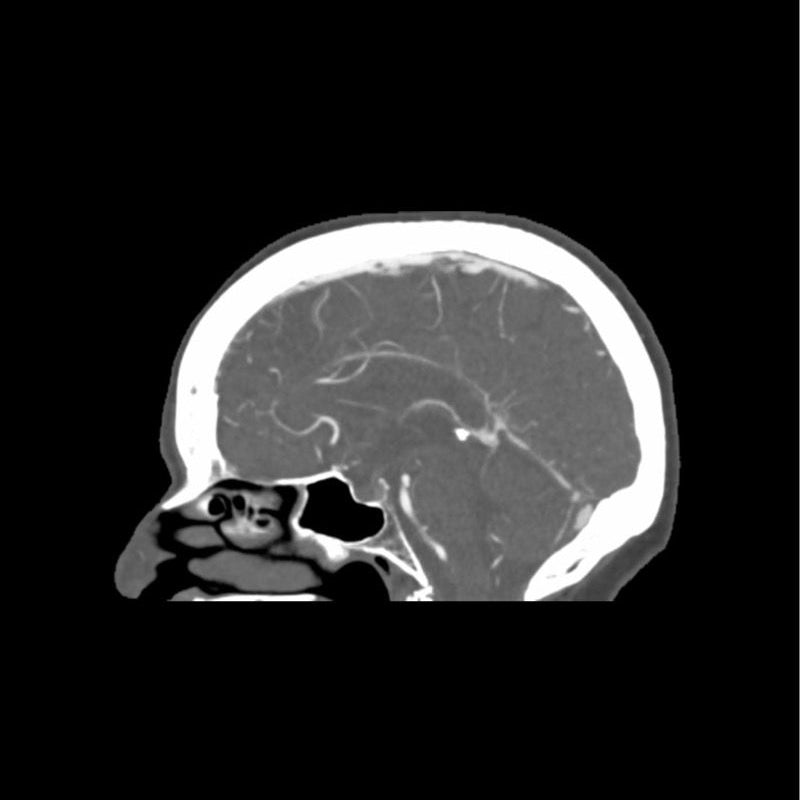

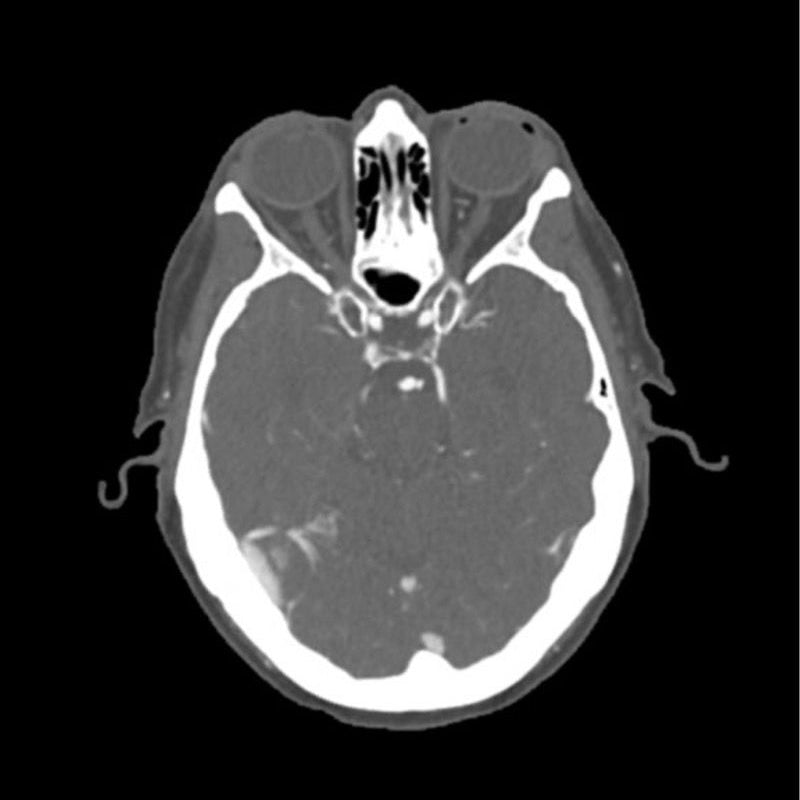

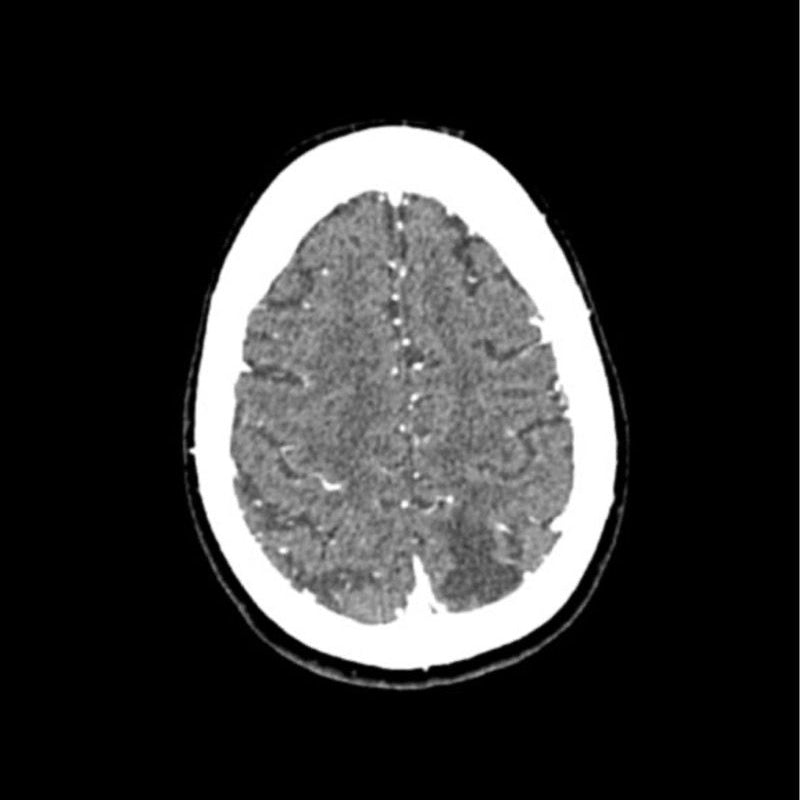

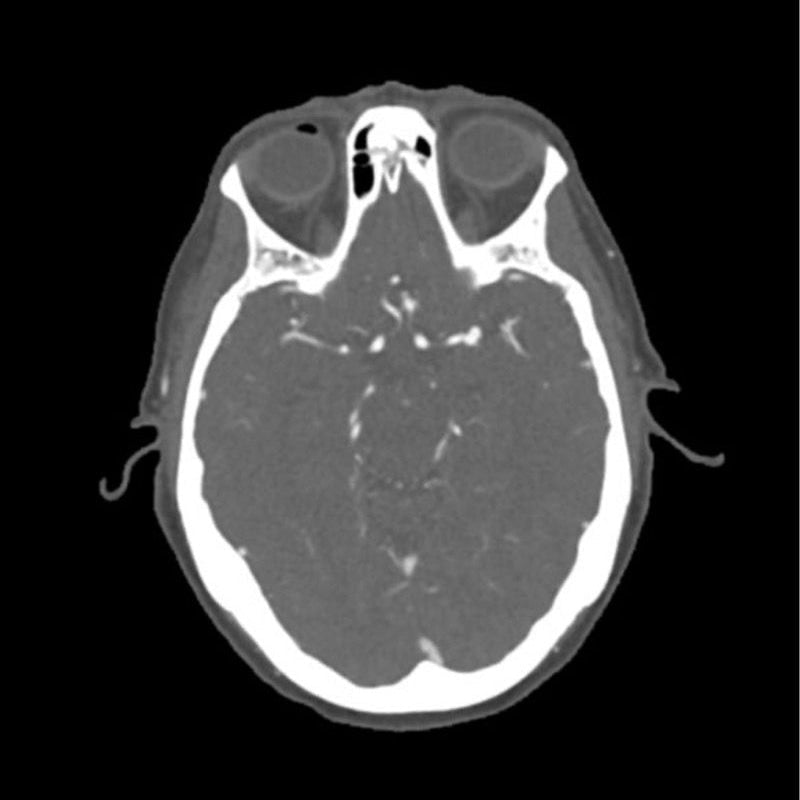

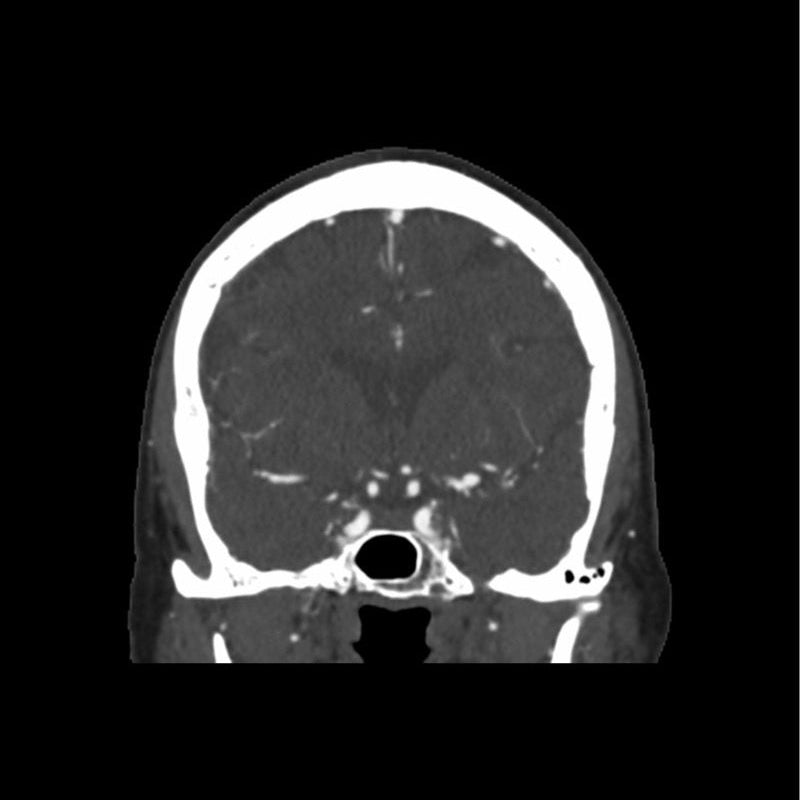

This phantom simulates a contrast medium enhanced head in arterial phase (CT angiography). It covers the vertex to the foramen magnum. The phantom has three intracranial aneurysms of the middle cerebral artery (MCA), anterior communicating artery (ACoA), and the basilar artery.

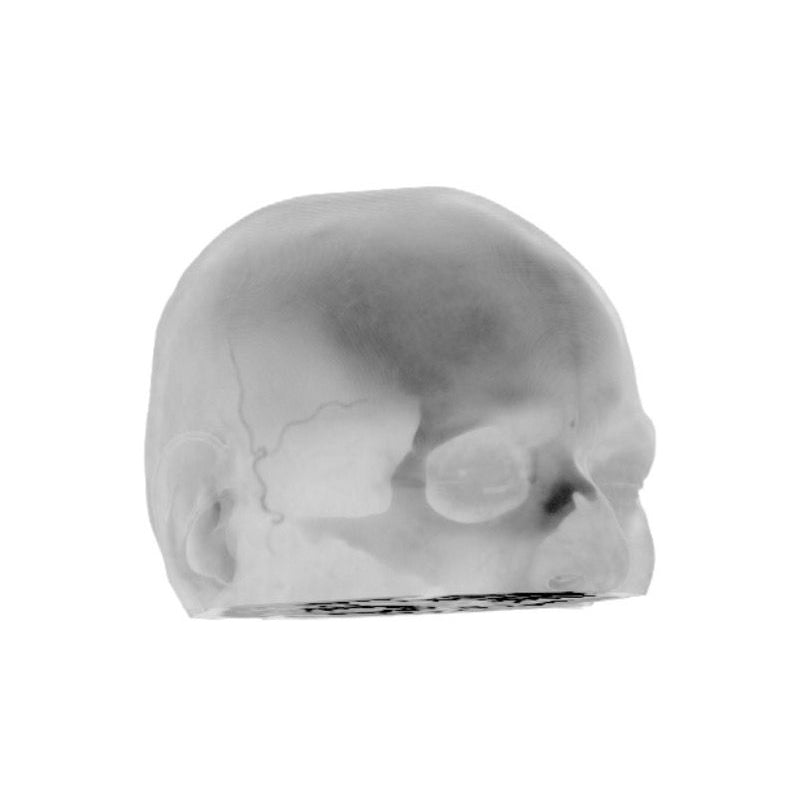

The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and AI-enabled diagnosis. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of vascular structures, soft and bone tissue, including small details such as lymph nodes. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.

SPECIFICATIONS:

• Size: Approx. 19 x 22 x 15 cm
• Weight: Approx. 2680 kg
• Base material: Cellulose-polymer composite
• Optimal tube voltage: 120 kVp – (adaptable upon request)

DIAGNOSTIC FEATURES:

Realistic simulation of head vessels, bone and soft tissues.

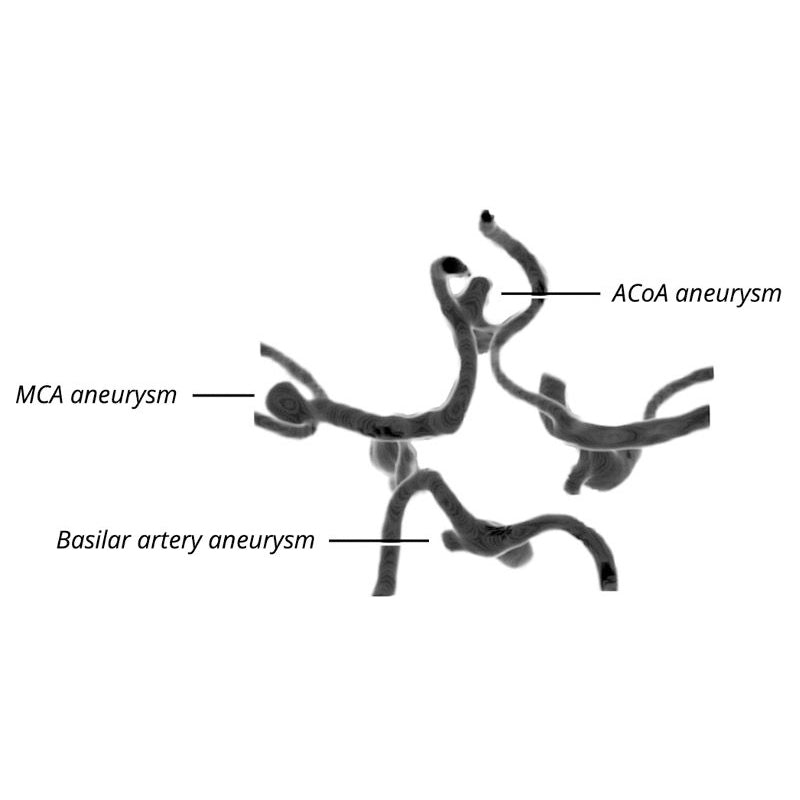

• Aneurysms:
• Middle cerebral artery (MCA) left side
• Anterior communicating artery (ACoA) left side
• Basilar artery left side

Download:

Made by PhantomX and sold by GTSimulators.
