The California Concealed Carry Weapons (CCW) fingerprint capture bundle is designed to comply with CA DOJ 4402 to allow issuing agencies the ability to capture the fingerprints required for issuance of a CCW license.
This easy-to-setup bundle offers a quality FBI-certified fingerprint scanner (Futronic FS88H) and a software application (FbF® bioCollect) that captures and saves clear fingerprint images. Those images can be exported as needed for placement on the CCW license.
California DOJ Directive:
- Capturing Thumbprint for Uniform CCW License.
(a) The licensing authority shall capture an original right thumbprint for every initial or renewal CCW license. If the right thumbprint is unavailable, the acceptable print order is left thumbprint followed by any available digit of the right hand, regardless of whether the digit is scarred or deformed. The licensee’s thumbprint or fingerprint image shall be true to size.
(b) If a Personal Identity Verification single finger capture device is used, the device must be certified by the Federal Bureau of Investigation (FBI) as tested and in compliance with the FBI’s Next Generation Identification (NGI) Image Quality Specifications (IQS)
This Fulcrum Biometrics Bundle is designed to make all CCW Issuing agencies fully compliant with the mandatory requirements of the CA DOJ Directive for capturing and reporting digital (electronic) fingerprints.

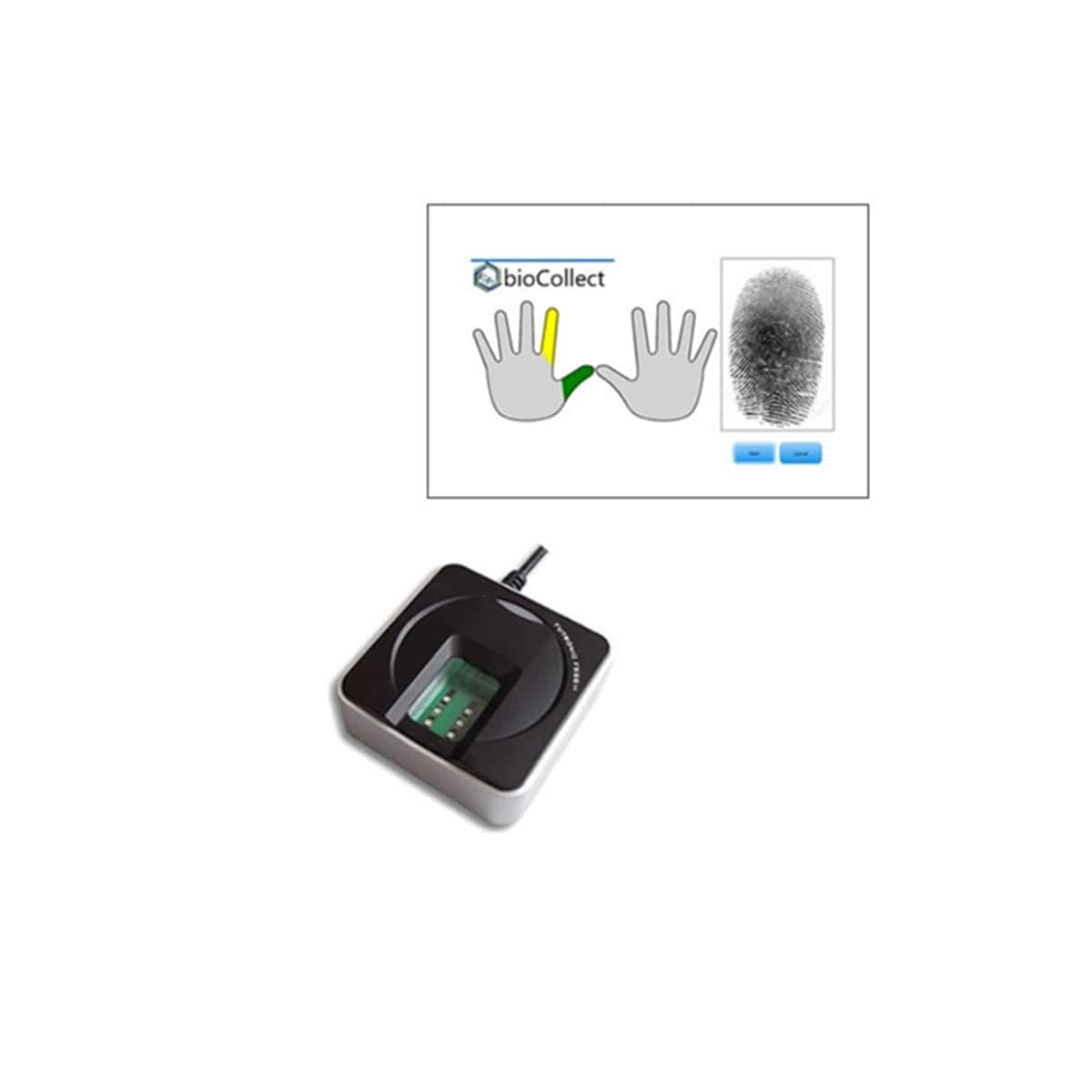

The California CCW Fingerprint Capture Bundle contains the following components:
Qty. 1 - FbF® bioCollect Biometric Capture Application
- Simple, color-coded user interface walks you through each step of fingerprint and image capture
- Windows 10 or 11 (not for Mac OSX)
- Save fingerprints to the same location automatically
- Complies with 1:1 export ratio requirement
Qty. 1 - Futronic FS88H FIPS201/PIV USB Fingerprint Sensor - Precise optics - allow the scanning of practically undistorted fingerprint images
- Live Finger Detection - rejects fake fingers made from silicone, rubber, Play-Doh or other materials. This feature may be turned on or off in software
- Infra-red illumination - allows scanning of wet, dry, blurred and other problematic fingers
- Rugged sensor - thick (16 mm) crown glass used for platen. Practically indestructible scanner surface
- Complies with 500dpi image capture requirement
Tech Specs
| Physical | - Size: 66 x 66 x 29mm
- Weight: 150 g
- Operation temperature: -10 to + 55°C
- 2M standard USB cable
- Supply voltage: C 4.5-5.5 V via USB port
- Power consumption: Active <900mW, Standby <200mW, Sleep mode <4mW
- ESD contact - 8KV no permanent damage
- ESD air discharge - 16KV no permanent damage
|
| Fingerprint Sensor | - Window size: 16.26 x 24.38mm
- Image resolution: 320x480 pixels, 500 DPI, 8 bit grey level
- Fingerprint image size: 56K
- Live Finger Detection (LFD) feature
|
| PC Requirements | Windows 10, 11
|
| Certifications | FCC, CE, RoHS |
| Standards/Compliance | IPS 201/PIV 071006 Image Quality Specification, Microsoft WHQL |
FbF bioCollect
| Operating System | Windows 10, 11
|
| Processor | 1 gigahertz (GHz) or faster 32-bit (x86) or 64-bit (x64) processor |
| Memory Requirements | 1 gigabyte (GB) RAM (32-bit) or 2 GB RAM (64-bit) |
| Required Disk Space | Approximately 100 MB |
| Database | 50 MB of empty space on Hard drive |
| Software Requirement | Microsoft .NET 4.0 or higher |
