Hybrid Blue Laser & LED Light
The EinScan HX2 continues the innovative integration of hybrid blue laser and LED light technology, enhancing material adaptability for a broader range of applications. The advanced blue laser captures complete data from black and reflective surfaces with exceptional surface and environmental adaptability, now with 13 laser lines for faster and more detailed scans. The efficient LED light scanning requires no markers, enabling rapid 3D scanning without preparation
High Efficiency
The EinScan HX2's laser scan mode reaches 1,600,000 points/s and 120 FPS, enabling rapid scans for reverse engineering, CAD/CAM, and 3D printing. It scans most objects in minutes, ensuring superior efficiency and productivity in all of your 3D scanning projects.
High Accuracy & Detail
The EinScan HX2 meets the rigorous demands of industrial applications for reverse engineering and precise measurement.
Minimum point distance of 0.05 mm
Accuracy up to 0.04 mm under laser mode
Portable & Easy Operation

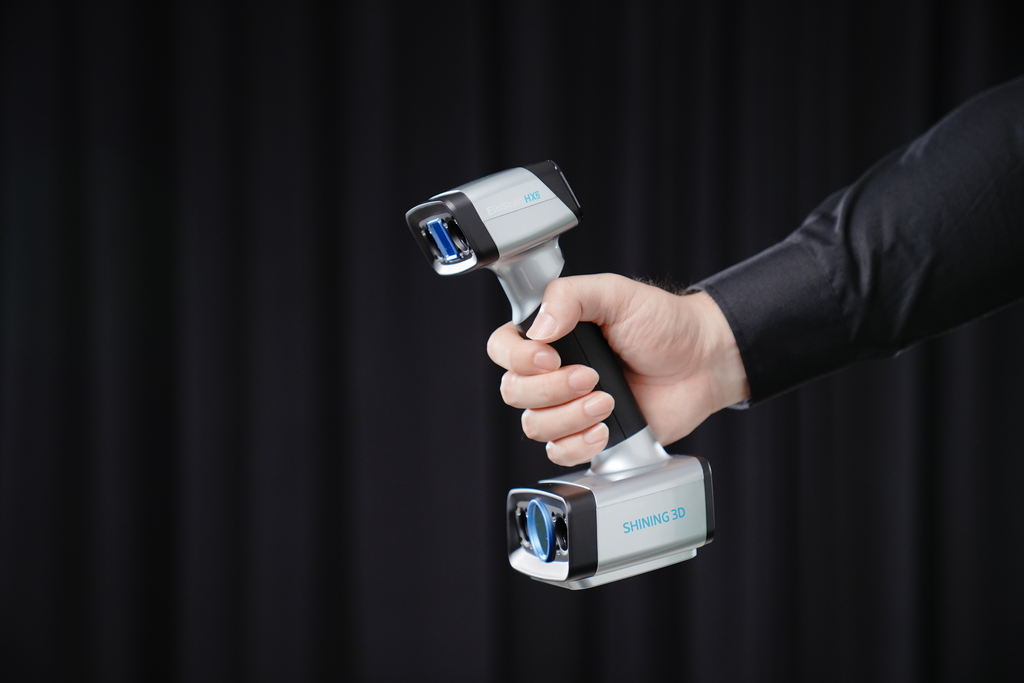

The EinScan HX2 excels in portability and ease of use with its ergonomic design and lightweight build at just 745g. Perfect for beginners and professionals, its plug-and-play functionality and user-friendly software make 3D scanning efficient and comfortable, anywhere you go.
Full Color
A built-in color camera supports full-color texture capturing and tracking in rapid scan mode. Texture Mapper Lite further simplifies photorealistic texture mapping.
EinScan HX2 Tech Specs
| Specification | Details |
|---|
| Accuracy | Up to 0.04 mm |
| Point Distance | 0.25 – 3 mm |
| Max. FOV | 420 × 440 mm |
| Align Mode | Feature / Markers / Texture / Hybrid |
| Volumetric Accuracy | Up to 0.04 + 0.06 mm/m |
| Scan Speed | Up to 1,600,000 points/s |
| Working Distance | 470 mm |
| Light Source | Blue LED / 13 Blue Laser Crosses |
?
