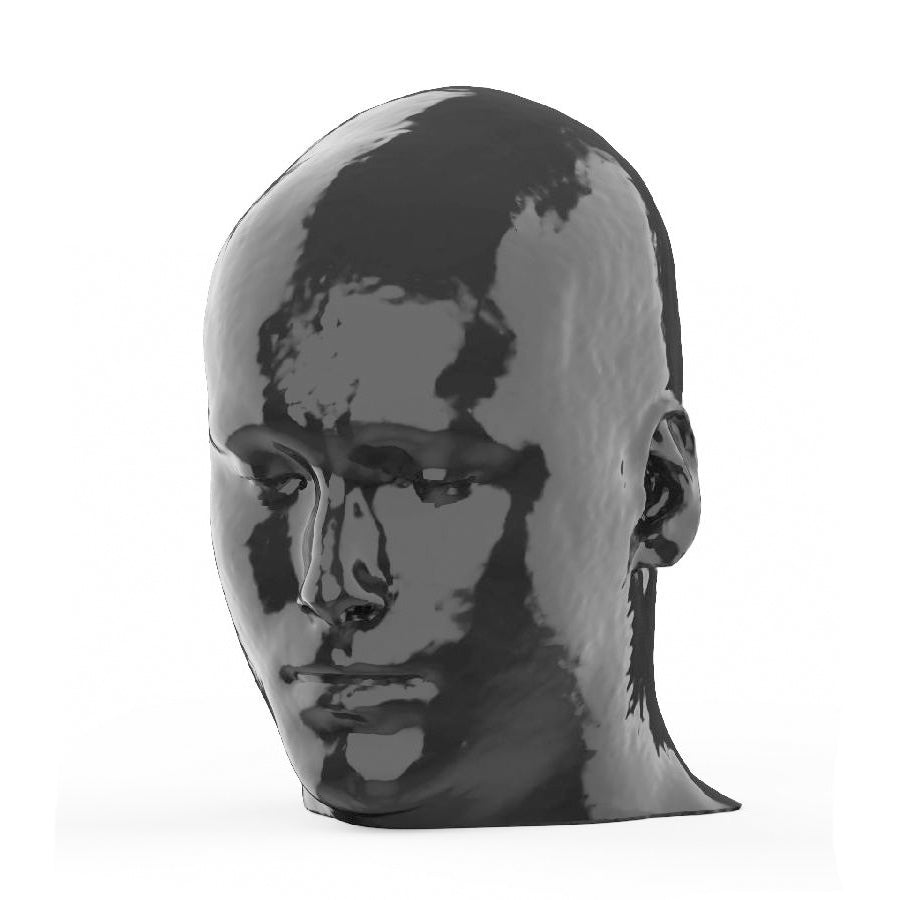

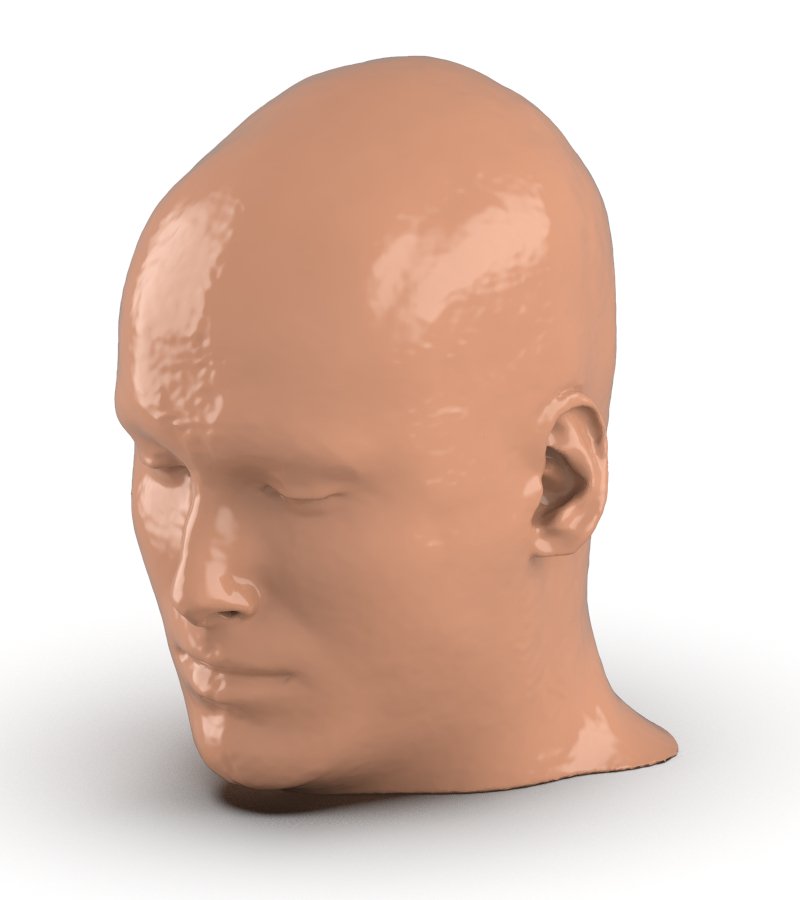

Head and Neck CTA Phantom AVM for CT Scan and X-Ray Training

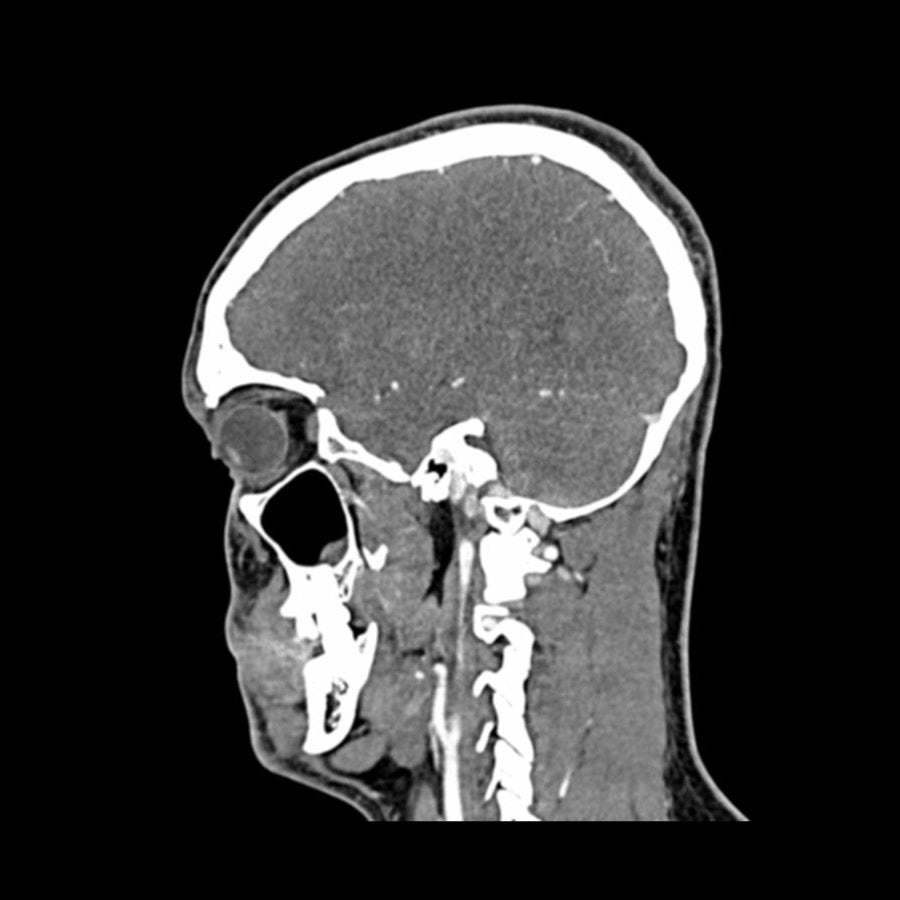

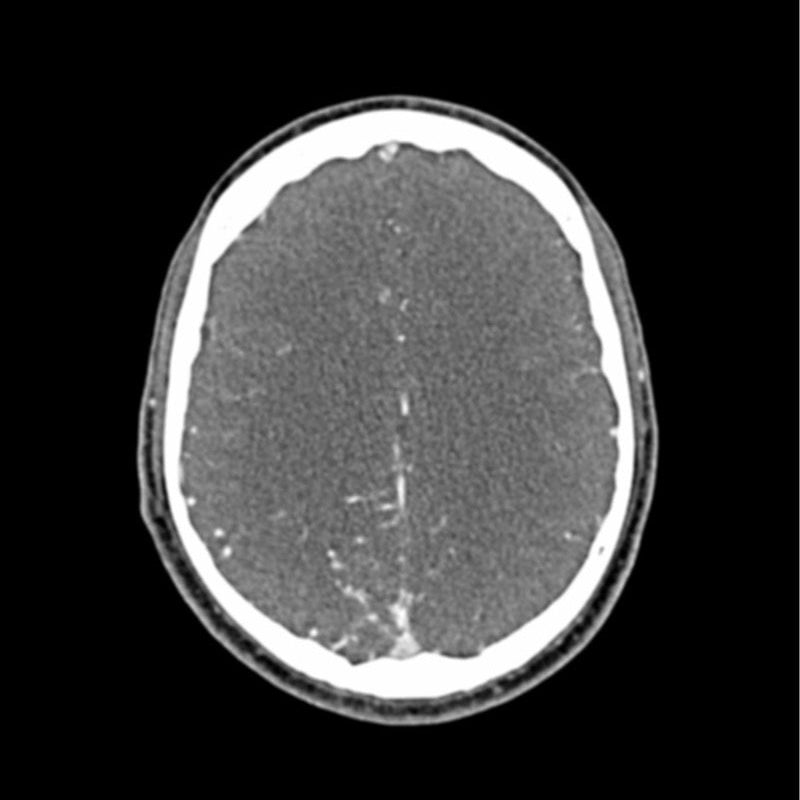

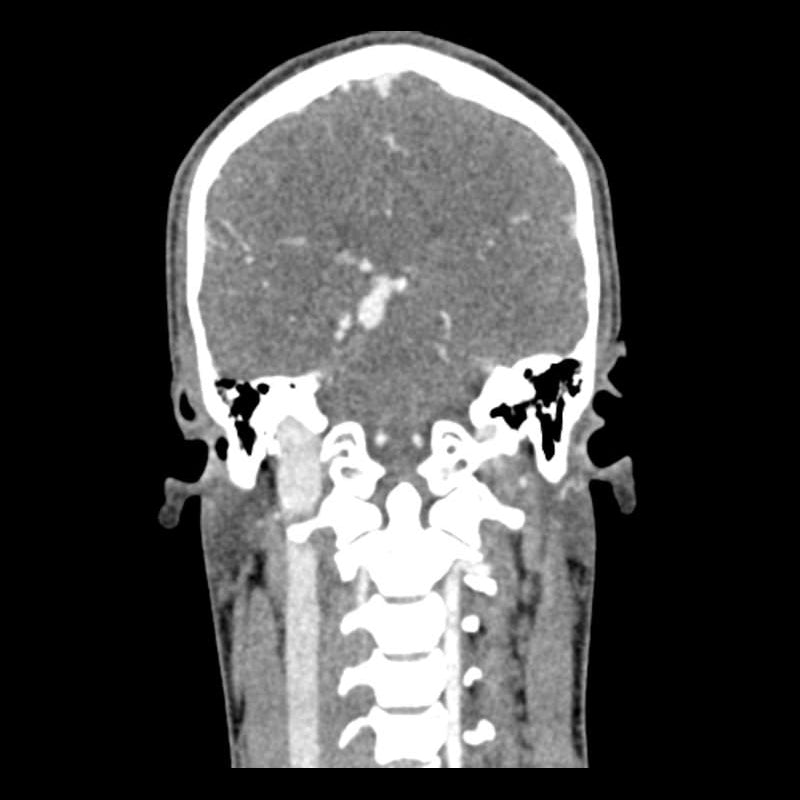

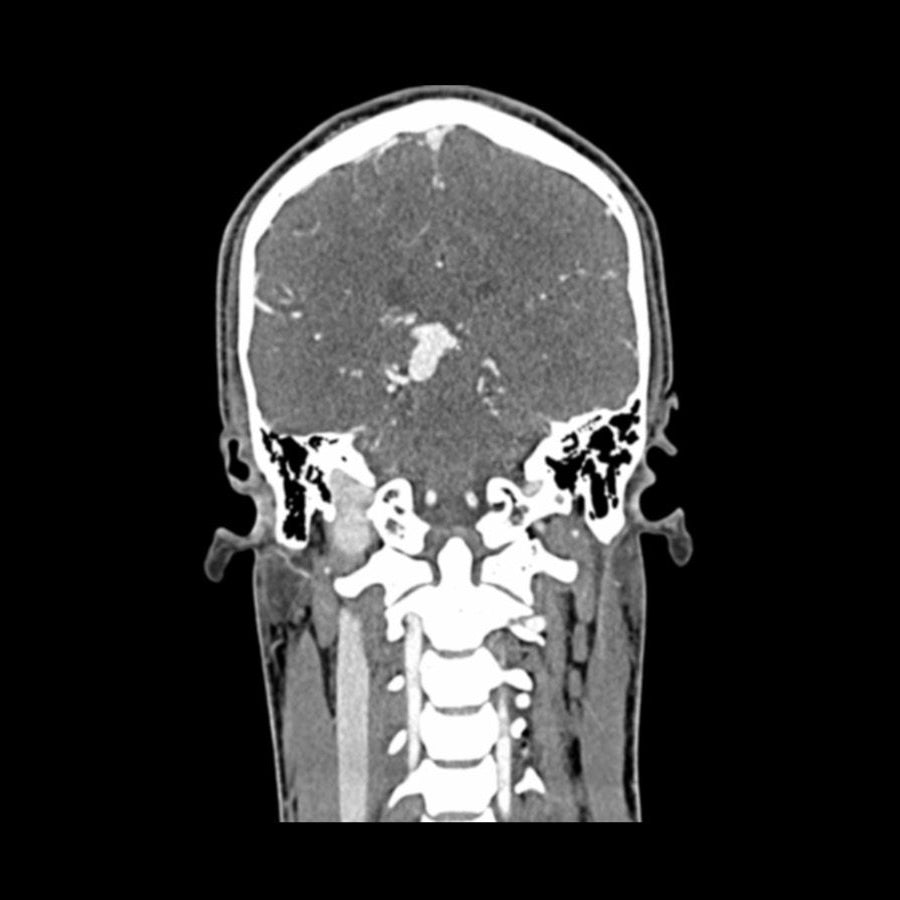

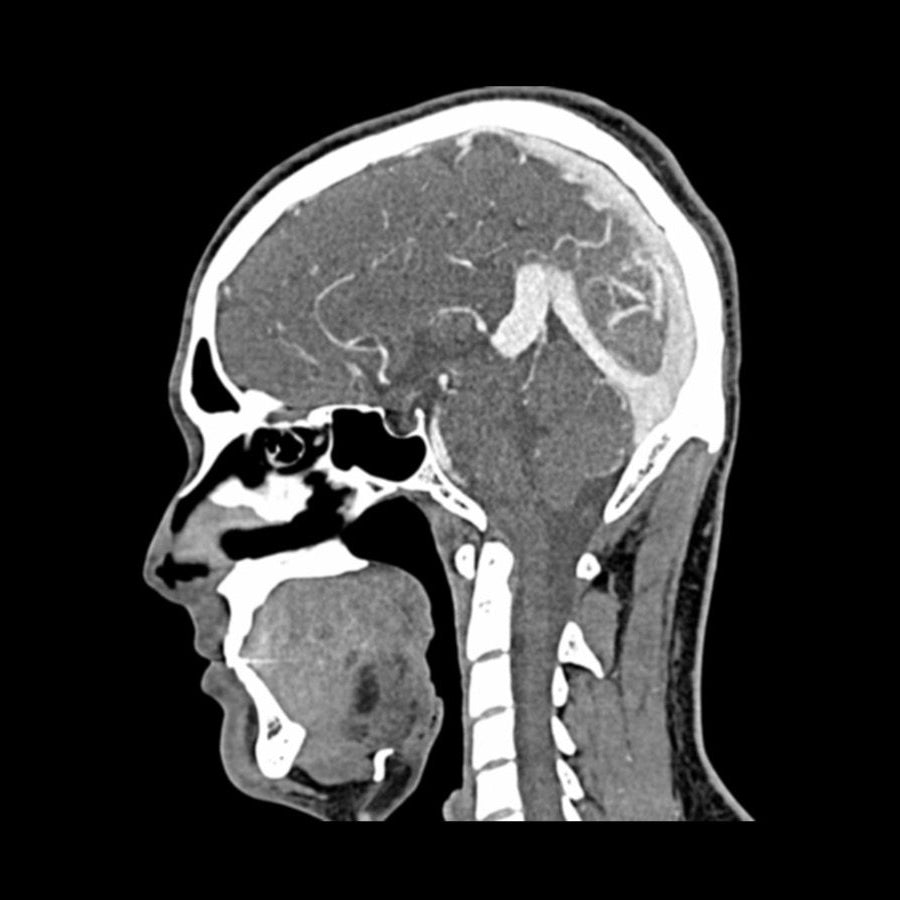

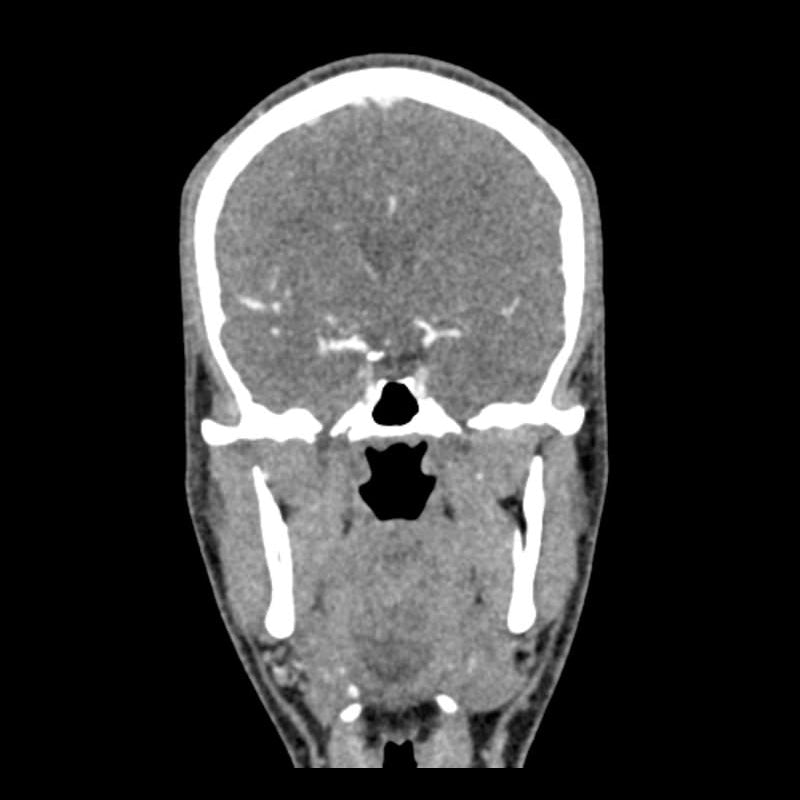

This phantom simulates a contrast medium enhanced head in arterial phase (CT angiography). It covers the vertex to the fifth cervical vertebra.

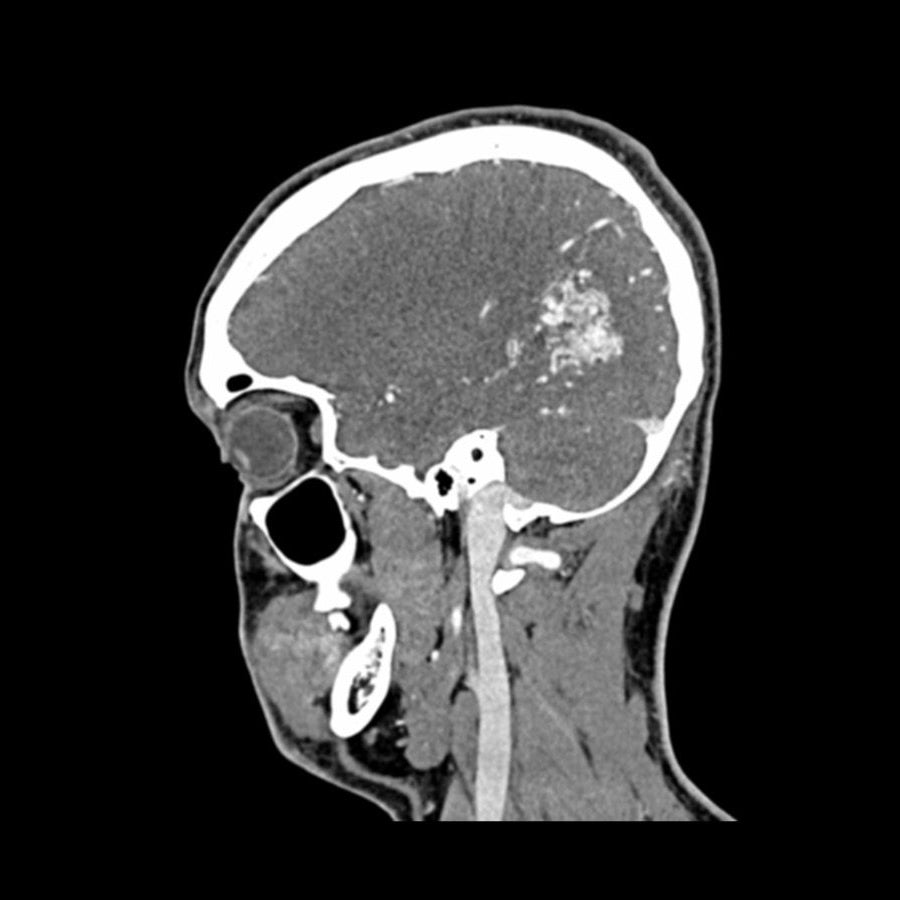

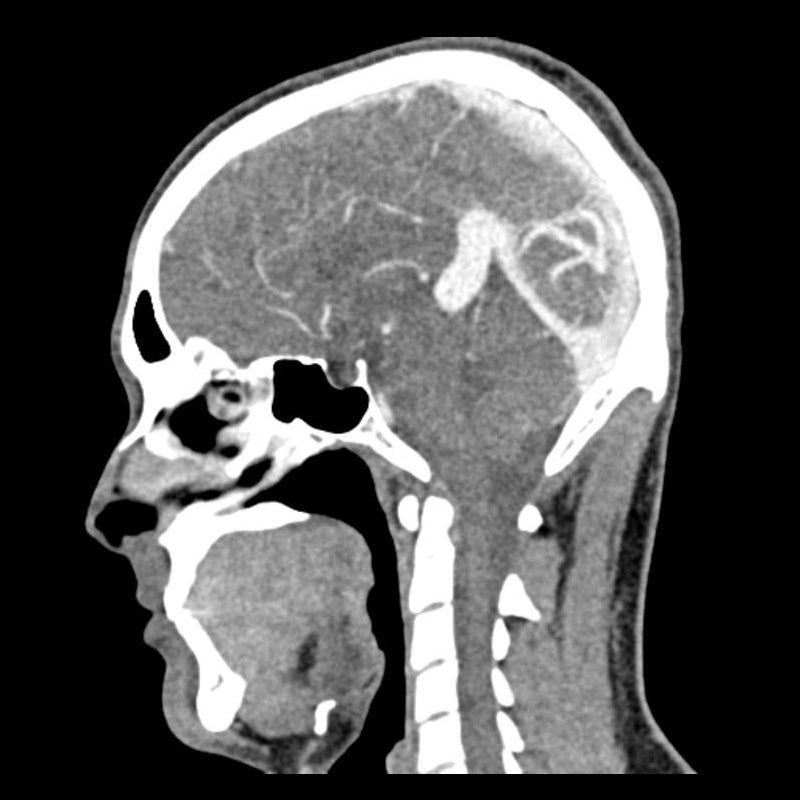

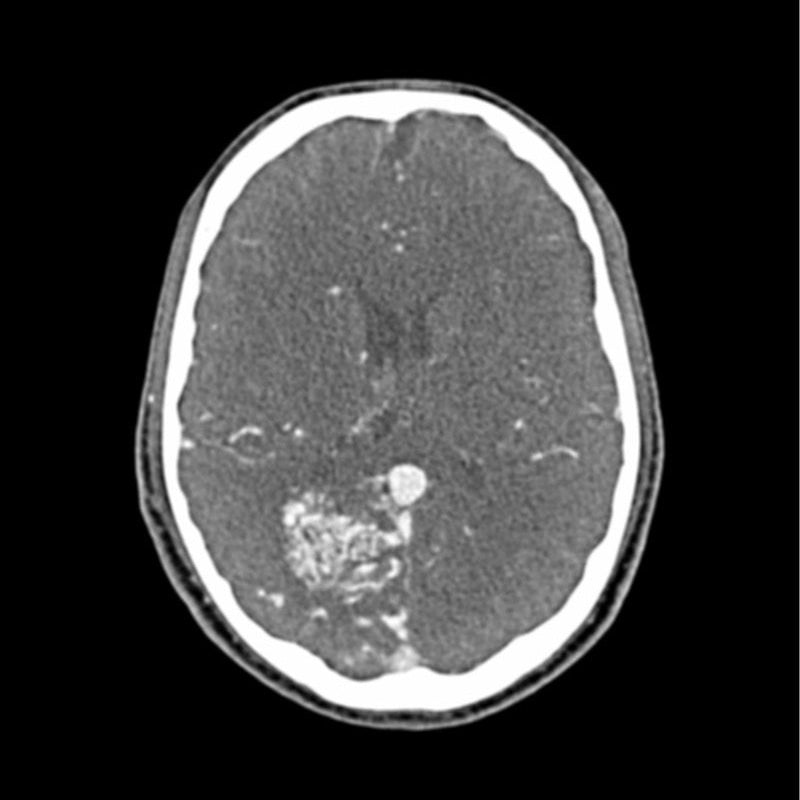

The right hemisphere has an arteriovenous malformation.
The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and AI-enabled diagnosis. It is also suited for training purposes.
The phantom provides a detailed and realistic simulation of vascular structures, soft and bone tissue, including small details such as lymph nodes. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.

SPECIFICATIONS:

• Size: Approx. 19 x 22 x 27 cm
• Weight: Approx. 5.1 kg
• Base material: Cellulose-polymer composite
• Optimal tube voltage: 120 kVp – adaptable upon request –

DIAGNOSTIC FEATURES:

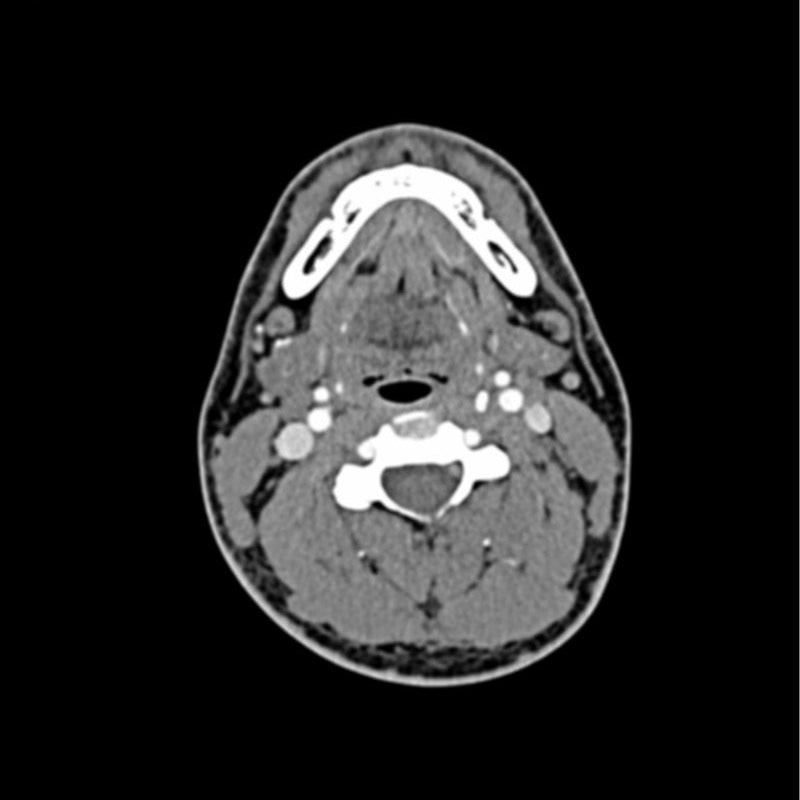

Realistic simulation of head and neck vessels up to the aortic arch, bone and soft tissues. Calcifications of the internal carotid artery at the carotid bifurcation on both sides with mild stenosis on the right side.

Download:

Made by PhantomX and sold by GTSimulators.
