CTA Head Phantom for CT Scan and X-Ray Training

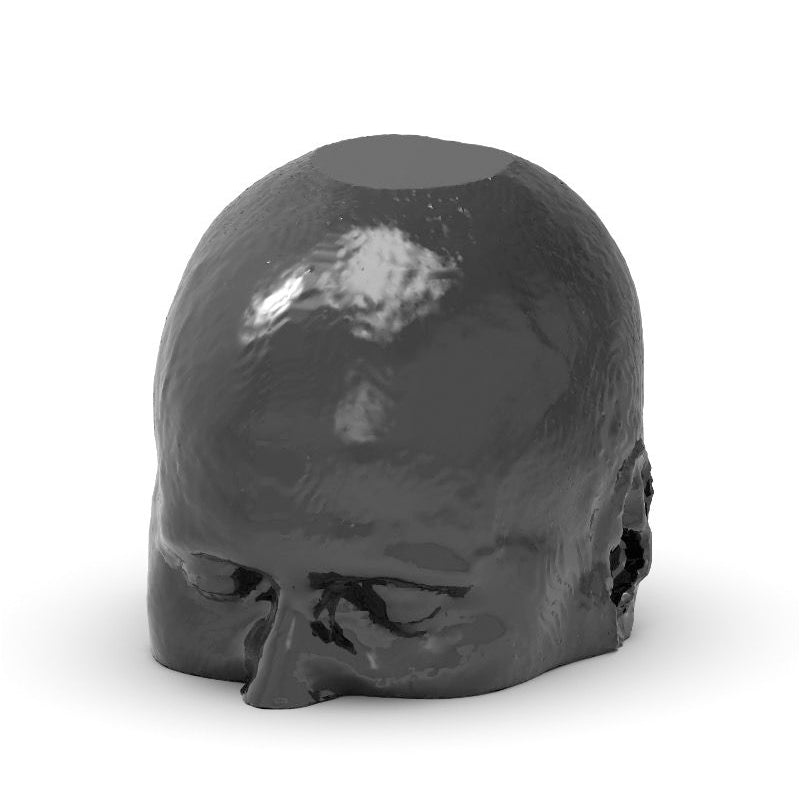

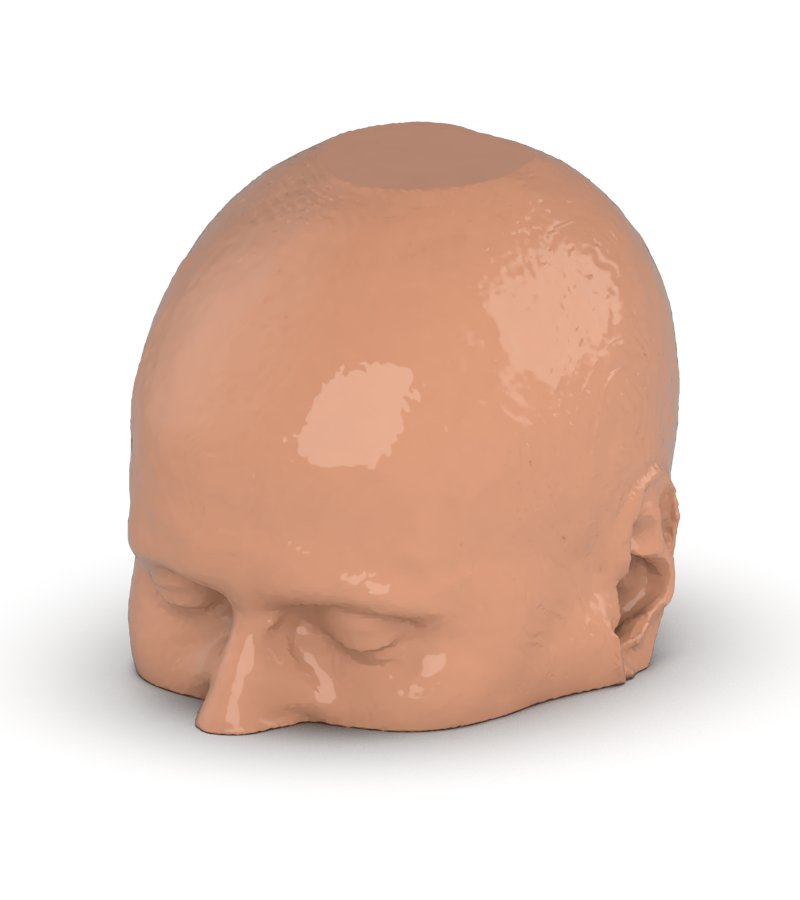

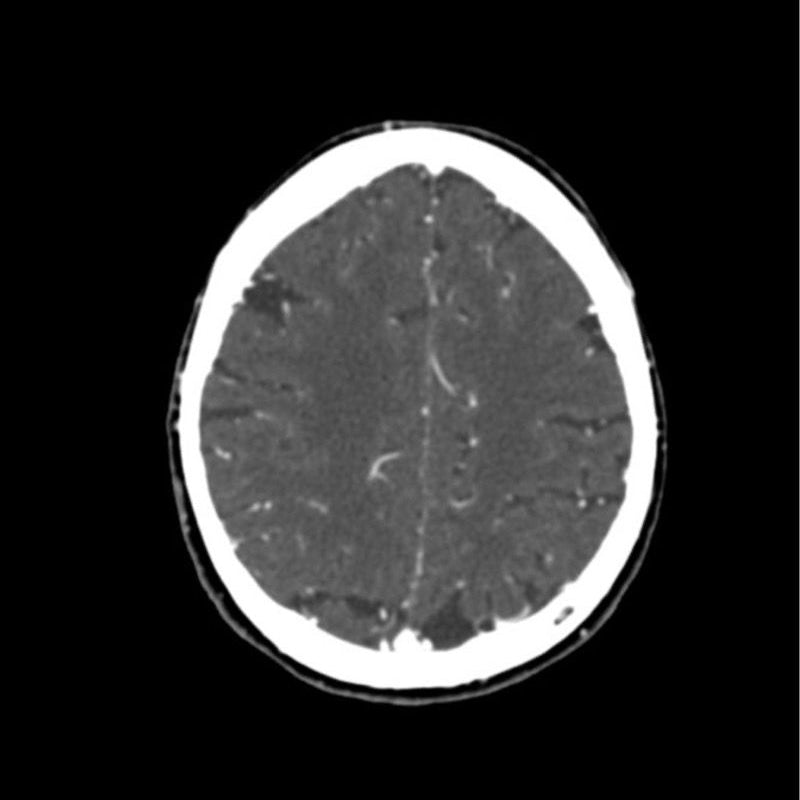

This phantom simulates a contrast medium enhanced head in arterial phase (CT angiography). The neck is included up to the first cervical vertebra. The vertex is included until approximately 0.5 cm below skin level. The phantom has no significant vascular pathologies.
The phantom can be used in CT (including CBCT) to evaluate and optimize CTA imaging performance and post-processing applications such as vessel segmentation, including AI-enabled applications. It is also nicely suited for training purposes.

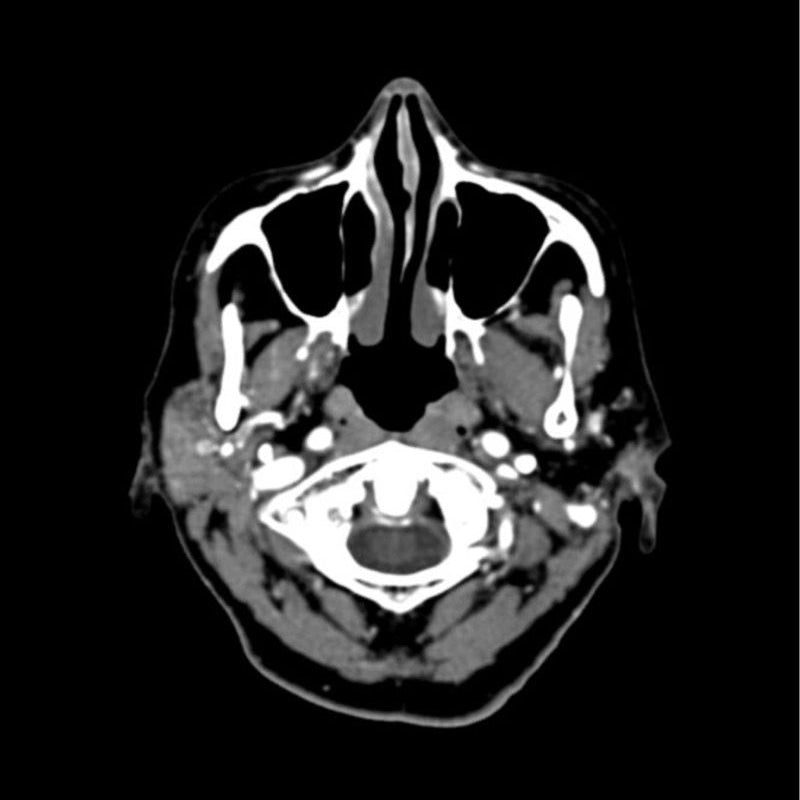

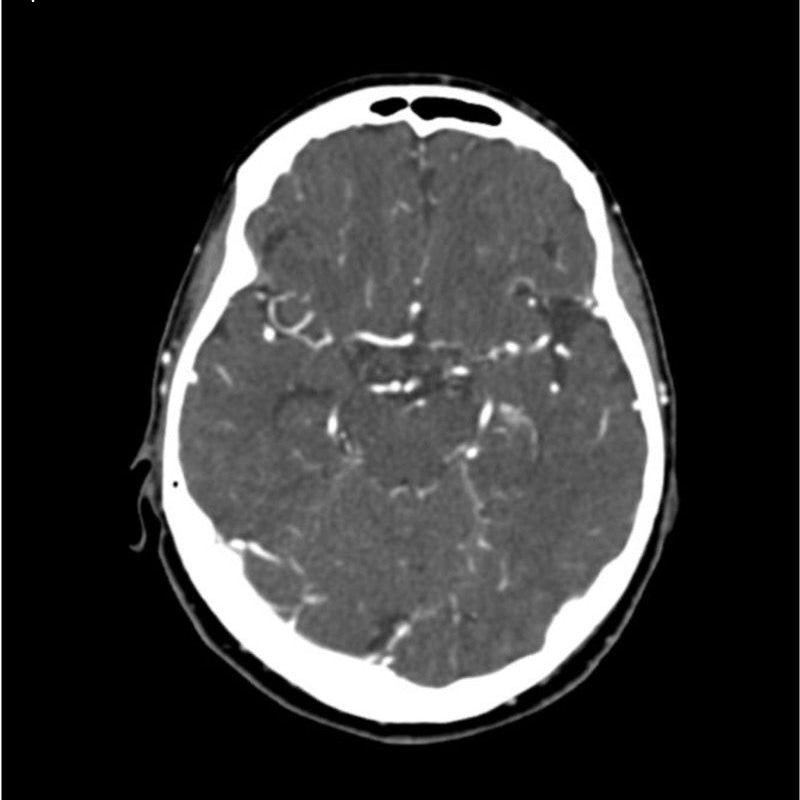

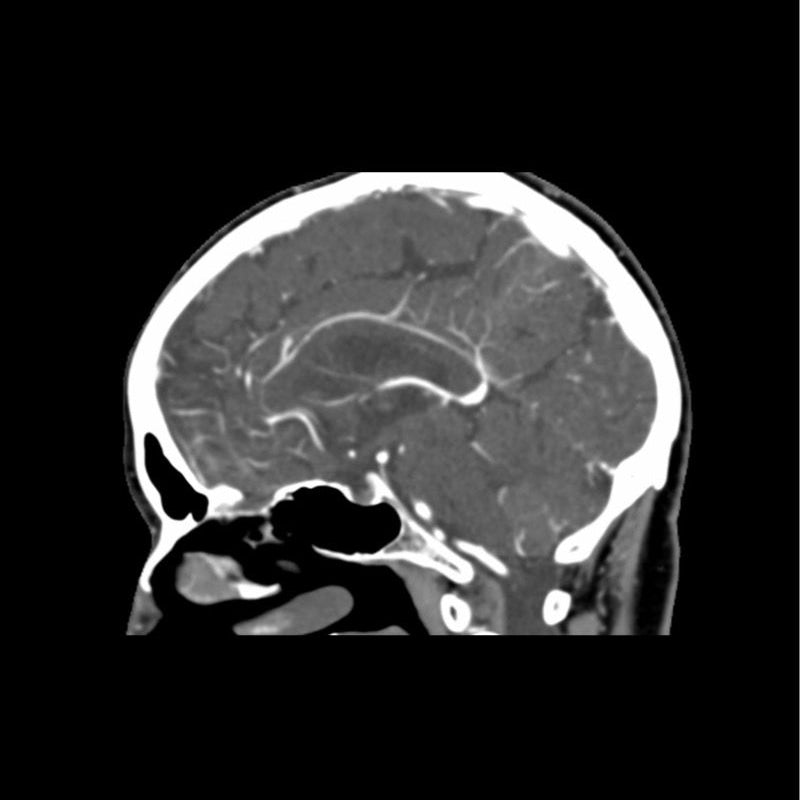

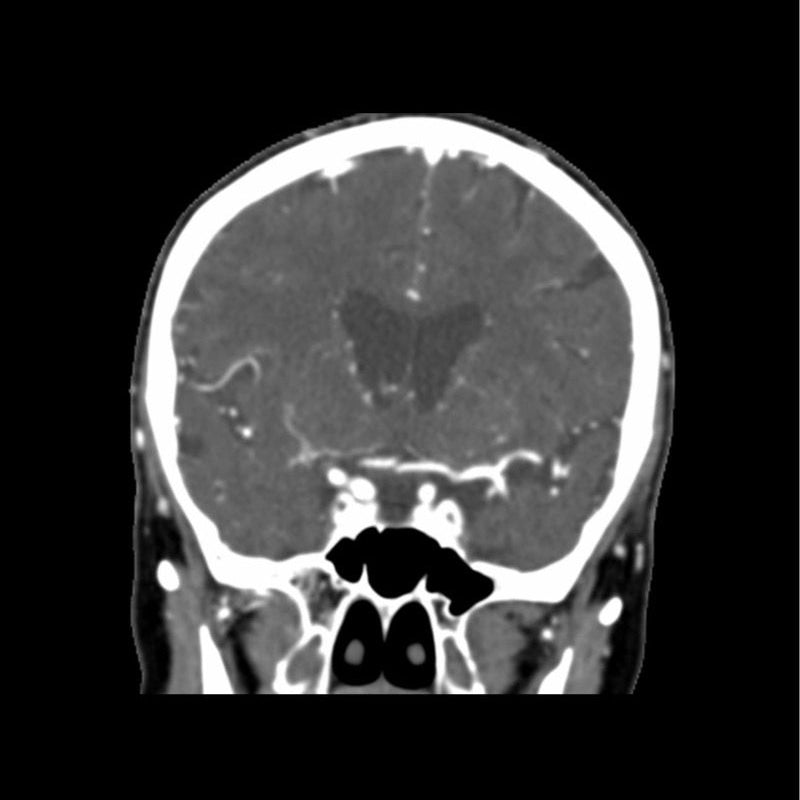

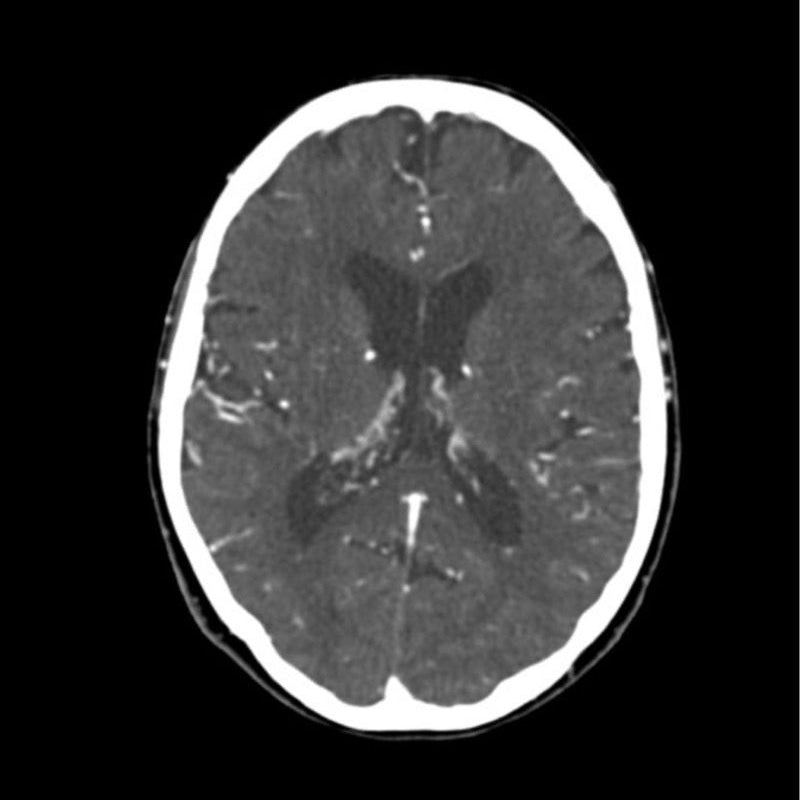

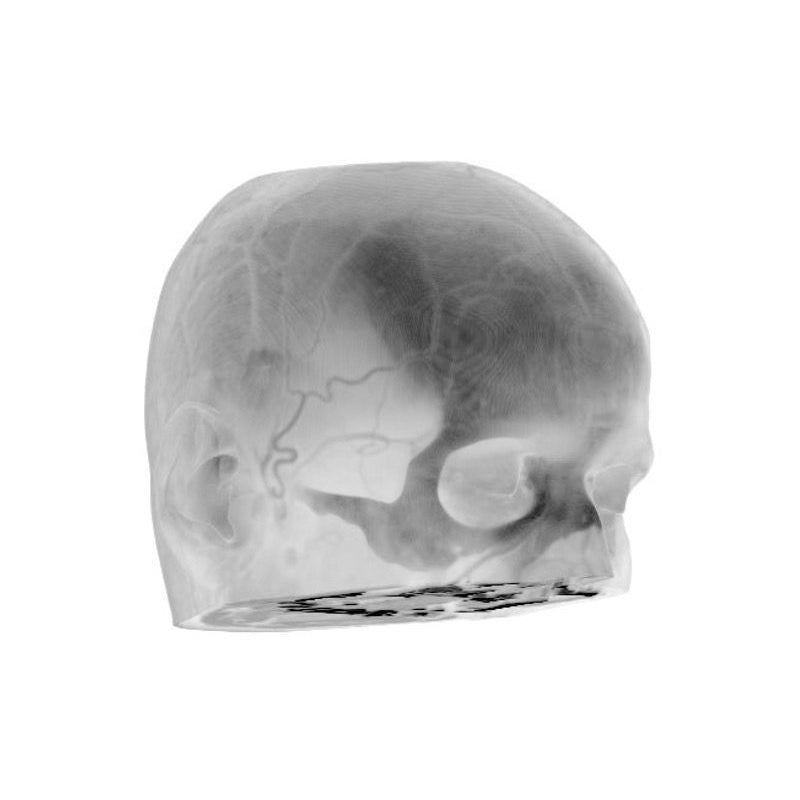

The phantom provides a detailed and realistic simulation of vascular structures, soft and bone tissue, including small details such as lymph nodes. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.

SPECIFICATIONS:

• Size: Approx. 16 x 19 x 15 cm
• Weight: Approx. 2.4 kg
• Base material: Cellulose-polymer composite
• Optimal tube voltage: 120 kVp (adaptable upon request)

DIAGNOSTIC FEATURES:

Realistic simulation of head vessels up to the first cervical vertebra, bone and soft tissues.

Download:

Made by PhantomX and sold by GTSimulators.

GTSimulators by Global Technologies
PhantomX Authorized Dealer
