For a limited time, all Merlin Ultra HD purchases over $3000 will receive a FREE Ruby Magnifier!
Retail value $495. Offer expires on August 31, 2025.

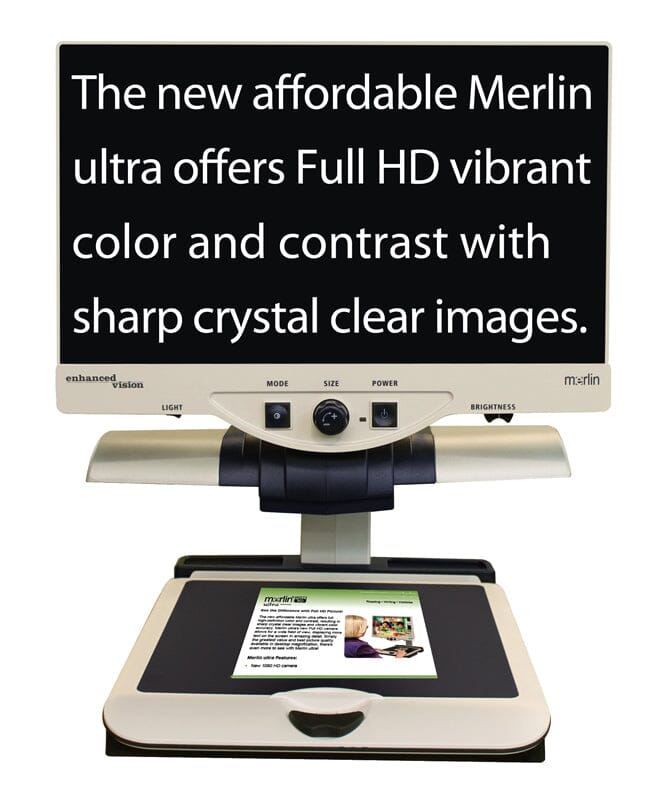

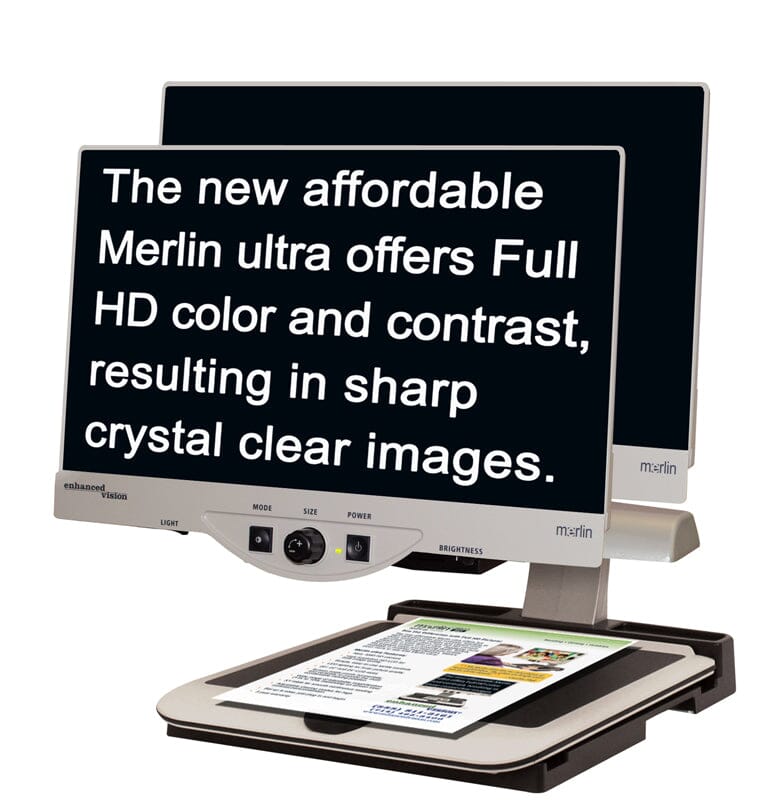

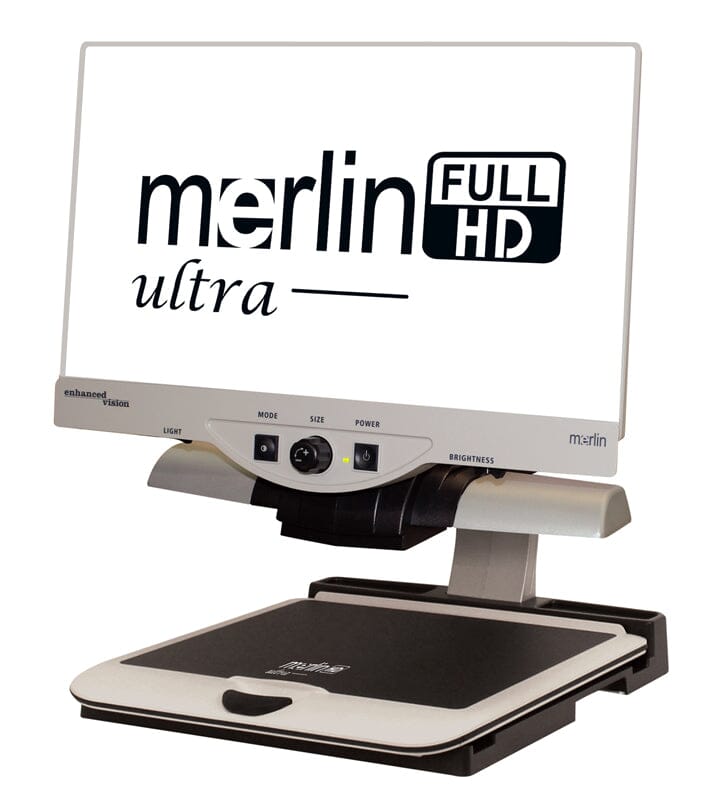

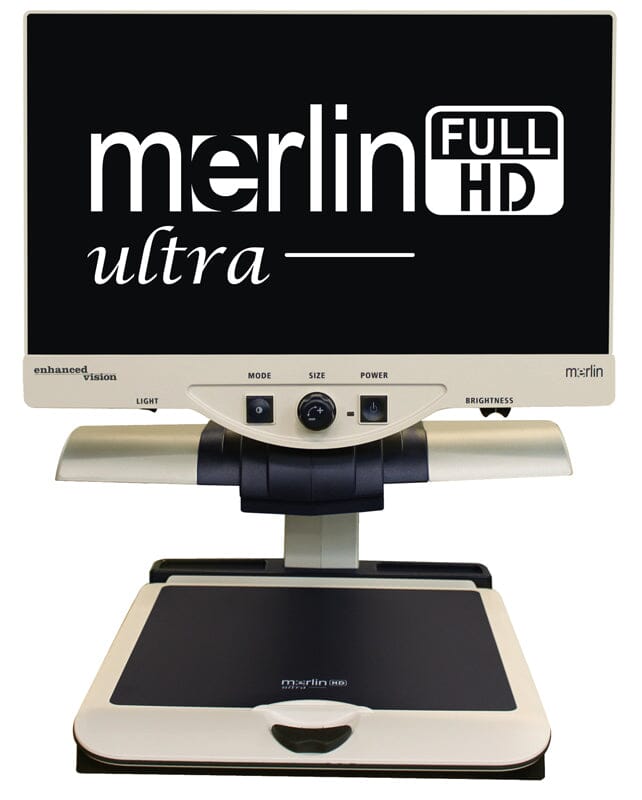

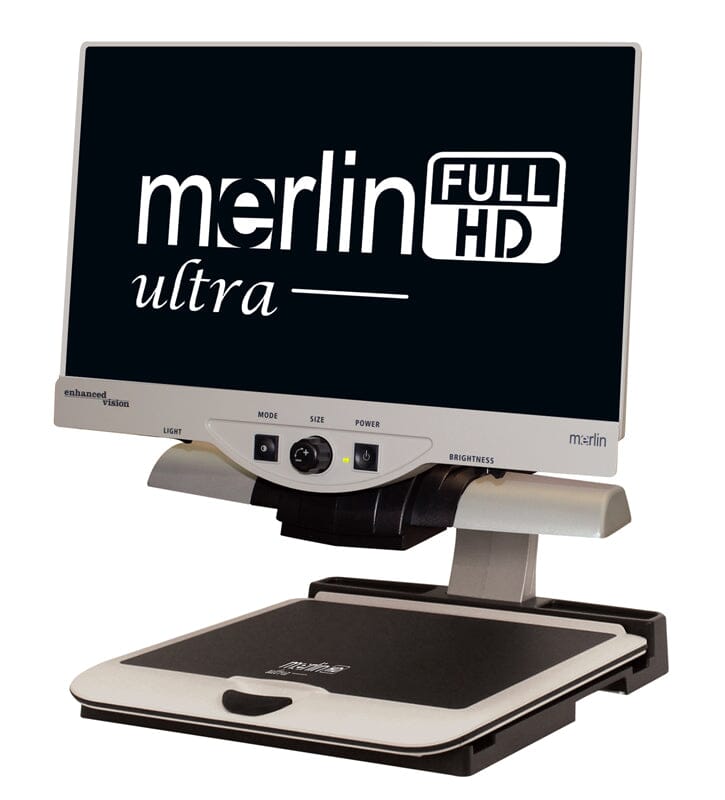

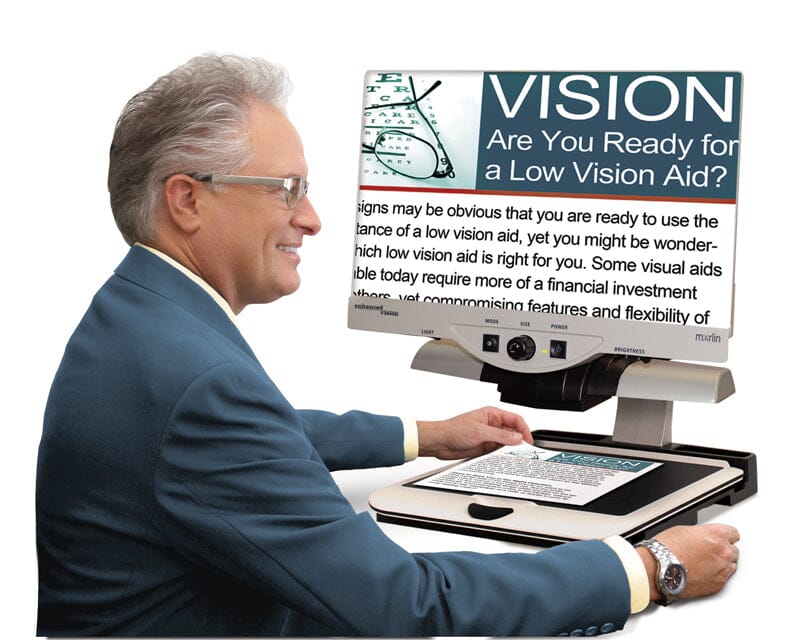

Merlin ultra delivers full high-definition colour and contrast, for sharp and clear images and vibrant colour accuracy.
The Full HD camera has a wide field of view, displaying text in amazing detail. The best value and picture quality available in HD desktop magnification.

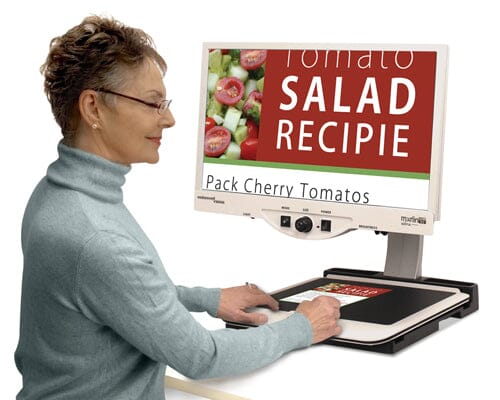

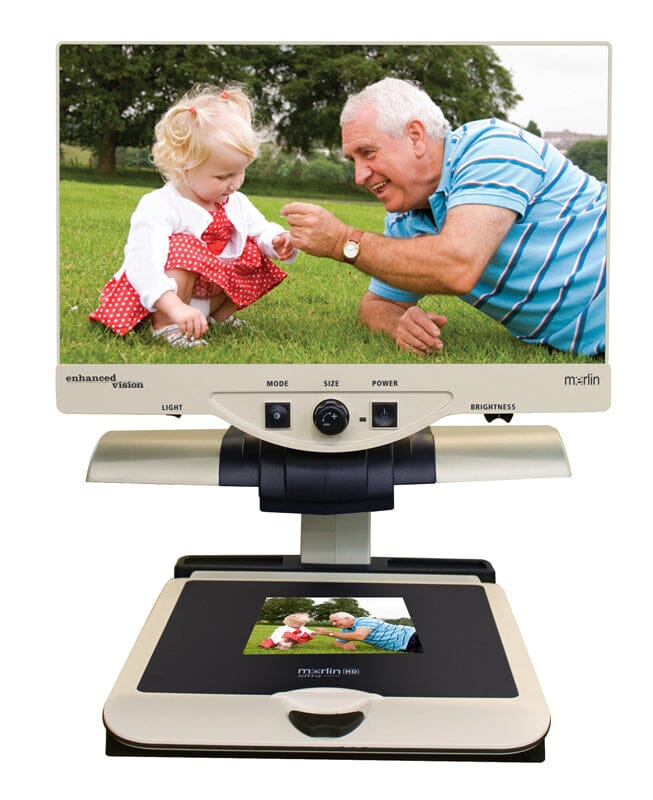

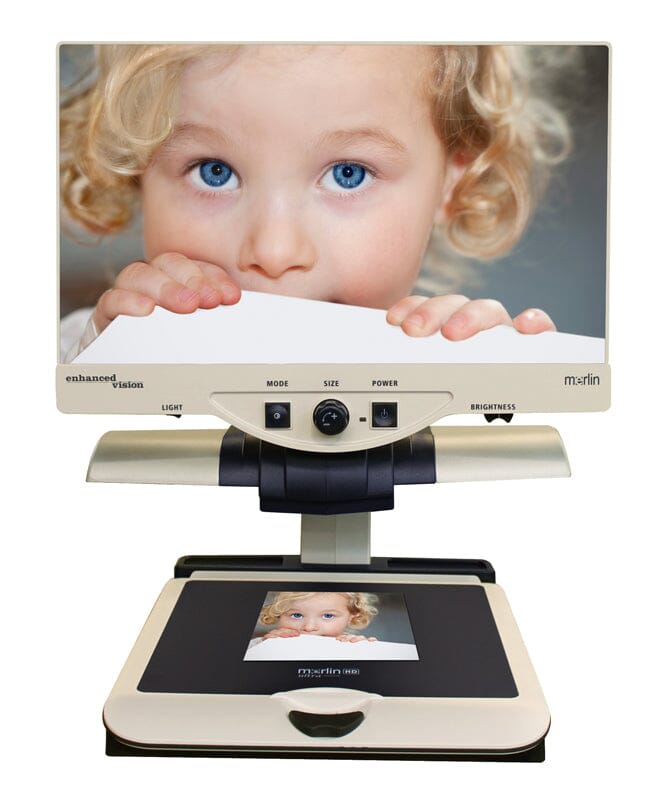

Easily read books and magazines, read and write letters, manage school materials, view colour photos, do crossword puzzles, and even pursue a favorite hobby.
Features
- Full HD camera
- 1920 x 1080 resolution
- High resolution HD LCD for best image quality
- Wide field of view
- Simple, easy-to-use tactile controls
- LED lighting for truer picture quality
- Wide range of adjustable magnification (2.2x to 73x depending on screen size & zoom table selected)
- Adjustable viewing modes for high contrast personalization
- XY table for smooth continuous reading with a user friendly lock mechanism
- Computer compatible – toggle between CCTV and computer (Additional hardware may be required)
- Set up is easy, just plug in and begin
Colour Select Feature
![]()

With Merlin ultra’s low vision electronic magnifiers, many colour select options are available for increased contrast. Depending on your eye condition, certain text and background colour combinations allow for ease of reading. All Enhanced Vision solutions incorporate 2 to 7 colour select options. One of the colour select options is black and white. It will convert anything you are viewing to a black and white image for increased contrast.
Technical Specifications
General |
|
Screen | LCD 22” or 24” |
Measures | 61H (MAX) x 51W x 51D cm (24” H x 20” W x 20” D) |
Operating temperature range | 50-104°F (10-40°C) |
Storage temperature range | 32-122°F (0-50°C) |
Monitor |
|
Resolution | 1920 x 1080 |
Response rate | 5 milliseconds |
Contrast ratio | > 1000:1 |
Colour depth | Over 16 million Colours |
Control | Light Switch On/Off, Brightness, Magnification, Mode, Power |
Magnification *Zoom range is based on a 16:9 aspect ratio and subject to change |
|
22” LCD | 2.2x to 67x |
24” LCD | 2.4x to 73x |
Power Supply: 110V-240 VAC 50-60HZ 5VDC 4.0A |
|
Equipment Classification (IEC 601-1) |
|
Type of protection | Class 1 |
Degree of protection | Type B |
Mode of operation | Continuous |
Colour modes |
|
4 default modes | True Color, Black & White, Enhanced Positive, Enhanced Negative |
5 colour select modes | 3 Default Modes: Yellow on Blue, Black on Yellow, Yellow on Black 2 Programmable Modes *Up to 28 Color Select Mode Combinations are available |
XY table |
|
XY table size | 40.6 cm x 41.3 cm (16” x 16 1/4”) 0.95 cm (3/8”) retaining edge |
Working space height | 18.7 cm (7 3/8”) |
Table height clearance | 3.5cm (1 3/8”) |
Video output Resolution on LCD | SMPTE 296M – HD 720p 60/50 SMPTE 292M – HD 1080i 60/50 |
Accessories
- Power Supply & “Y” Power Cord
- Owner’s Manual & Quick Start Guide
