Guideless, Fast, Accurate: Your Biometric Choice for Universal Registration
Features
- Palm vein biometric authentication
- Reduced exposure times for faster, blur-free capturing of palm
- Increased frame rate to easily capture slowly moving palms

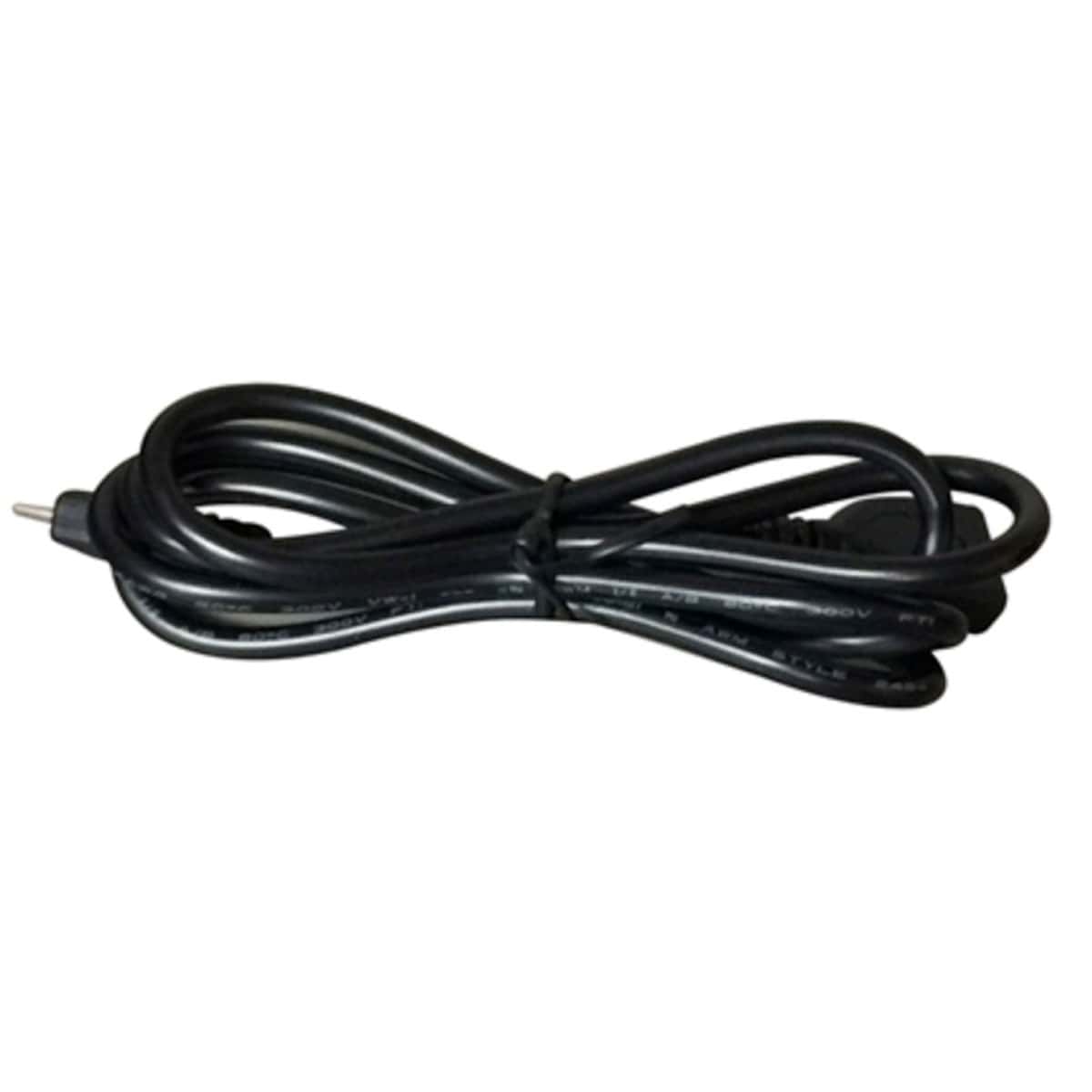

- Standard USB connection (2 meter cable included)
- Improved tolerance under ambient sunlight
- Fully backward compatible with legacy applications

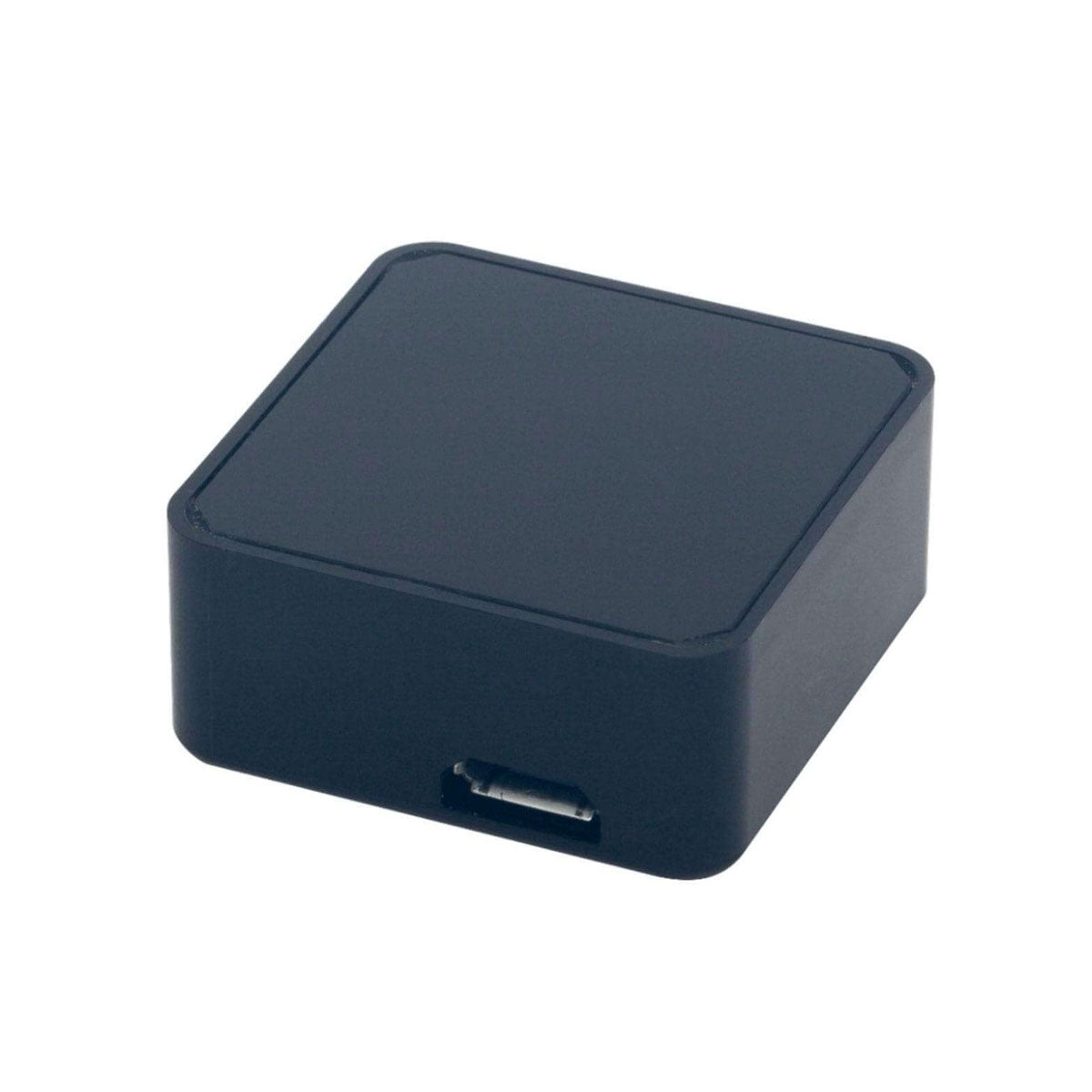

- F-Pro+ sensor is 30% smaller than legacy sensors
- Powered by Fujitsu's award-winning PalmSecure technology, which has never failed to successfully enroll a user
No More Need for a Hand Guide
Introducing the PalmSecure F-Pro+, featuring a revolutionary Guideless User Interface (GUI) designed for optimal hand placement. The PalmSecure F-Pro+ offers a wider capturing range, and a more user-friendly GUI compared to its predecessors, the PalmSecure-F Pro and PalmSecure-F Light. The improved PalmSecure F-Pro+ can now provide a deeper level of user feedback. This advanced technology eliminates the need for a hand guide, making the PalmSecure F-Pro+ completely guideless for both Enrollment and Identification.
Fully Backwards Compatible
The PalmSecure F-Pro+ is designed with full compatibility in mind. It seamlessly integrates with existing PalmSecure-F Pro and PalmSecure-F Light systems. Applications that are already using PalmSecure-F Pro or PalmSecure-F Light can easily transition to the new PalmSecure F-Pro+ without any compatibility issues.
Legacy applications wishing to update their UI to utilize the Guideless features can download the latest version of the V34 SDK and sample applications.
Fast, Small and Accurate User Authentication
The PalmSecure F-Pro+ delivers quick, reliable biometric authentication to enhance access control across various industries. Its compact design, faster capture speeds, and improved performance under ambient sunlight ensure seamless operation in even the most demanding environments.
How It Works
Simply place your palm 2 inches above the sensor. The device captures a near-infrared image of your unique palm vein pattern in less than 1 second. The captured image is encrypted and converted into a biometric template using Fujitsu's advanced algorithm. The algorithm compares templates and confirms identity through an unmatched level of accuracy.
The F-Pro sensor is the ideal desktop device to replace traditional passwords and prevent the use of shared, stolen or faked ID credentials in logical access applications, including employee network access (single sign-on), bank teller authentication, patient and healthcare provider authentication, and point of sale (POS) transactions.
Tech Specs
| Reading system | Reading by near-infrared light |
| Scope of capture | Entire palm |
| Capturing distance | 40 to 60mm (Enrollment)
35 to 70mm (Authentication) |
| Dimensions | Width 29 x Depth 29 x Height 13mm |
| Weight | Below 12 g |
| Voltage of Power supply | 4.4 to 5.4 V |
| Current consumption | 500 mA (Max at normal-power mode) 900 mA (Max at high-power mode) |
| Power saving mode | 50 mA (Max) |
| Power consumption | 2.5 W (Max at normal-power mode)
4.5 W (Max at high-power mode) |
| Power source | Provided by the USB Interface cable |
| Host interface | Cable Length included 1 m
Max length supported is 4 m |
| Interface connector | Series "Micro-B" plug (with 5 pins) |
| Installation angle | Full direction |
| Temperature | -40 to 85 degrees Celsius |
| Humidity | 20 to 90%RH |
| Material of the surface of Sensor unit | Glass |
| Encryption method | AES (Length of cryptography key more than 128 bit) |
| Authentication rate | FRR: 1.00% (no retry)
FAR: Below 0.00001% |
| Electro magnetic wave standard | VCCI ClassB, FCC ClassB, EN ClassB |
| Safety Standard | UL60950-1, EN60950-1 |
| Environmental Regulation | Conforms to RoHS and WEEE |
| Warranty | 1 Year |
