Guideless, Fast, Accurate: The Preferred Biometric Solution for Universal Registration

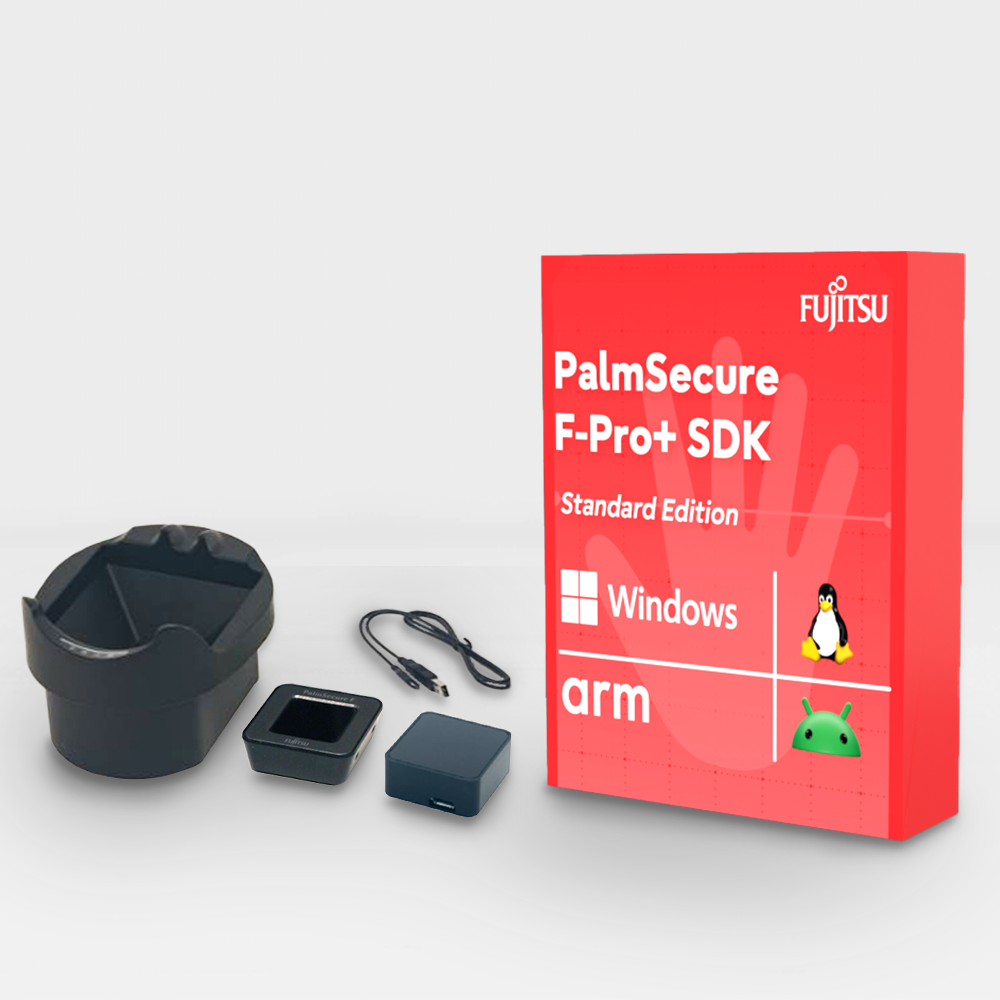

What's included
- 1 Fujitsu PalmSecure F-Pro+ SDK
- Access to our PalmSecure SDK for Windows, Linux, ARM, and Android
- Client-side licenses for development
- 1 Fujitsu PalmSecure F-Pro+ Standard sensor
- 1 Fujitsu PalmSecure F-Pro+ sensor
- 1 Fujitsu PalmSecure F-Pro U-Guide
Features
- Palm vein biometric authentication
- Reduced exposure times for faster, blur-free capturing of palm
- Increased frame rate to easily capture slowly moving palms
- Standard USB connection (2 meter cable included)
- Improved tolerance under ambient sunlight
- Fully backward compatible with legacy applications
- F-Pro+ sensor is 30% smaller than legacy sensors
- Powered by Fujitsu's award-winning PalmSecure technology, which has never failed to successfully enroll a user
Say Goodbye to Hand Guides
Meet the Fujitsu PalmSecure F-Pro+, featuring a revolutionary Guideless User Interface (GUI) designed to make optimal hand placement easier than ever. Featuring a wider capture range and a more intuitive GUI than its predecessors, the PalmSecure-F Pro and PalmSecure-F Light, the F-Pro+ provides a deeper level of user feedback for a smoother experience. This advanced technology eliminates the need for a hand guide, making biometric Enrollment and Identification truly guideless.
Fully Backwards Compatible
The PalmSecure F-Pro+ is fully backwards compatible, effortlessly integrating with existing PalmSecure-F Pro and PalmSecure-F Light systems. Applications that are already using PalmSecure-F Pro or PalmSecure-F Light can easily transition to the new PalmSecure F-Pro+ with zero compatibility issues.In fact, the F-Pro+ can be added to an existing environment and coexist with F-Pro sensors without any modifications or re-enrollment of data. Simply plug in the F-Pro+ and choose between the new features of Enhancement Mode or the familiar operation of Compatible Mode (the default setting), making the transition incredibly straightforward.
Legacy applications wishing to update their UI to utilize the Guideless features can download the latest version of the V34 SDK and sample applications.
Fast, Small and Accurate User Authentication
The PalmSecure F-Pro+ delivers quick, reliable biometric authentication to enhance access control across various industries. Its compact design, faster capture speeds, and improved performance under ambient sunlight ensure seamless operation in even the most demanding environments.
How It Works
Simply place your palm 2 inches above the sensor. The device captures a near-infrared image of your unique palm vein pattern in less than 1 second. The captured image is encrypted and converted into a biometric template using Fujitsu's advanced algorithm. The algorithm compares templates and confirms identity through an unmatched level of accuracy.
The F-Pro+ sensor is the ideal desktop device to replace traditional passwords and prevent the use of shared, stolen or faked ID credentials in logical access applications, including employee network access (single sign-on), bank teller authentication, patient and healthcare provider authentication, and point of sale (POS) transactions.
Tech Specs
| Reading system | Reading by near-infrared light |
| Scope of capture | Entire palm |
| Capturing distance | 40 to 60mm (Enrollment)
35 to 70mm (Authentication) |
| Dimensions | Width 29 x Depth 29 x Height 13mm |
| Weight | Below 12 g |
| Voltage of Power supply | 4.4 to 5.4 V |
| Current consumption | 500 mA (Max at normal-power mode) 900 mA (Max at high-power mode) |
| Power saving mode | 50 mA (Max) |
| Power consumption | 2.5 W (Max at normal-power mode)
4.5 W (Max at high-power mode) |
| Power source | Provided by the USB Interface cable |
| Host interface | Cable Length included 1 m
Max length supported is 4 m |
| Interface connector | Series "Micro-B" plug (with 5 pins) |
| Installation angle | Full direction |
| Temperature | -40 to 85 degrees Celsius |
| Humidity | 20 to 90%RH |
| Material of the surface of Sensor unit | Glass |
| Encryption method | AES (Length of cryptography key more than 128 bit) |
| Authentication rate | FRR: 1.00% (no retry)
FAR: Below 0.00001% |
| Electro magnetic wave standard | VCCI ClassB, FCC ClassB, EN ClassB |
| Safety Standard | UL60950-1, EN60950-1 |
| Environmental Regulation | Conforms to RoHS and WEEE |
| Warranty | 1 Year |
